Case studies
Specifications
: 6,3 kV; 2500 A
Delivery date
: 15.08.2022
Destination
: Polsko
I want similar solution
Challenge
The customer required a solution that respected the specific generator arrangement, where:
- both the power and neutral terminals are located on one side of the machine,
- a common terminal box for power and neutral must be installed on a single foundation,
- the interconnection between the power and neutral sections has a very limited length of approximately 750 mm,
- the connection of customer cables must be implemented via drilled cable glands and busbars with pre-drilled holes.
Emphasis was placed on precise mechanical execution, low contact resistance, and a clear arrangement of current paths.
IVEP Solution

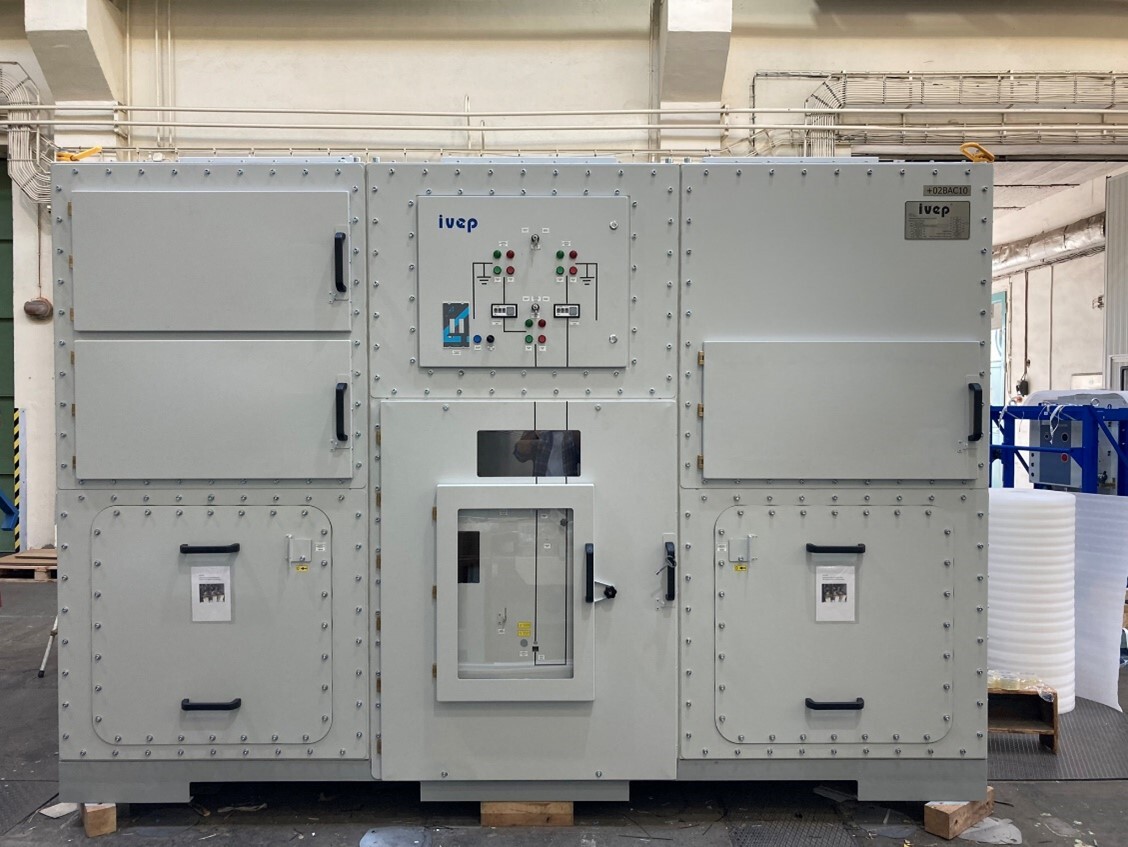

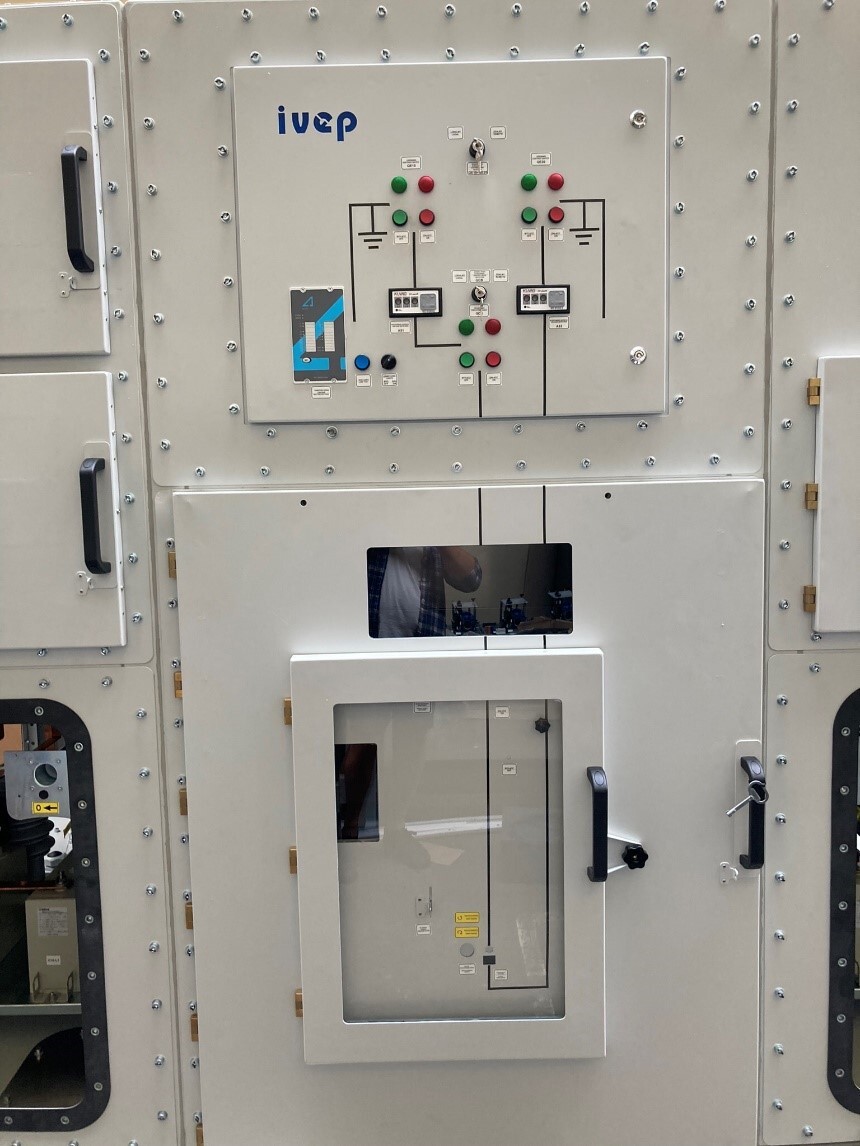

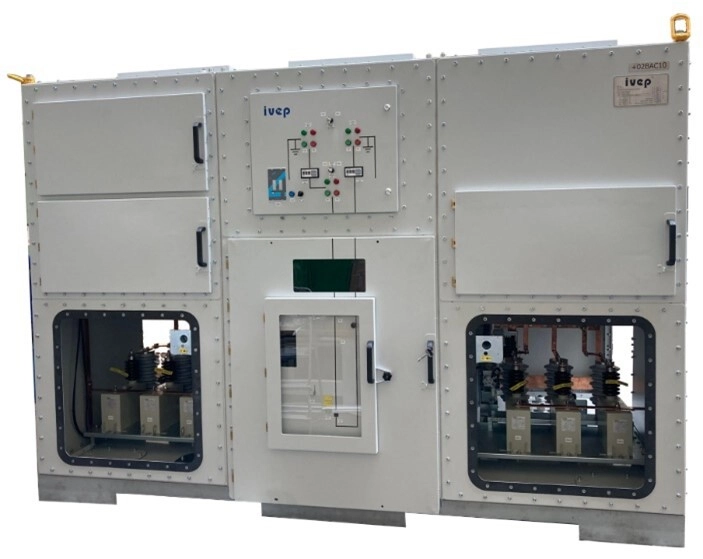

IVEP designed and delivered a combined terminal box MTB + N, which:
- integrates generator power output and neutral point connection into a single compact unit,
- is mechanically adapted for installation on a concrete foundation next to the generator,
- uses drilled entry plates for safe and flexible cable connections,
- includes a sufficient number of pre-drilled busbars for easy connection of customer cables,
- allows short and clearly arranged interconnections between the power and neutral sections.
The design was optimized to minimize the length of current paths while allowing easy on-site installation.
Result
- Compact and mechanically precise solution in a confined space near the generator
- Easy and safe connection of both power and neutral cables
- Minimization of contact resistance and losses
- Clear layout suitable for long-term operation
IVEP Added Value
This project confirms IVEP’s ability to:
- design terminal boxes precisely tailored to the mechanical layout of the generator,
- handle short current interconnections with high current loads,
- deliver compact combined solutions for power generation and combustion-based facilities.
