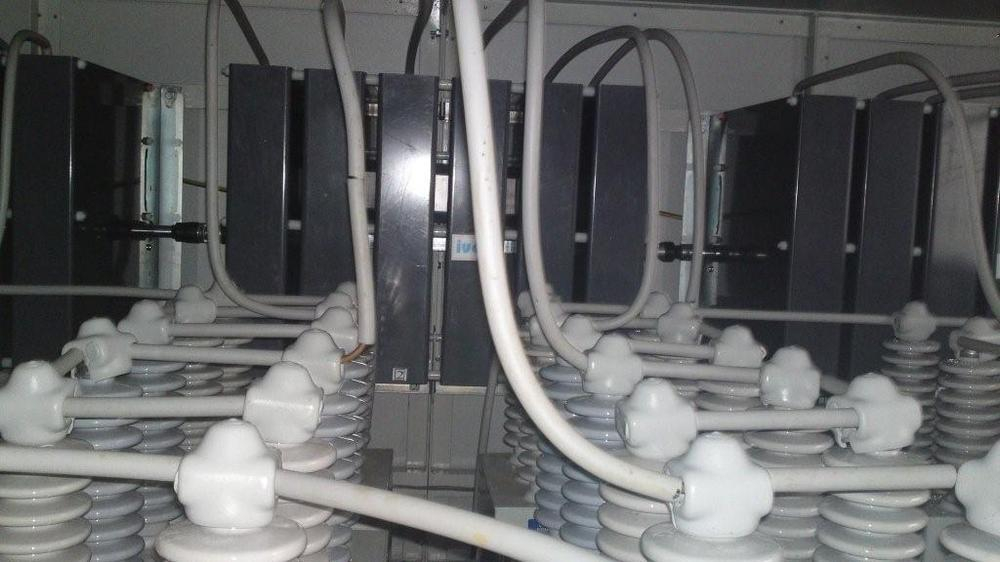

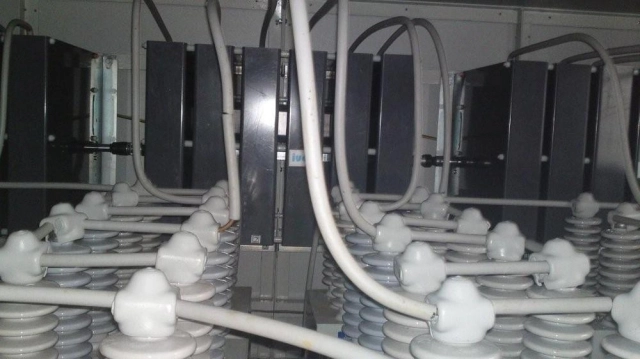

Indoor disconnectors, loadbreak and earthing switches

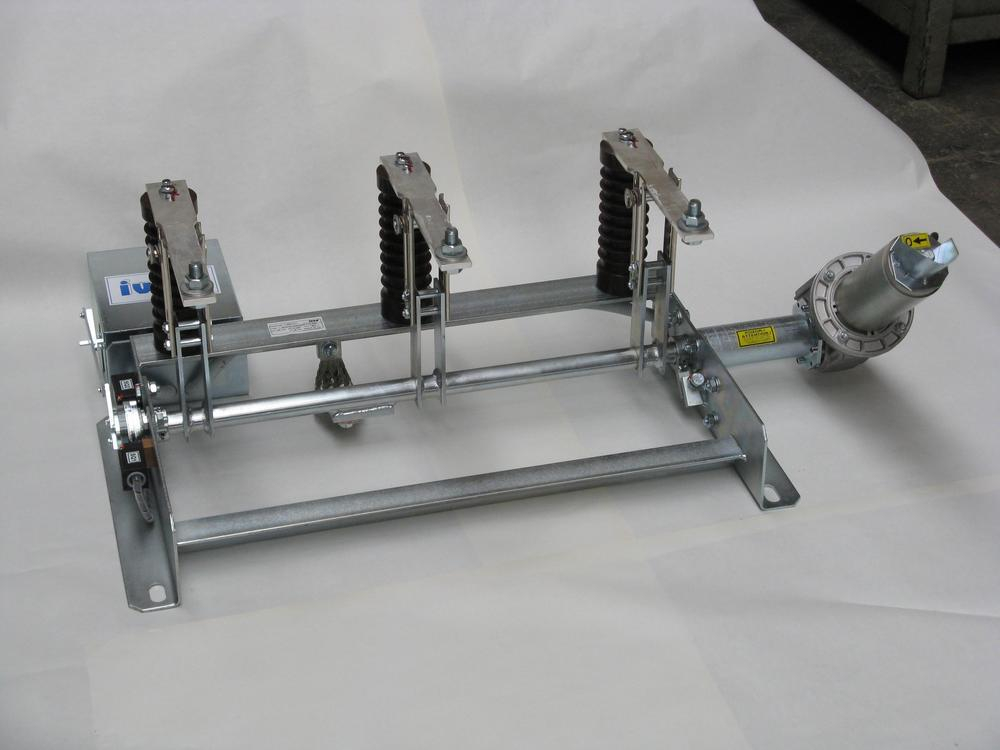

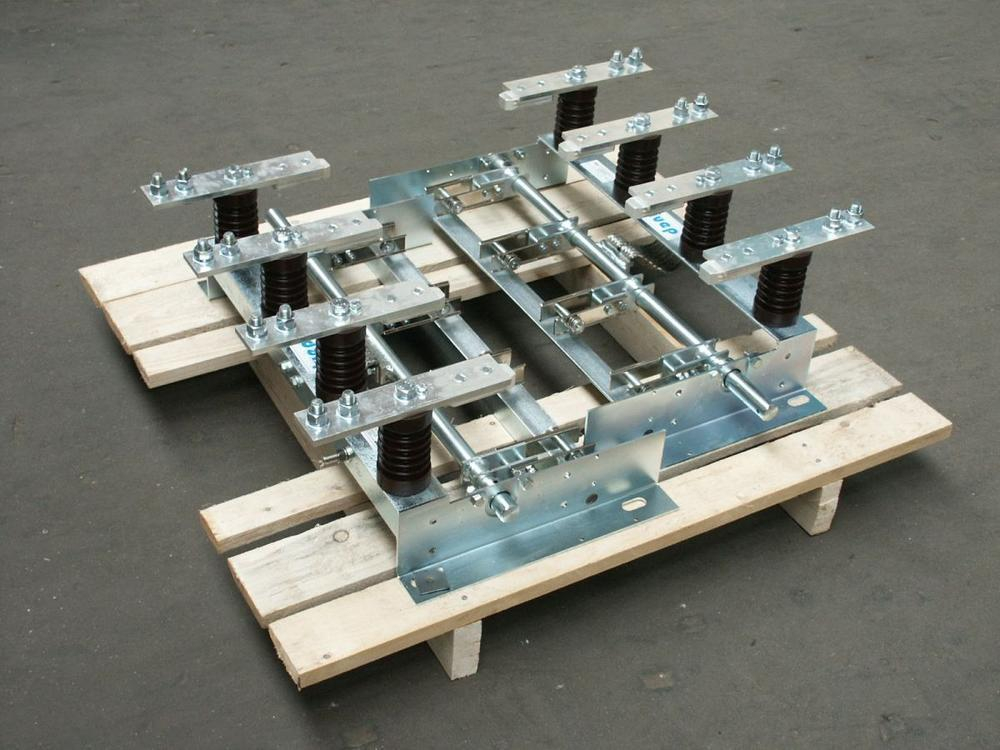

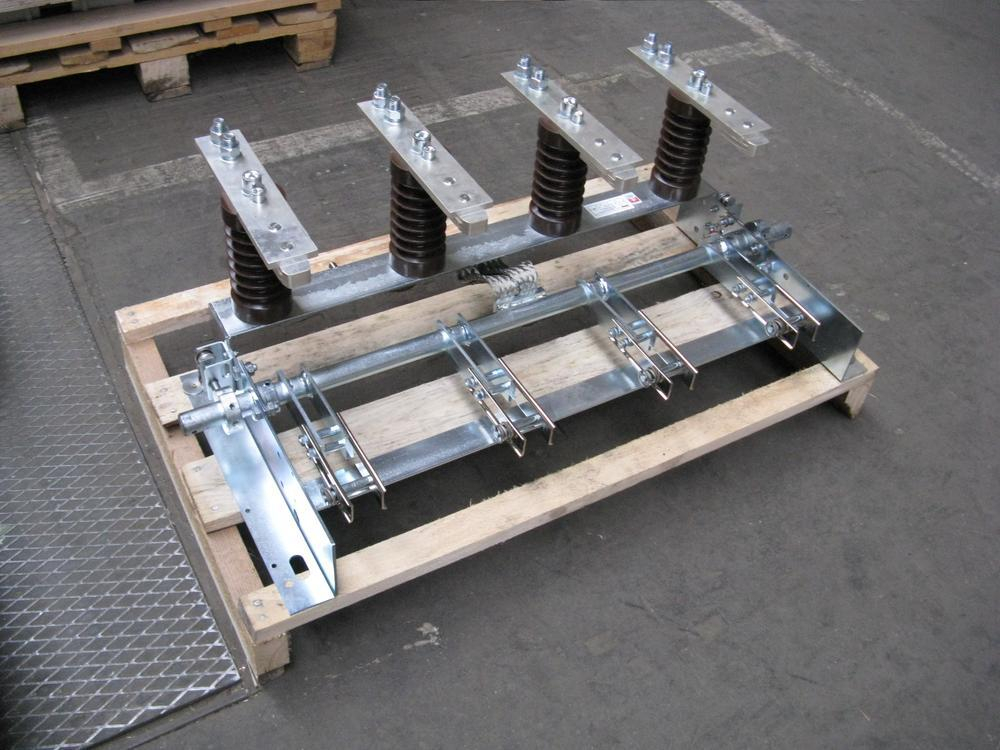

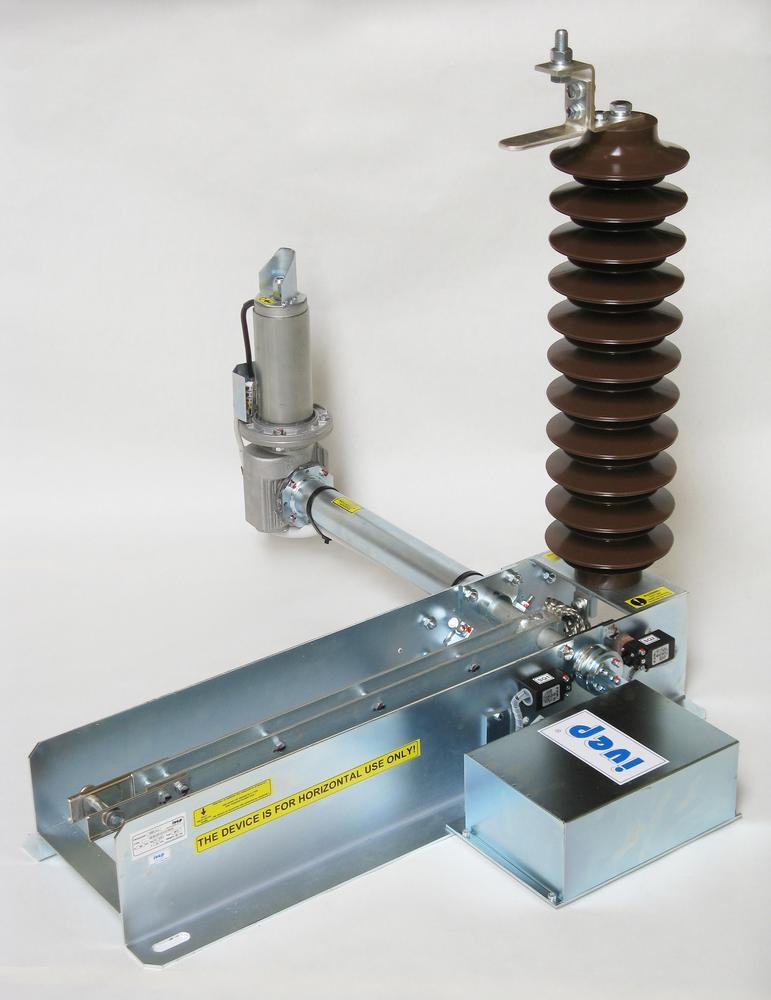

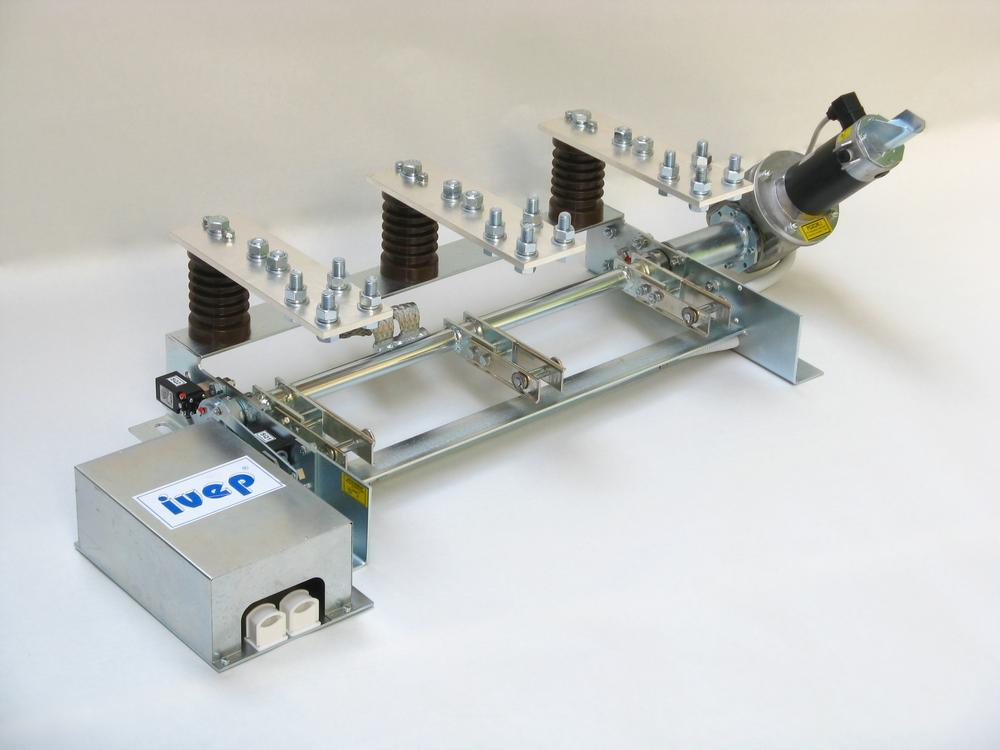

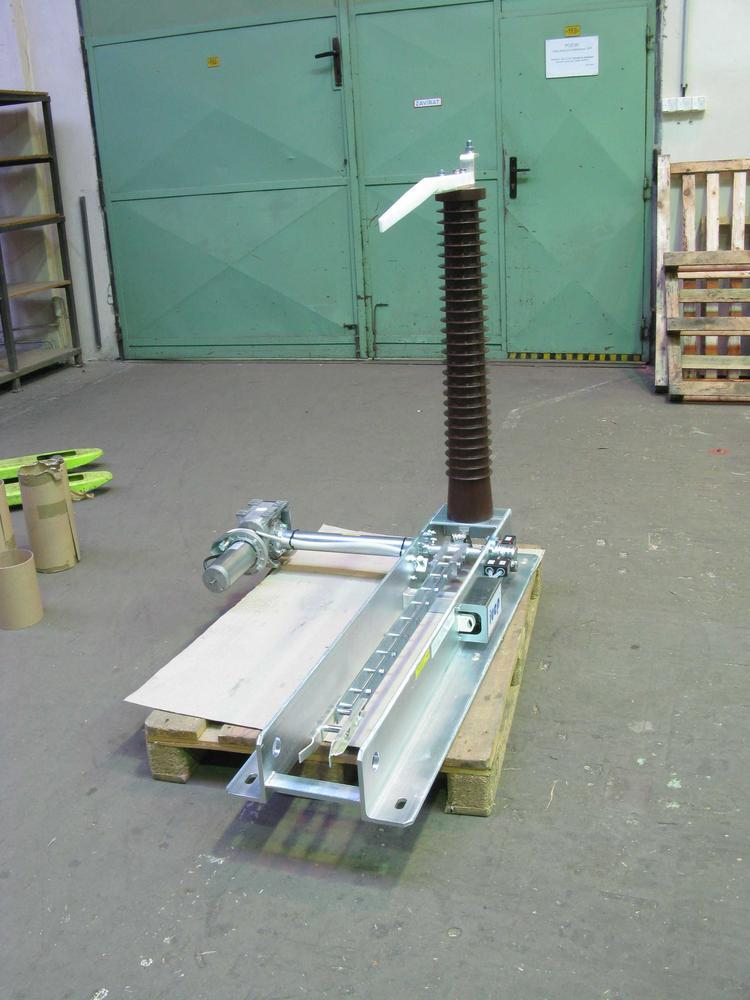

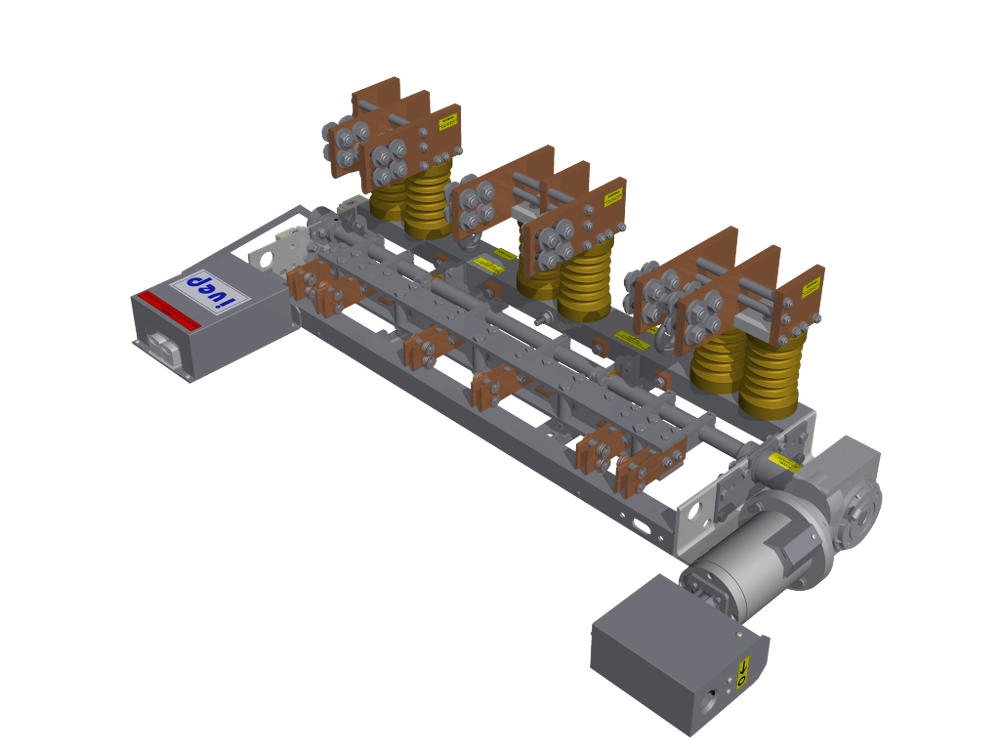

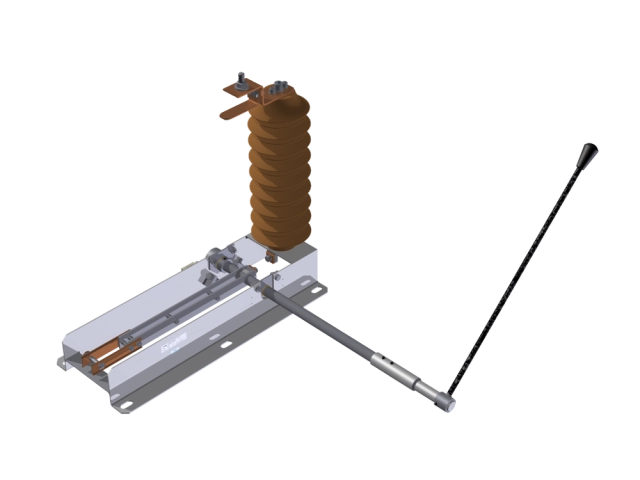

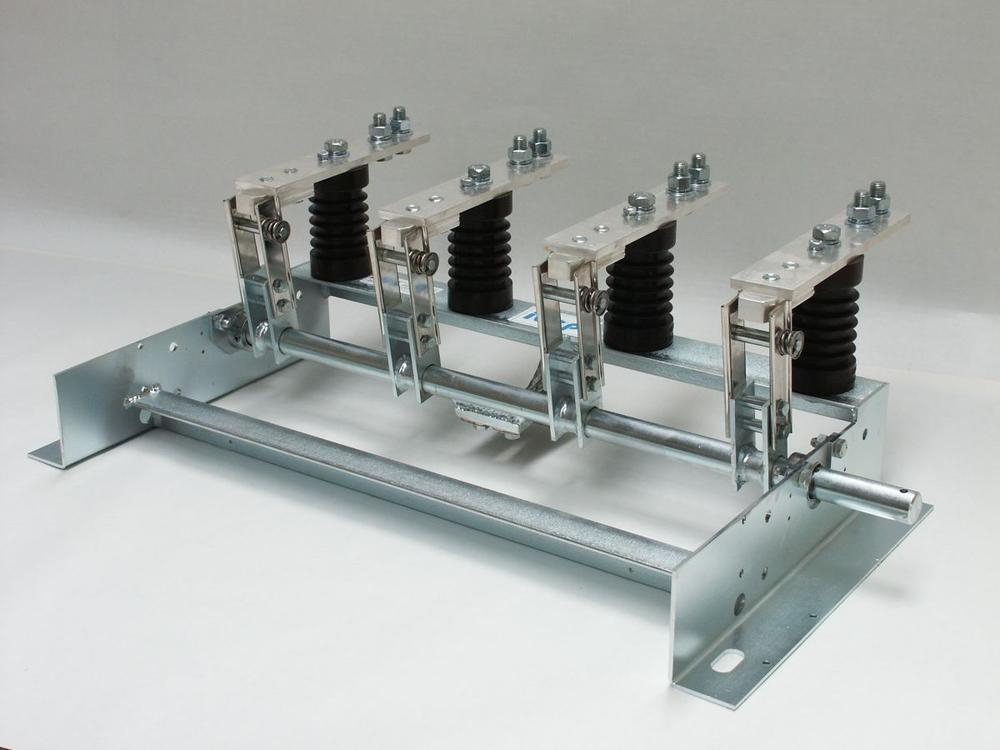

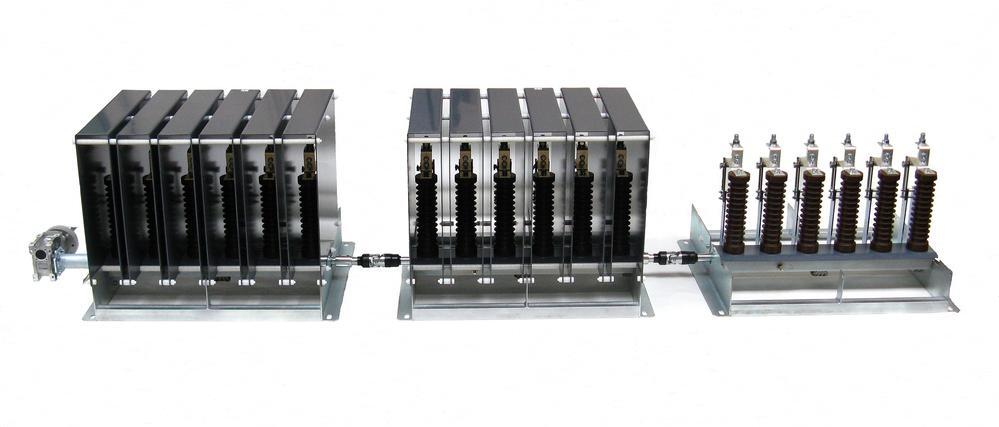

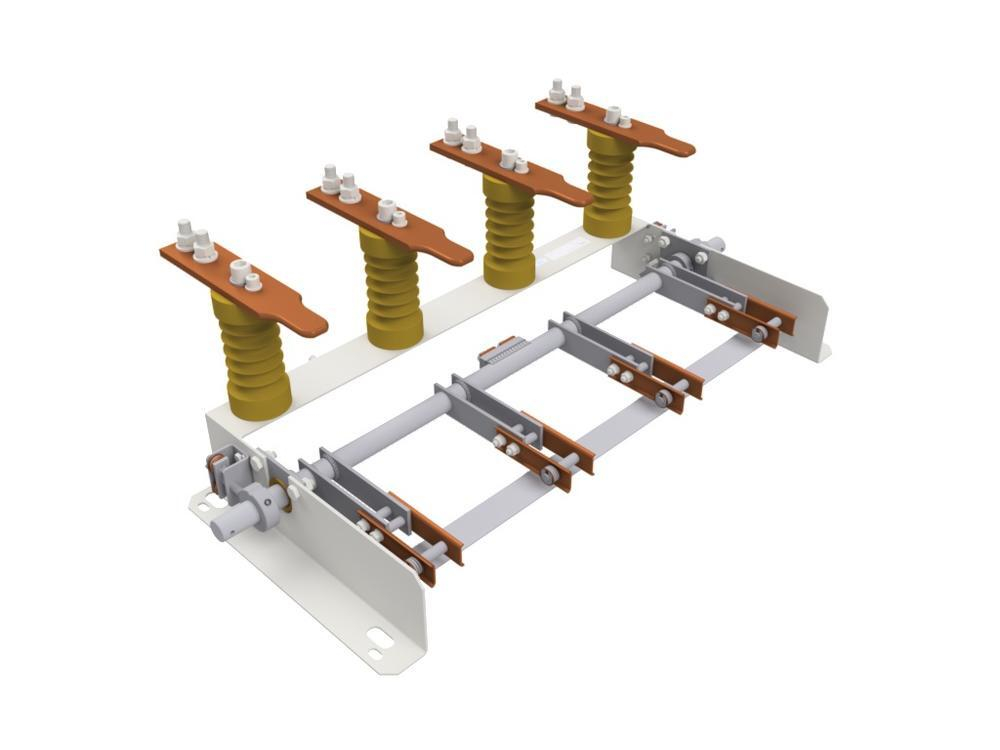

Earthing switches QZ

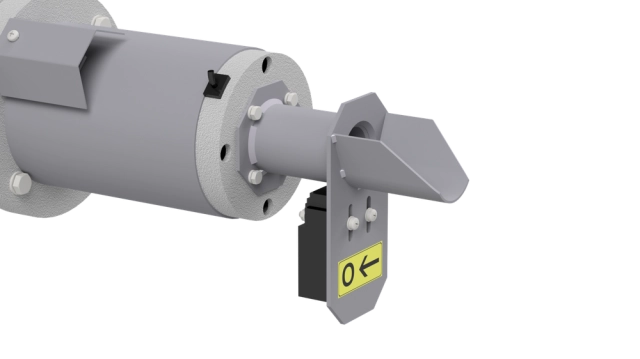

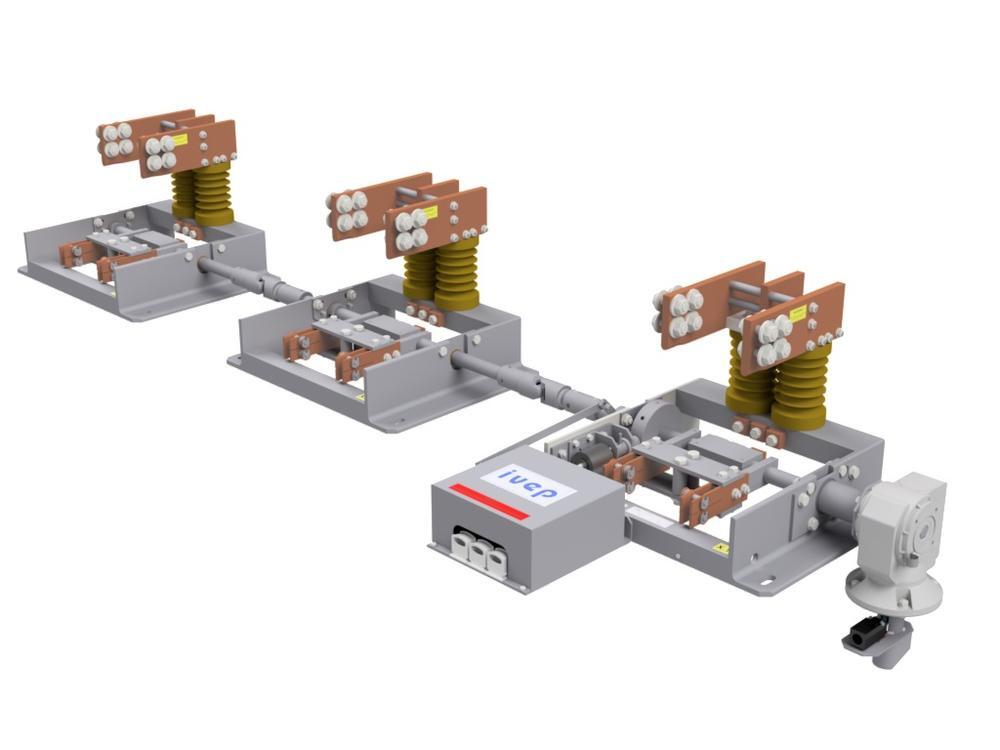

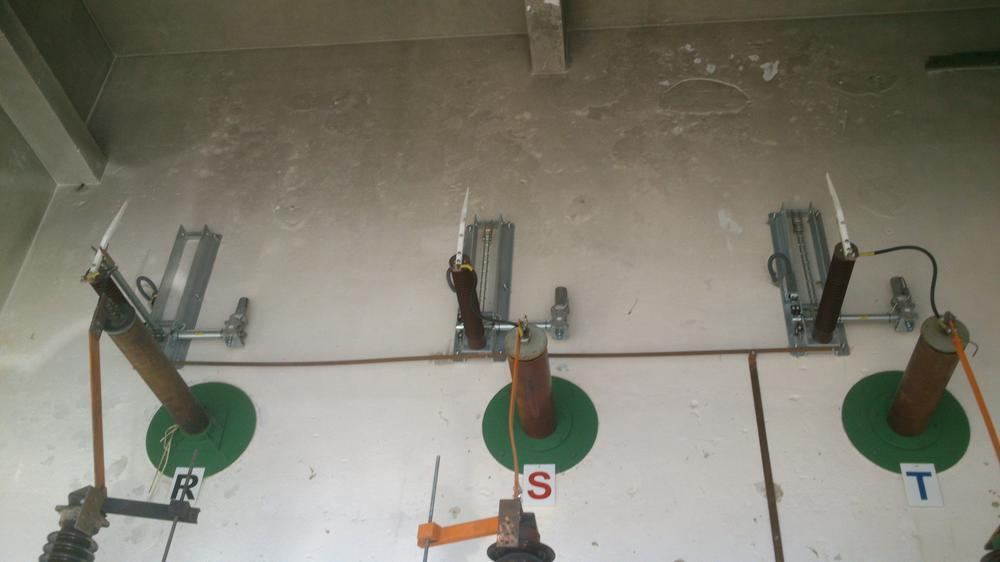

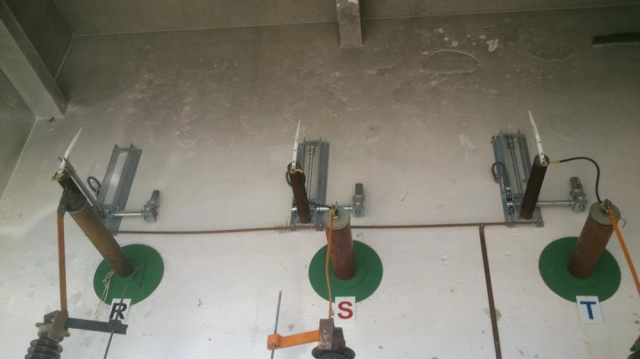

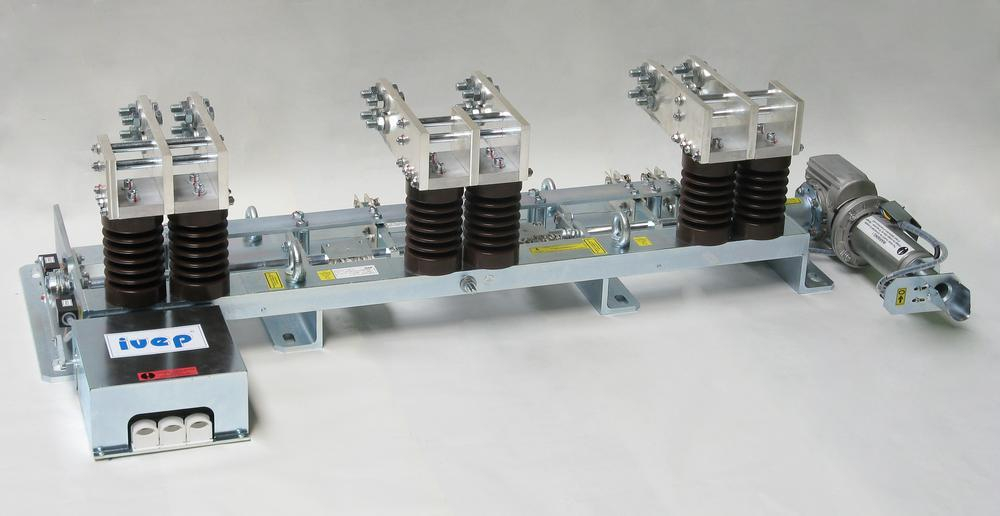

This switching device is used for the grounding of electric circuits without voltage, in some cases is possible to use them for discharging of capacitors or capacity current of the cable/grid. This devices are intended to use for the MV switchgears cabinets or in MV switching stations. The earthing switch can be either of electric motor drives or hand operated type, with manual actuation of the electrical drives.

Request product
Download 3D model

    Technical information

  • Rated voltage
    1 – 123 kV
  • Rated shorttime current 1s (3s)
    16 – 120 kA
  • Rated dynamic current
    40 – 300 kA
  • Rated frequency
    50 Hz (16 Hz, 60 Hz)
  • Mechanical endurance
    2000, 5000, 10000 (60000) C-O
  • Minimum lifetime (years)
    40
  • Electric class endurance
    E0

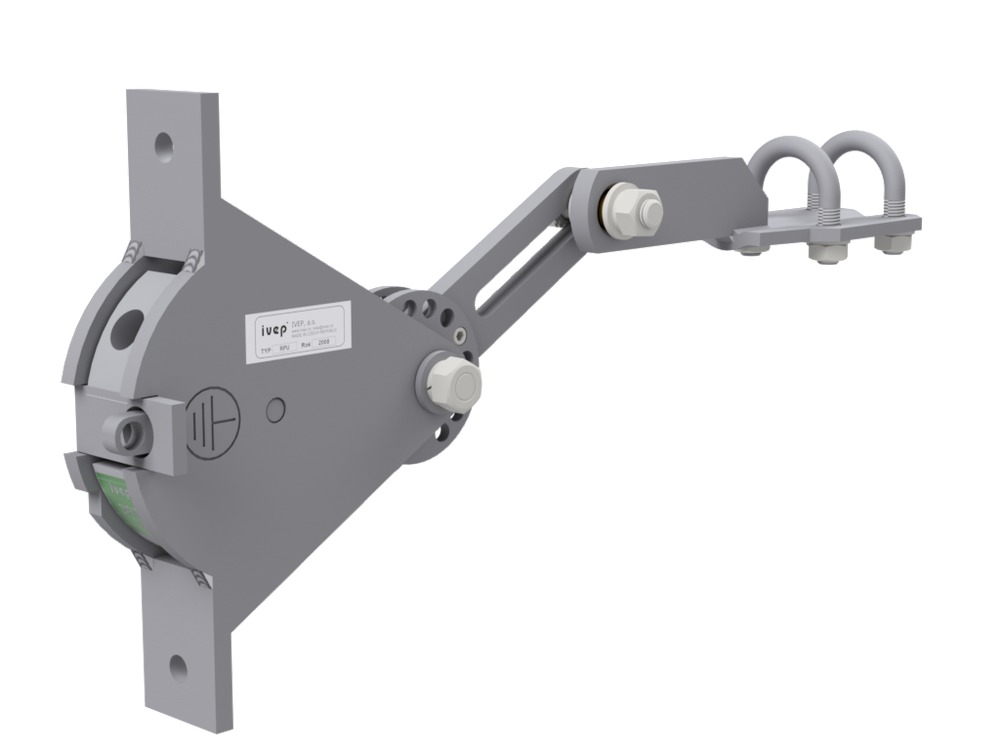

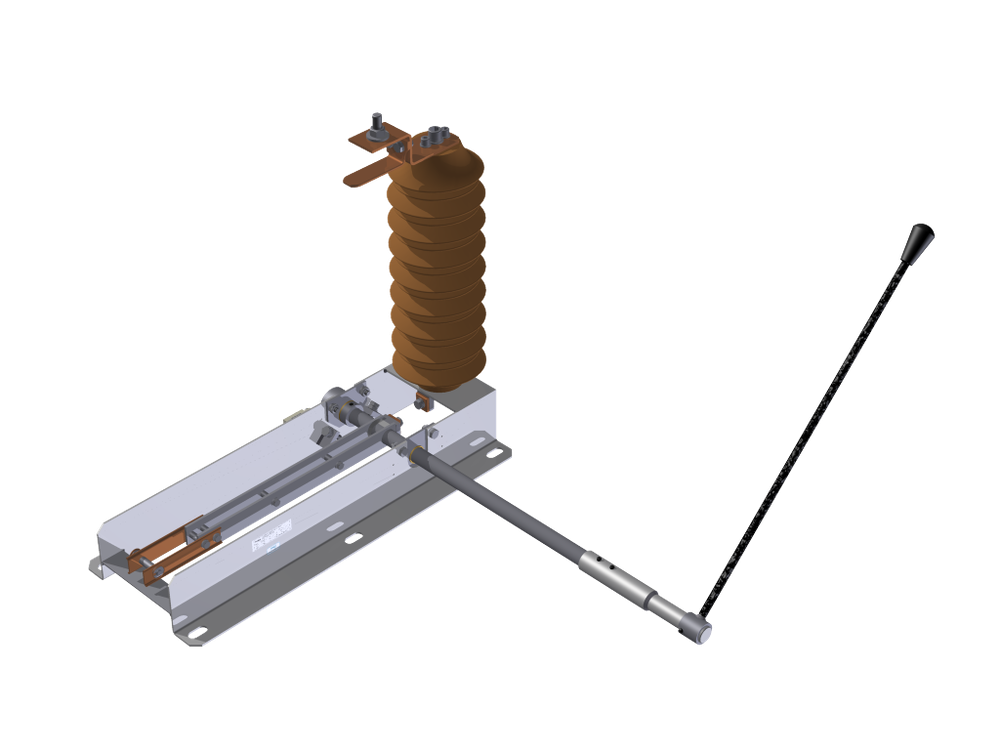

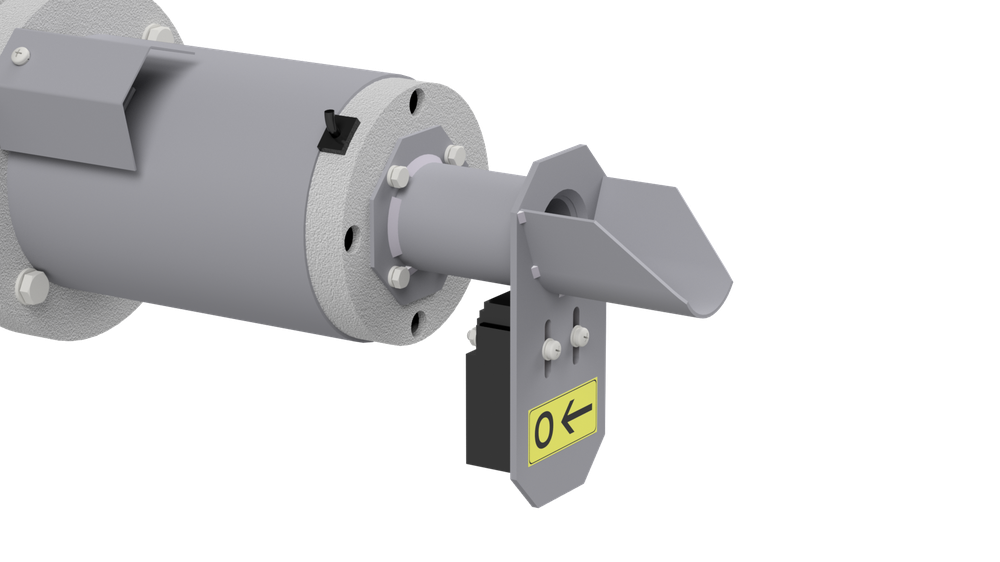

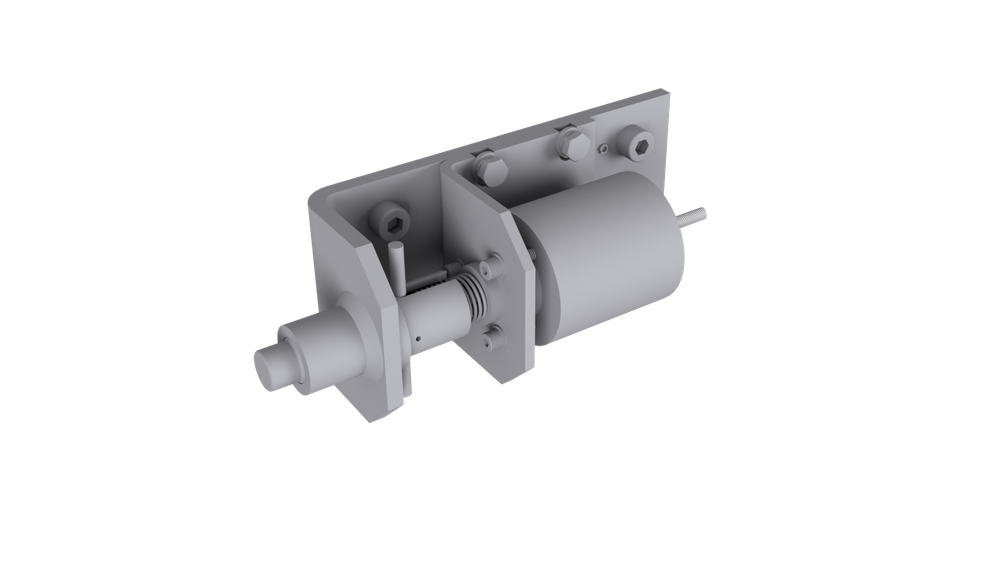

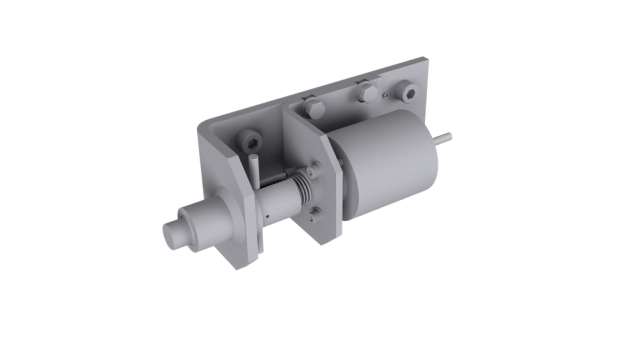

  • Drive type

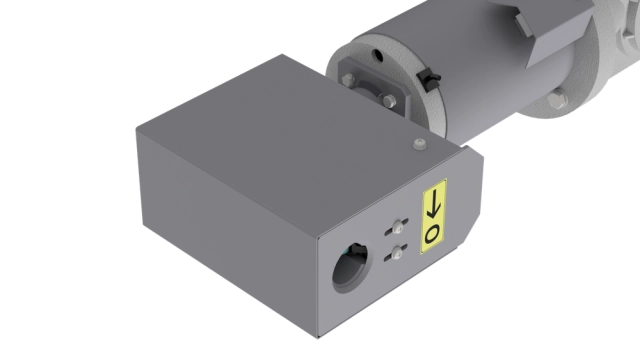

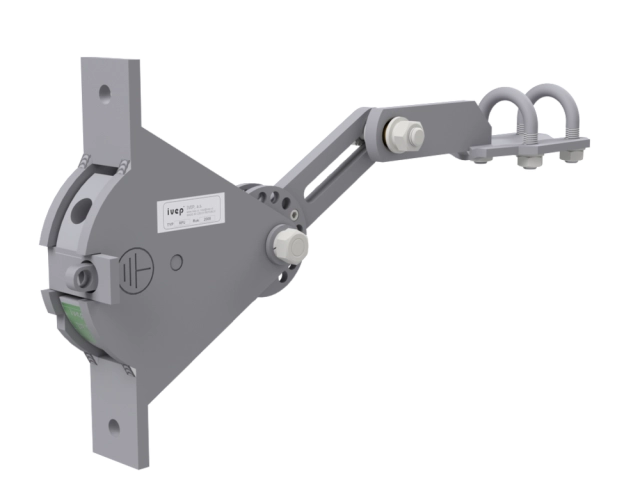

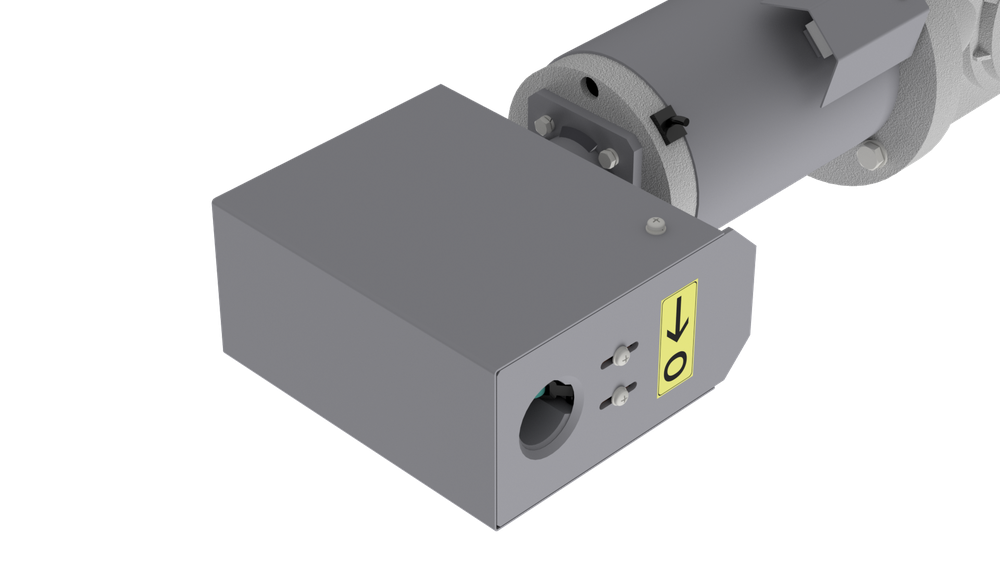

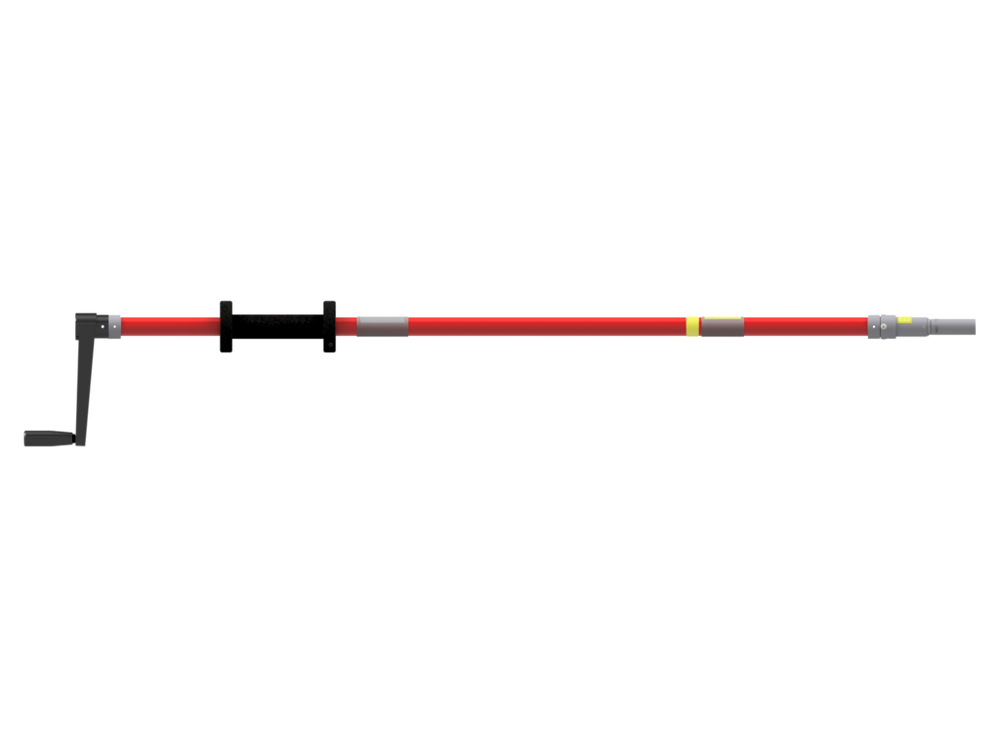

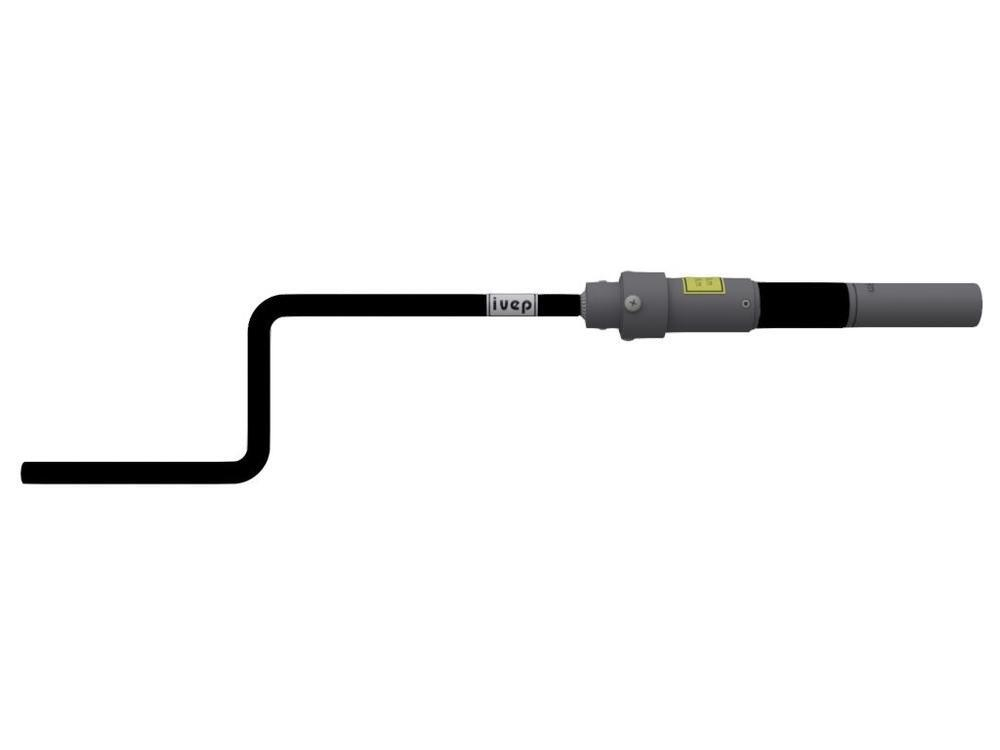

    Hand drive, Hand drive via gearbox, motor drive
  • Motor type
    12V DC, 24V DC, 48V DC, 60V DC, 110V DC, 220V DC, 230V AC, 400V AC
  • Signaling positions
    Limit switches per position, placed direct on main device shaft, Auxiliary cam-switch (high switch capacity)
  • Insulators type
    Epoxy resin, porcelain (upon request)
