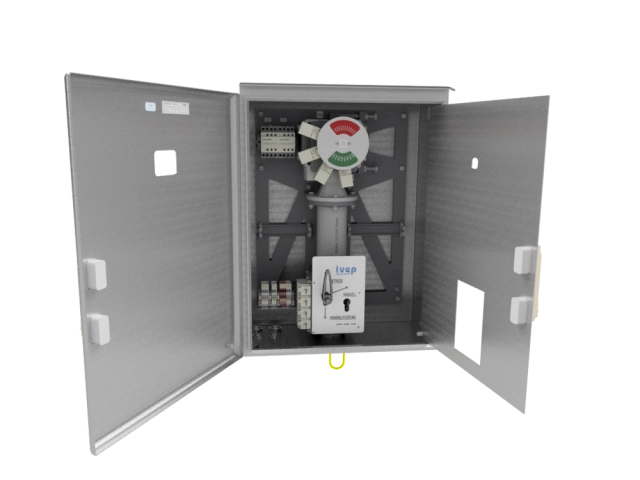

Indoor and outdoor, hand or motor drives

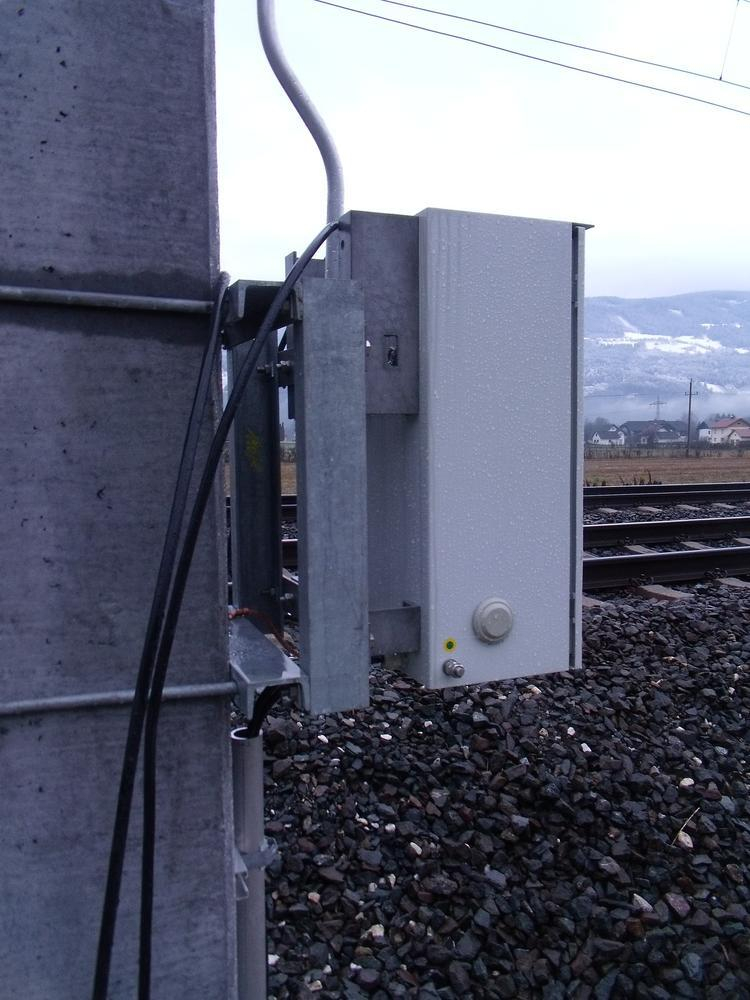

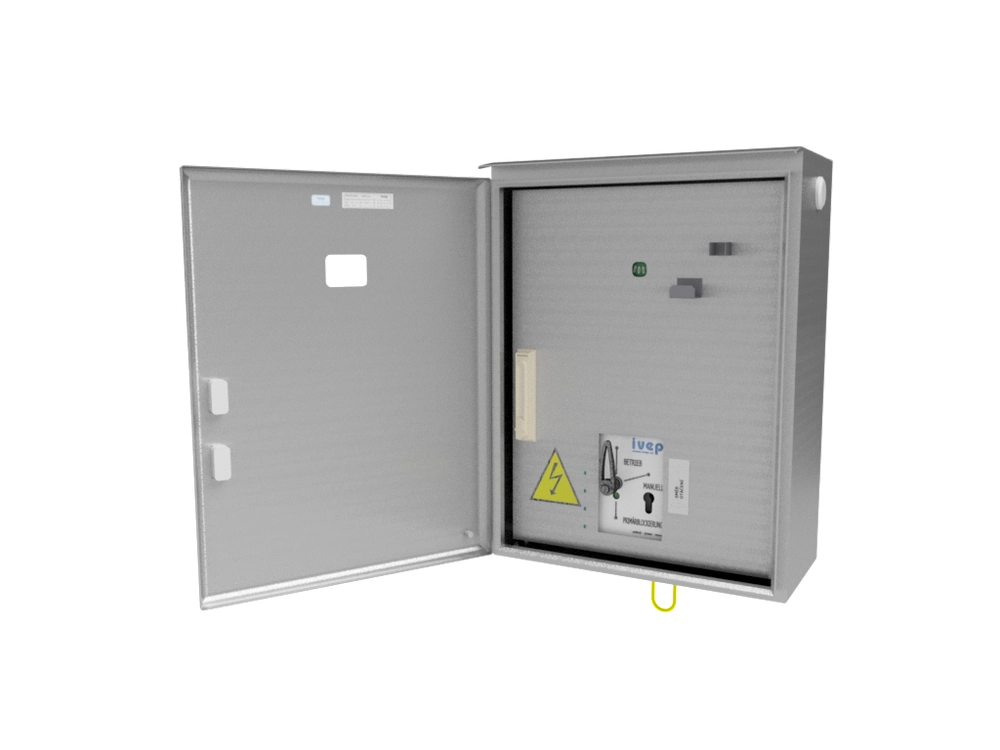

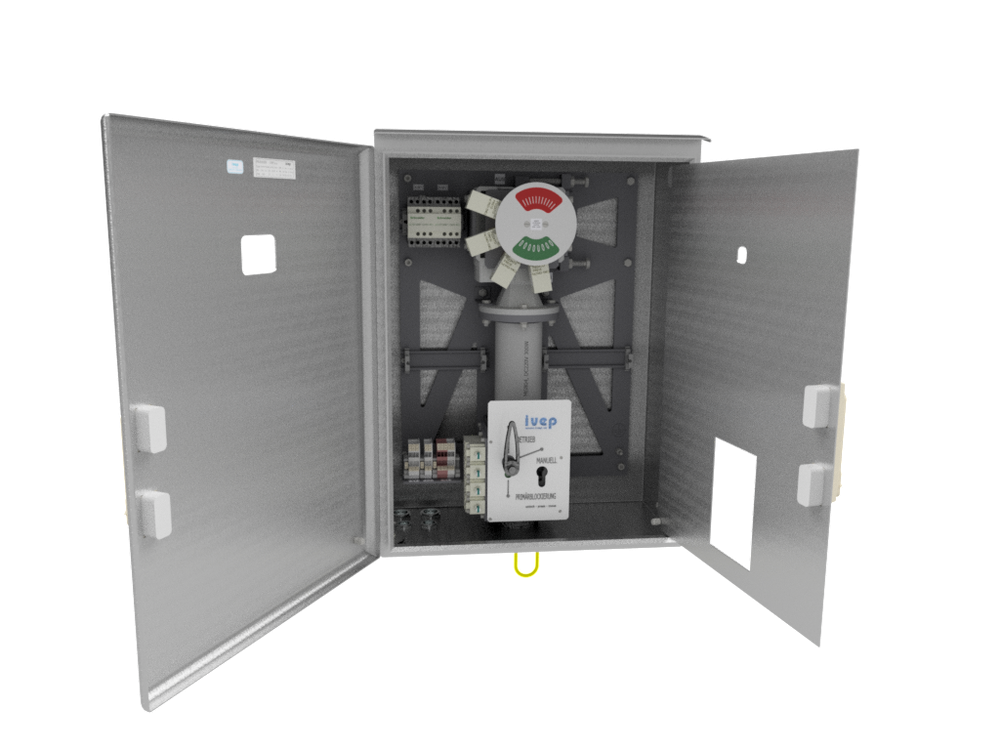

Electromotive outdoor drive type SUP-A for traction - hard wired

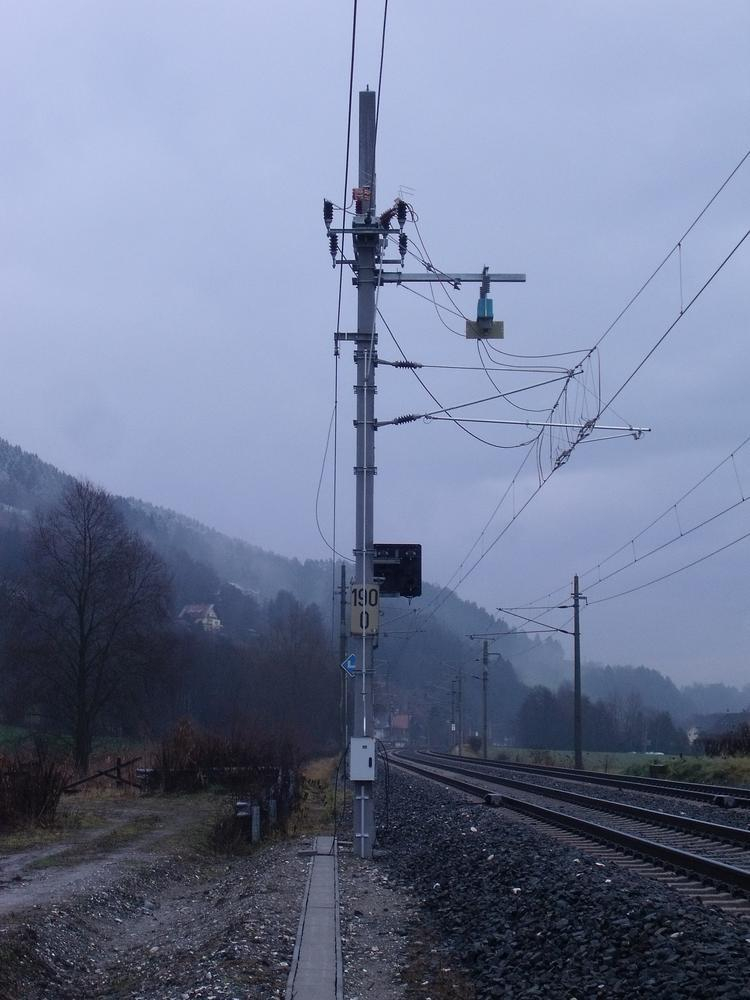

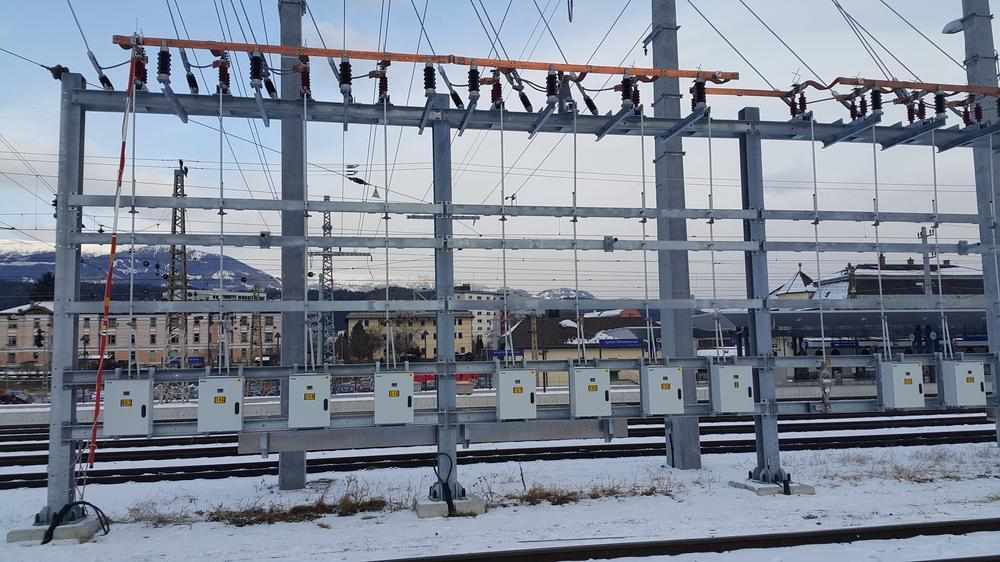

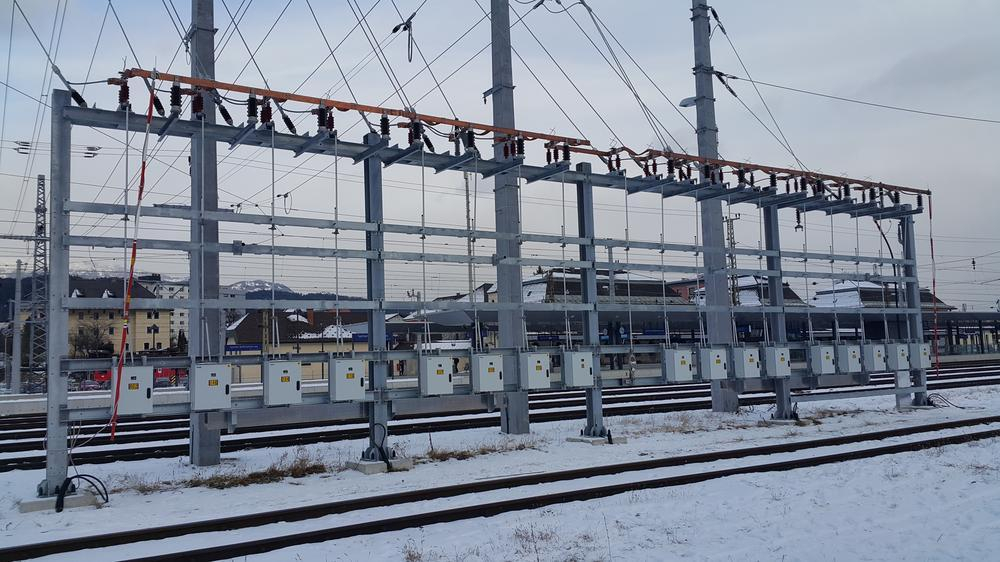

The SUP-A electromotor drive is intended for use in independent control of traction outdoor switching devices, operated by power, in particular the MV disconnectors, switch disconnectors and earthing switches. It can be used for local, remote and emergency control. The drive output torque achieves a level that provides for reliable control of the switching devices even in heavy-duty conditions. Drive type SUP-A is intended for direct connection via matalic cables and it's tested for 50.000 CO.

Request product

Download 3D model

Technical information

Rated control voltage

230V AC
Rated power supply voltage

230V AC, other upon request
Mechanical endurance

50000 CO
Lifetime (years)

40
Material of the cabinet

stainless steel, covered by paint RAL upon request
Output of the shaf, position

upon request

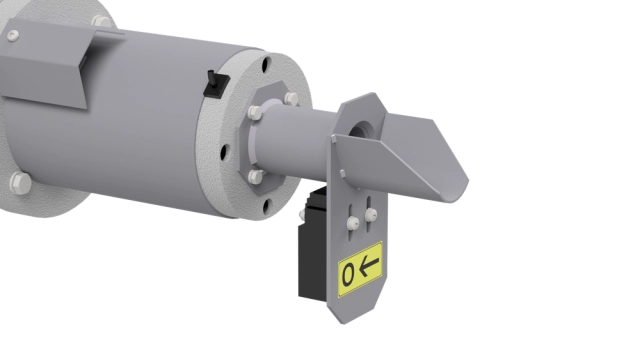

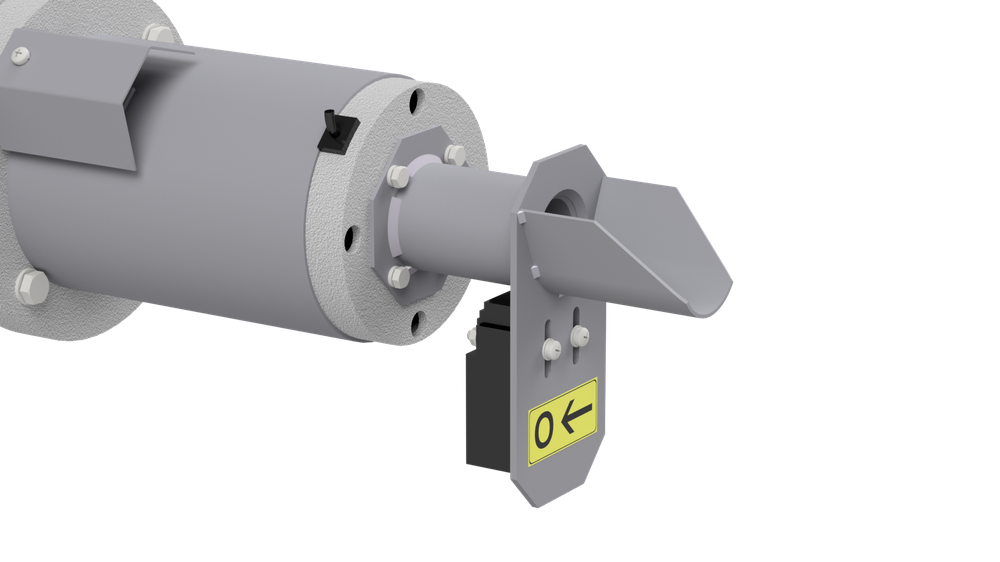

Emergency control

YES
Uplift

adjustable 80 - 180mm, possible to change
Output momentum torgue

200 - 2000 Nm
Output angle

upon request
Signaling positions

Limit switches per position, placed direct on main device shaft, Auxiliary cam-switch (high switch capacity)
Kind of communication

Signaling positions
Communication protocols

IEC 60870-5-101, IEC 60870-5-104, Modbus (RTU), Modbus TCP, DNP 3.0 TCP
Inputs

16x DI, 4x AI - expendable
Outputs

4x DO, relays - expendable
