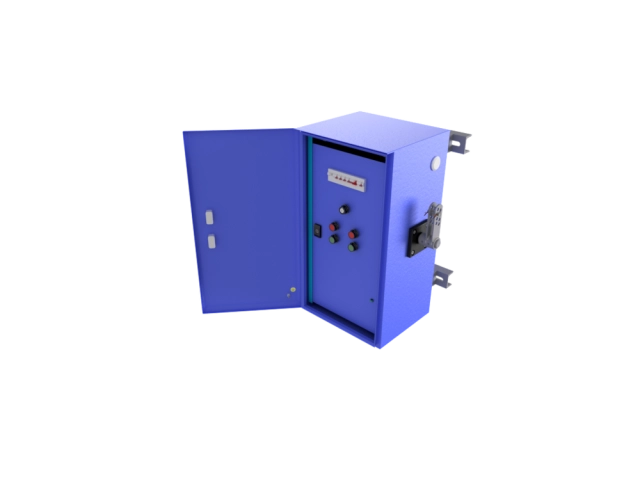

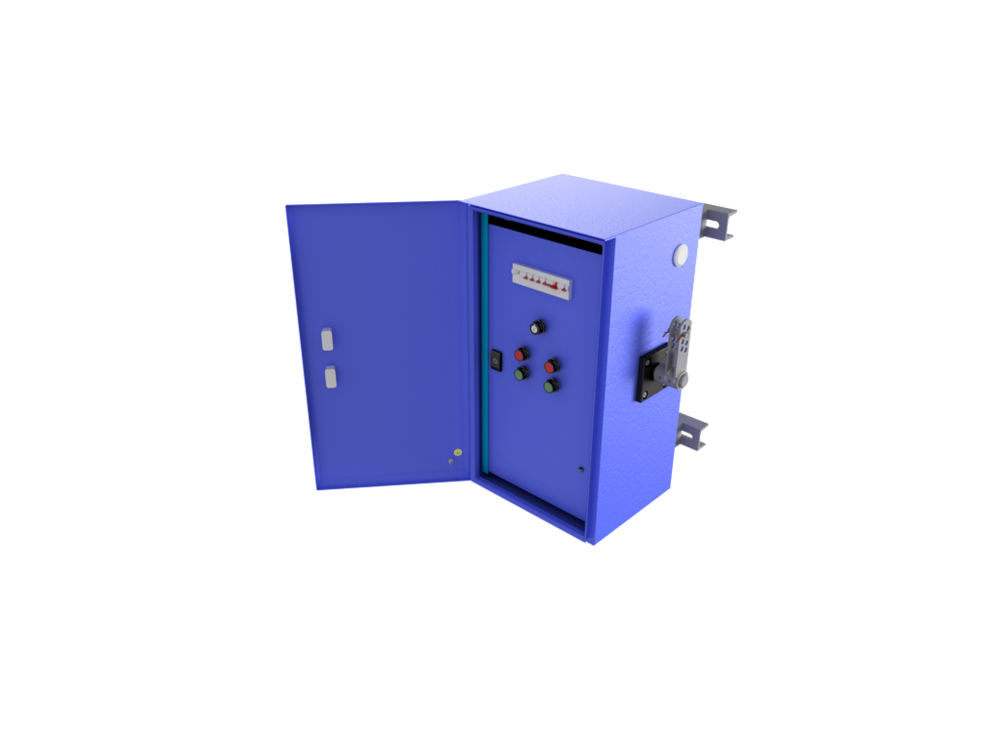

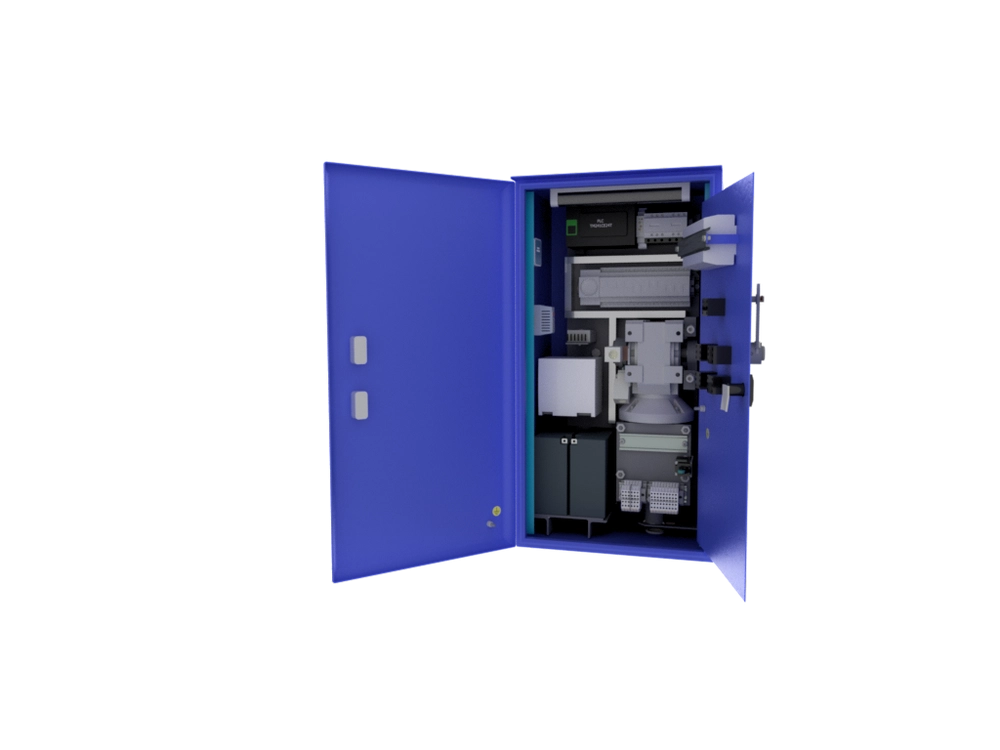

Electromotive outdoor drive type SUP-DO - remote controlled GPRS/LTE/Radio

The SUP-DO electromagnetic drive is intended for use in independent control of outdoor switching devices, operated by power, in particular the MV, HV disconnectors, switch disconnectors and earthing switches. It can be used for local, remote and emergency control. The drive output torque achieves a level that provides for reliable control of the switching devices even in heavy-duty conditions. Drive type SUP-DO is intended for wireless comunication thru 3G, 4G, WIFI, Bluetooth nets - everything according your request.

Request product

Download 3D model

Technical information

Rated control voltage

24V DC, 48V DC
Mechanical endurance

10000, 50000 CO
Lifetime (years)

20
Material of the cabinet

stainless steel, covered by paint RAL upon request
Output of the shaf, position

upon request
Emergency control

YES
Uplift

adjustable 80 - 180mm, possible to change
Output momentum torgue

200 - 2000 Nm
Output angle

upon request
Signaling positions

Limit switches per position, placed direct on main device shaft, Auxiliary cam-switch (high switch capacity)
Kind of communication

GPRS / LTE, 3G, 4G, Radio
Communication protocols

IEC 60870-5-101, IEC 60870-5-104, Modbus (RTU), Modbus TCP, DNP 3.0 TCP
Inputs

16x DI, 4x AI - expendable
Outputs

4x DO, relays - expendable
