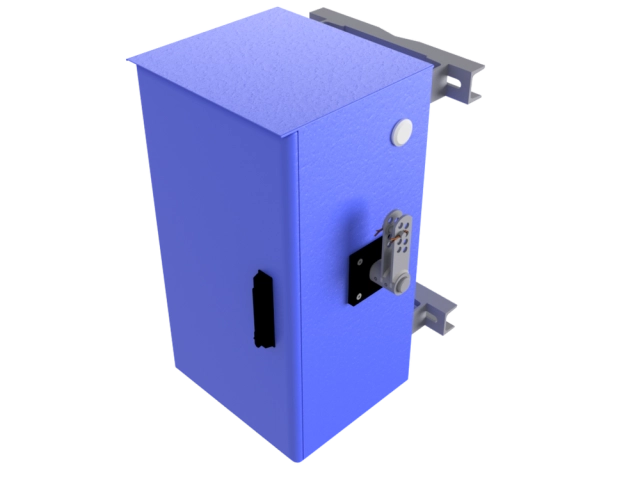

Indoor and outdoor, hand or motor drives

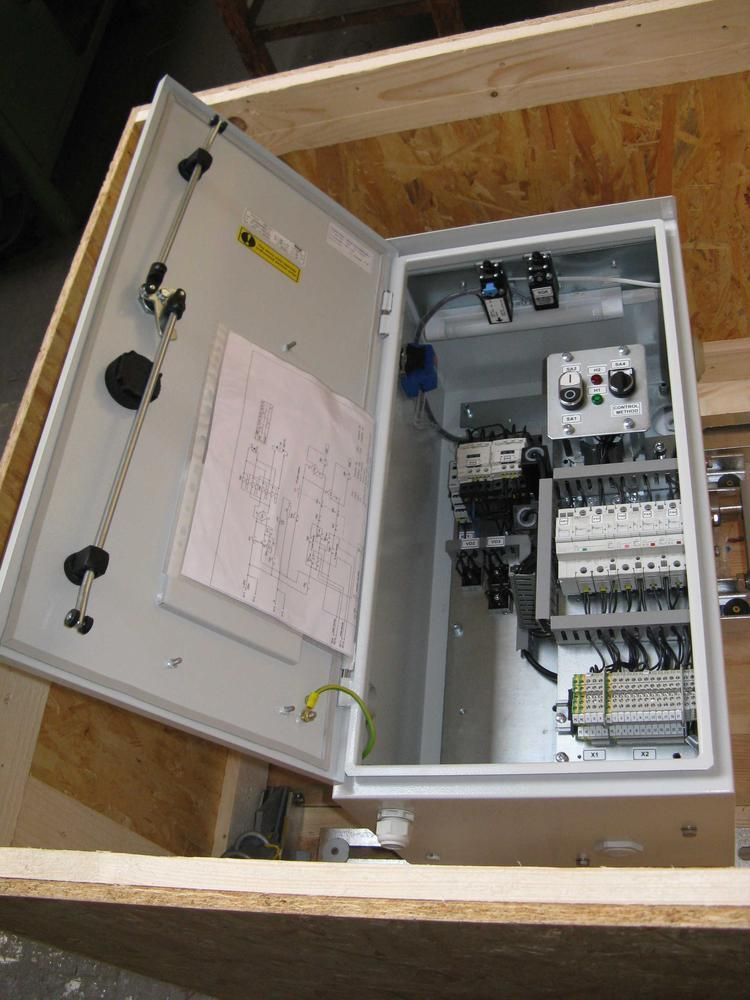

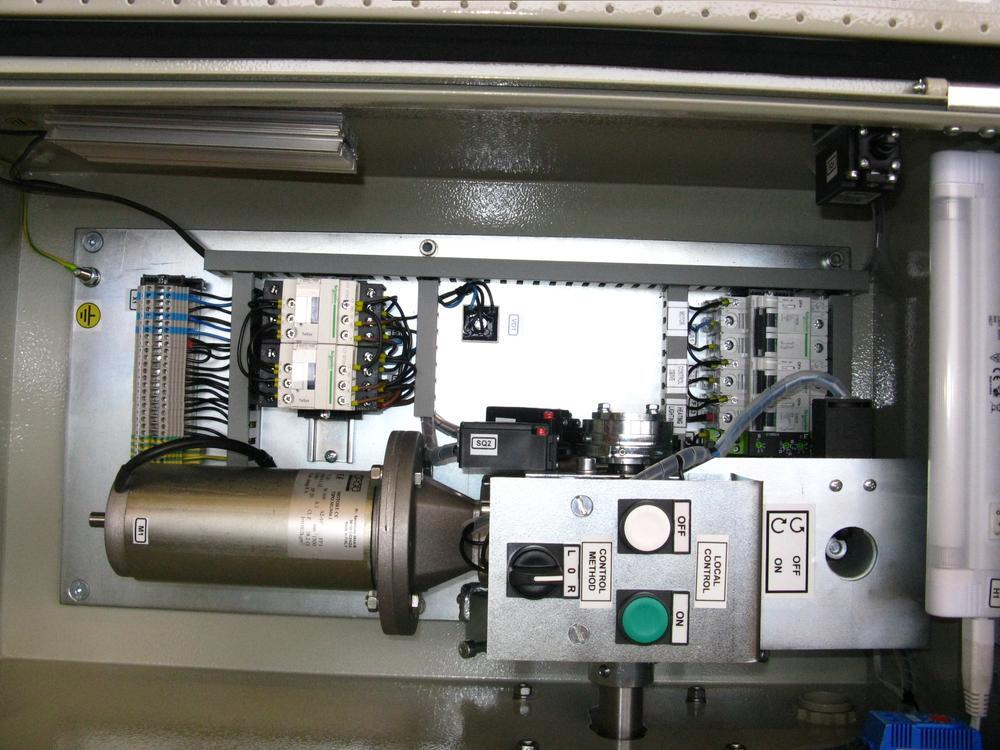

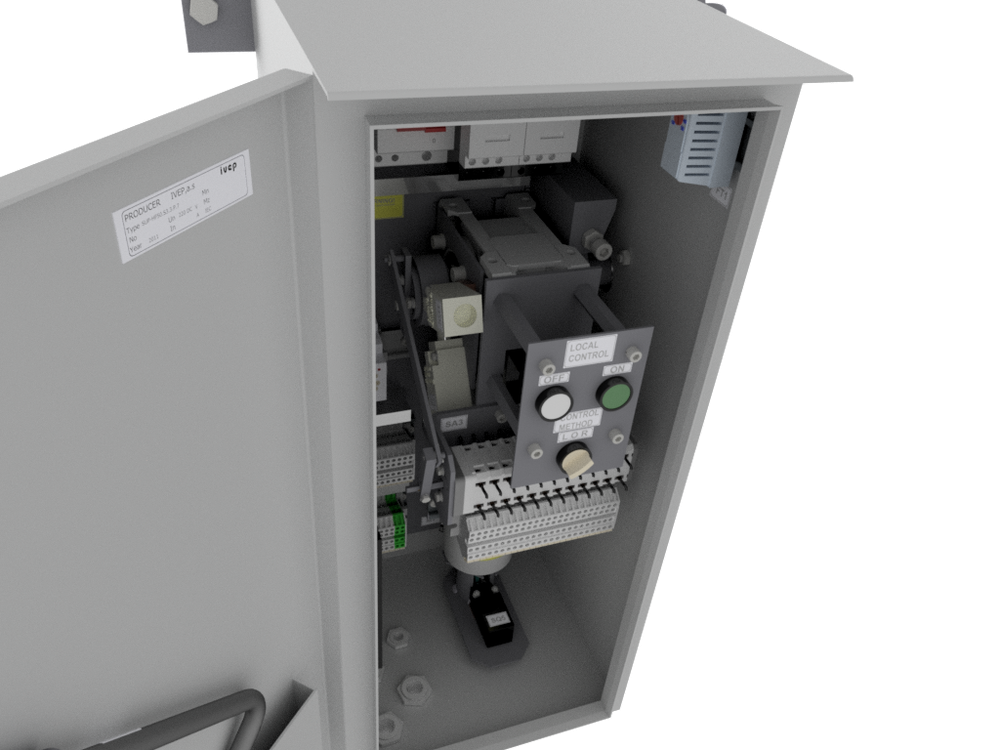

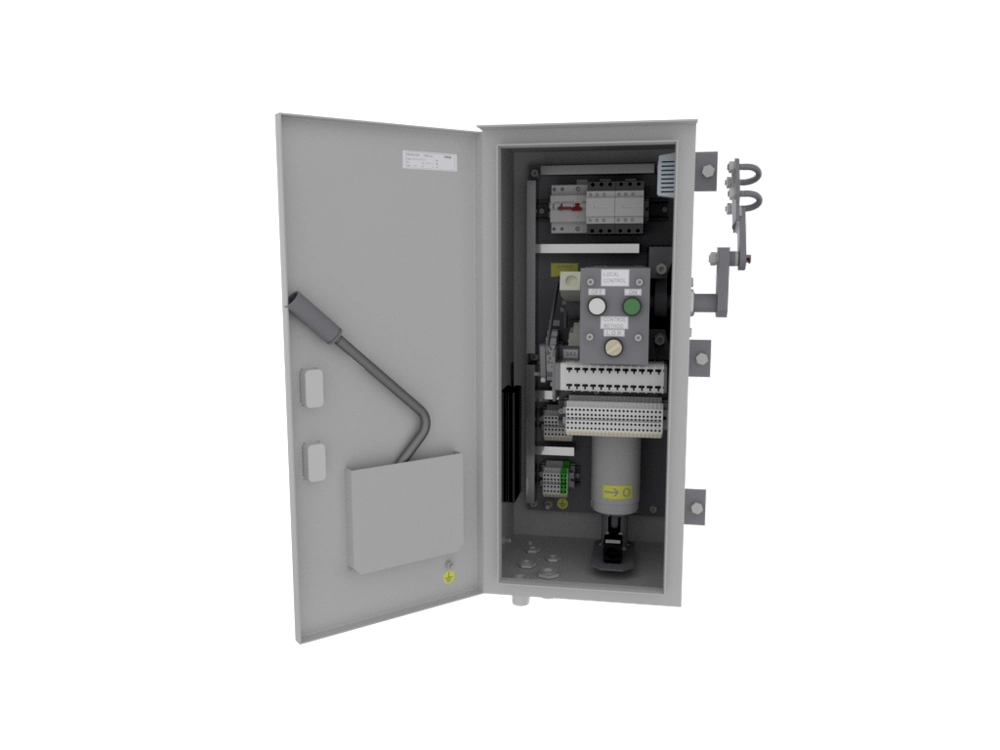

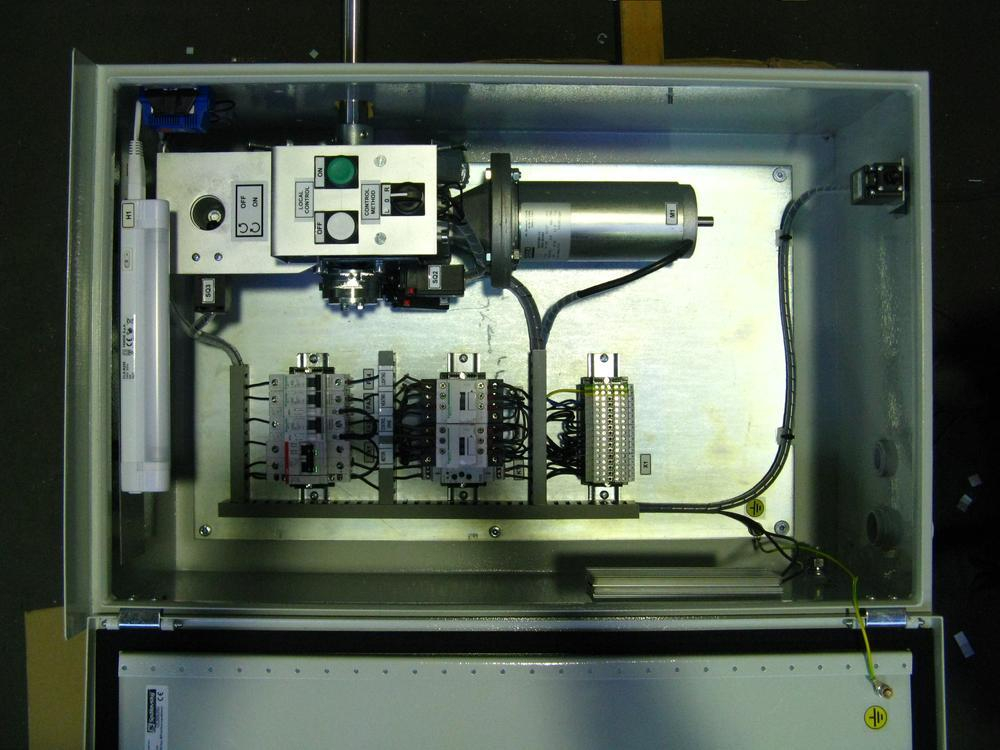

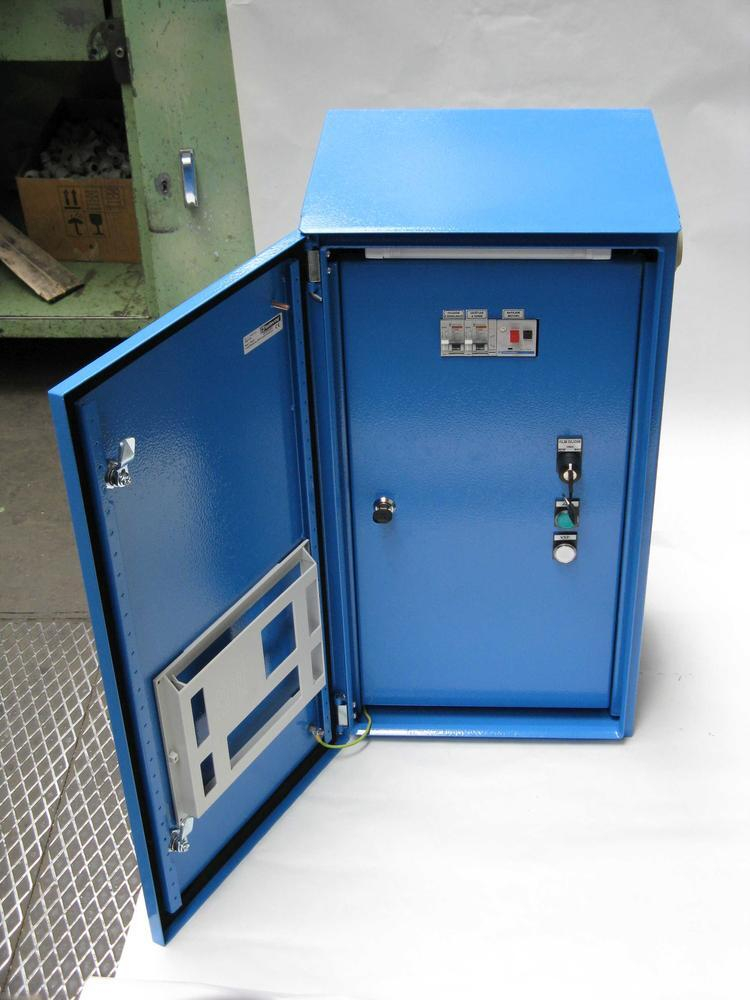

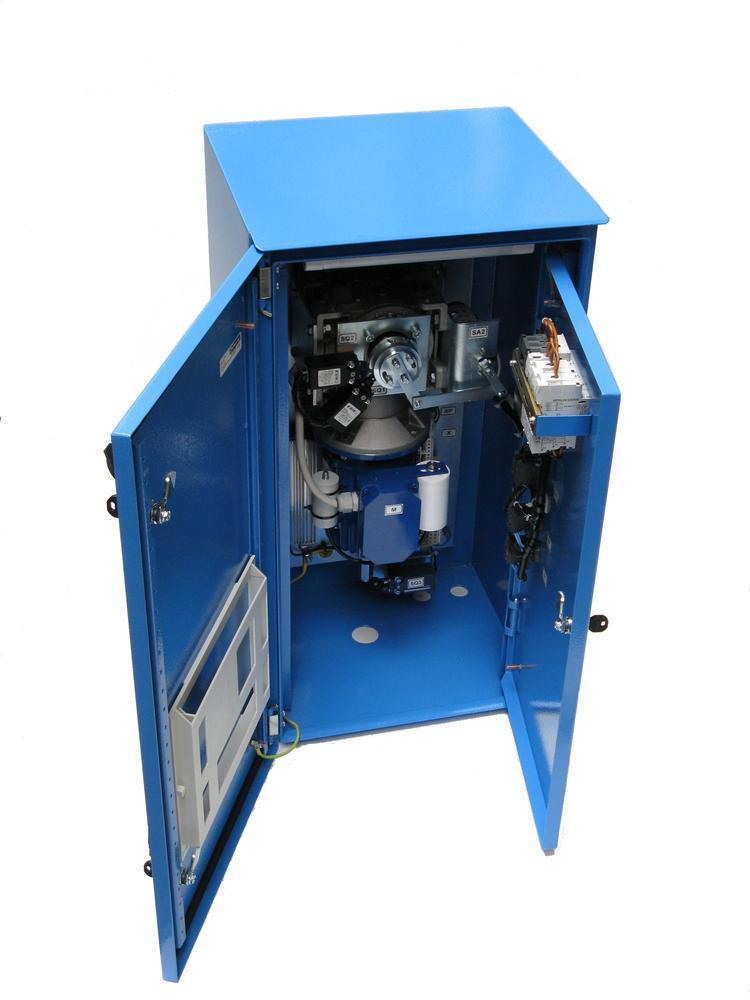

Electromotive outdoor drive type SUP - hard wired

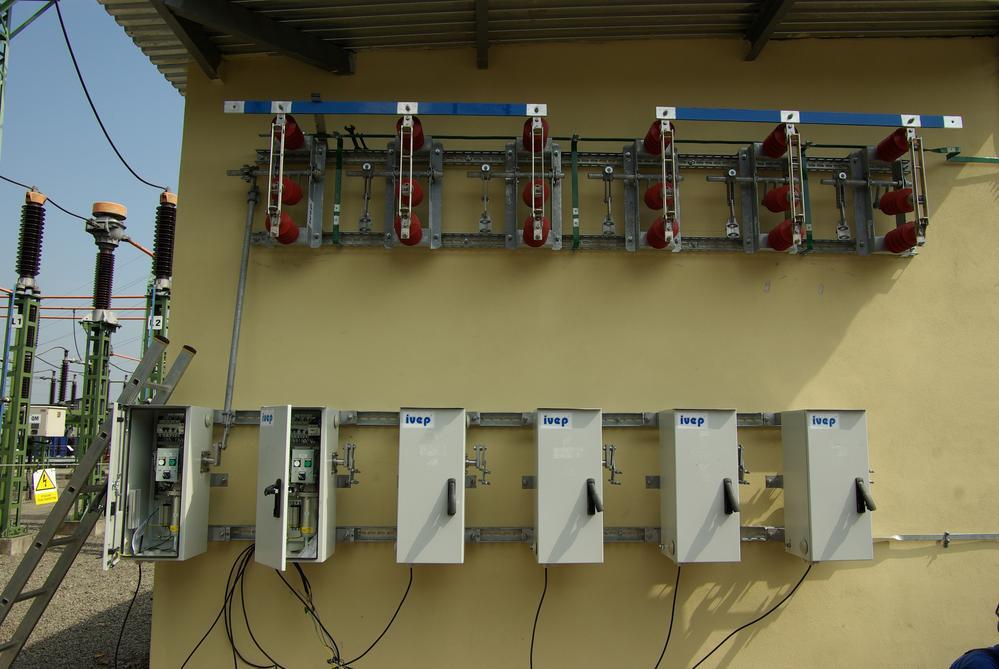

The SUP electromagnetic drive is intended for use in independent control of outdoor switching devices, operated by power, in particular the MV, HV disconnectors, switch disconnectors and earthing switches. It can be used for local, remote and emergency control. The drive output torque achieves a level that provides for reliable control of the switching devices even in heavy-duty conditions. Drive type SUP is intended for direct connection via matalic cables.

Request product
Download 3D model

    Technical information

  • Rated control voltage
    12V DC, 24V DC, 48V DC, 60V DC, 110V DC, 125V DC, 220V DC, 230V AC, 400V AC
  • Mechanical endurance
    10000, 50000 CO
  • Lifetime (years)
    40

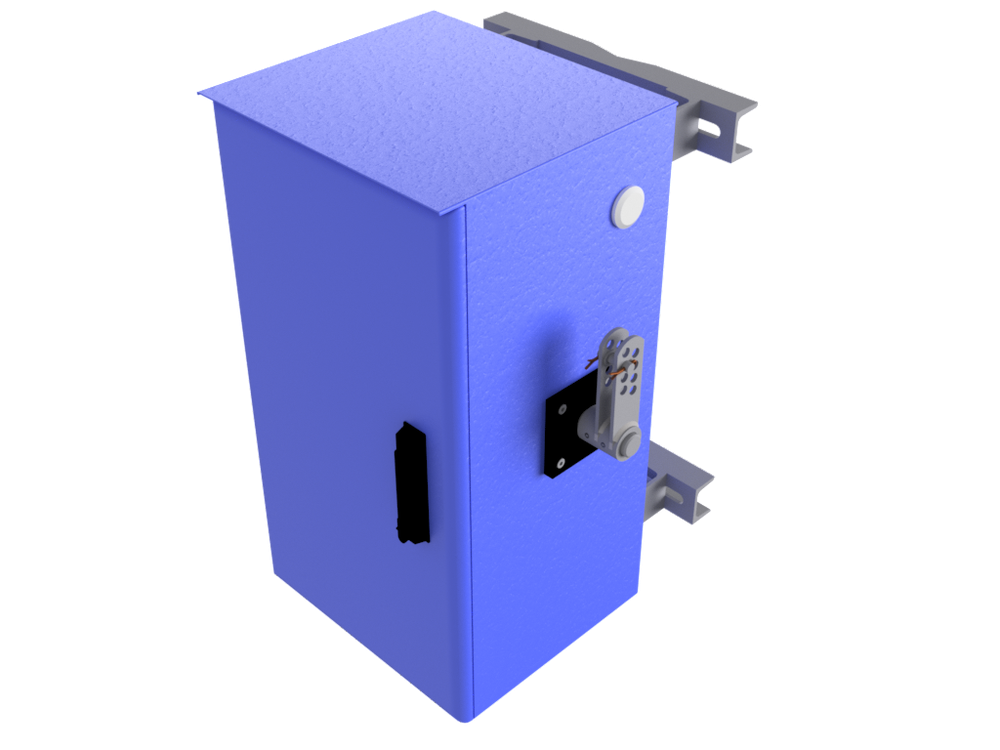

  • Material of the cabinet
    stainless steel, covered by paint RAL upon request
  • Output of the shaf, position
    upon request

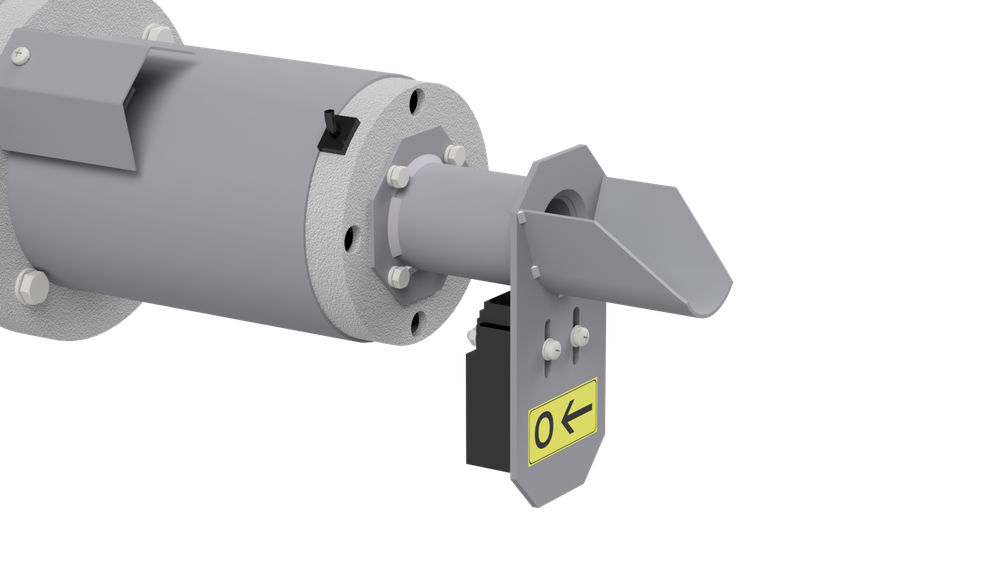

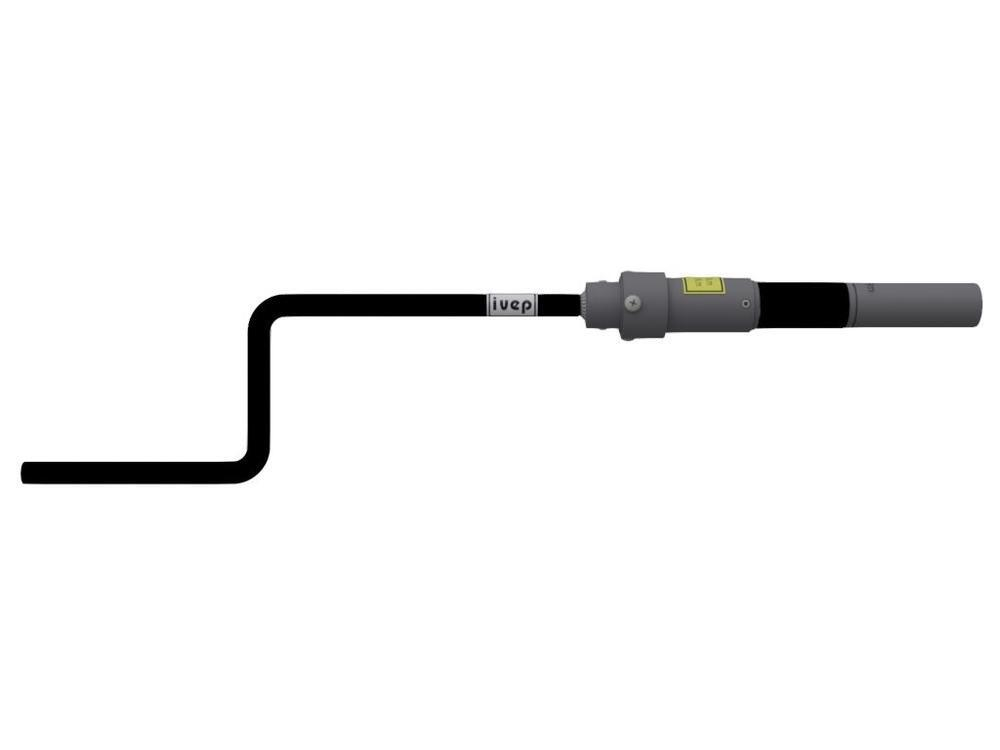

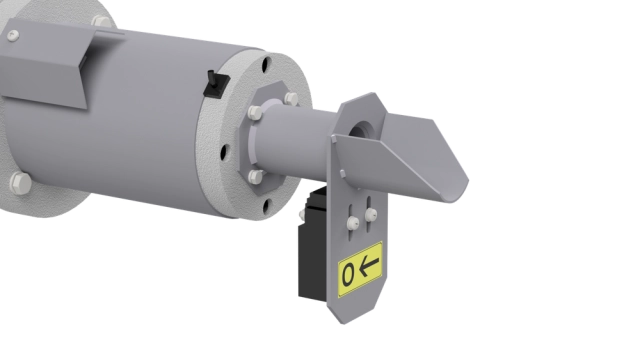

  • Emergency control
    YES
  • Uplift
    adjustable 80 - 180mm, possible to change
  • Output momentum torgue
    200 - 2000 Nm
  • Output angle
    upon request

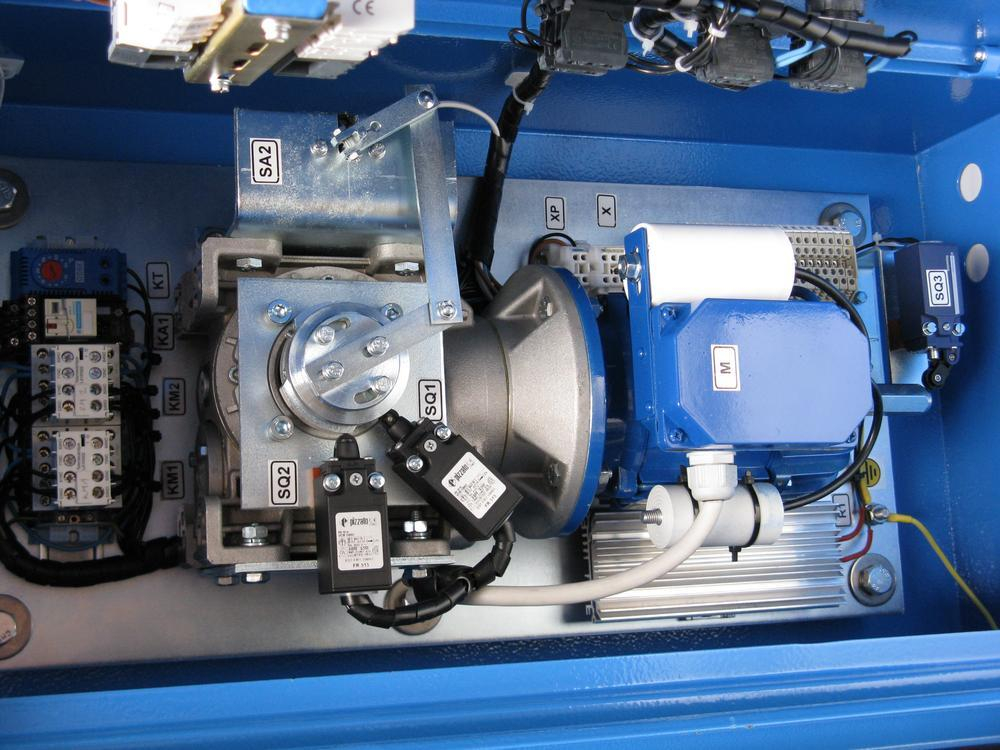

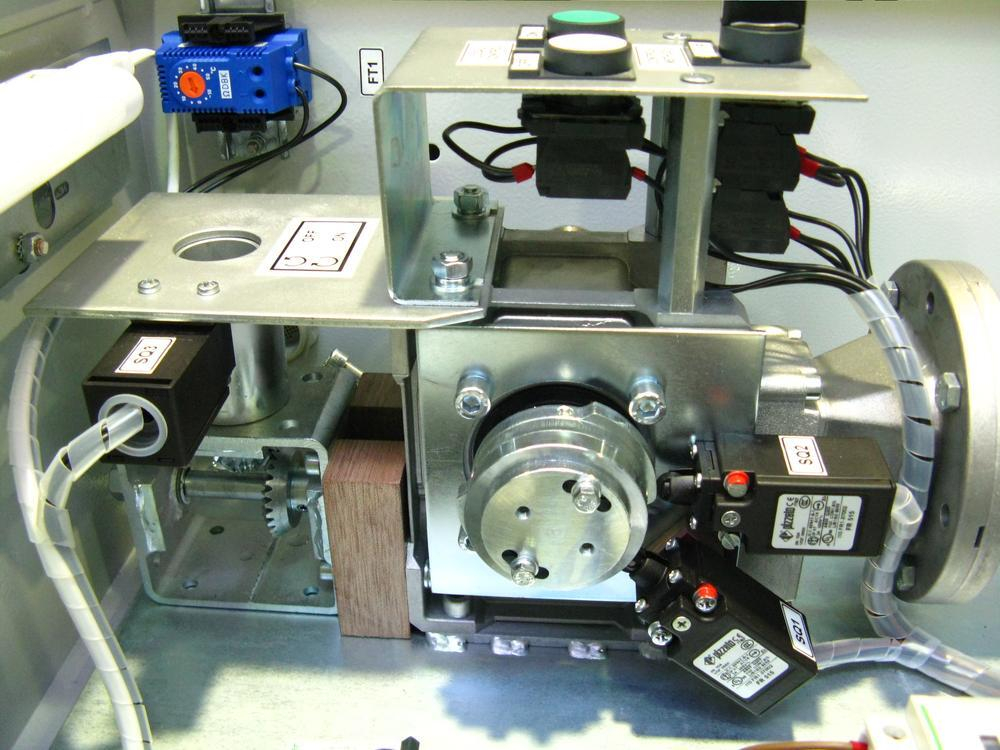

  • Signaling positions
    Limit switches per position, placed direct on main device shaft, Auxiliary cam-switch (high switch capacity)
