Generator Switchgear MV, outdoor design, primary distribution

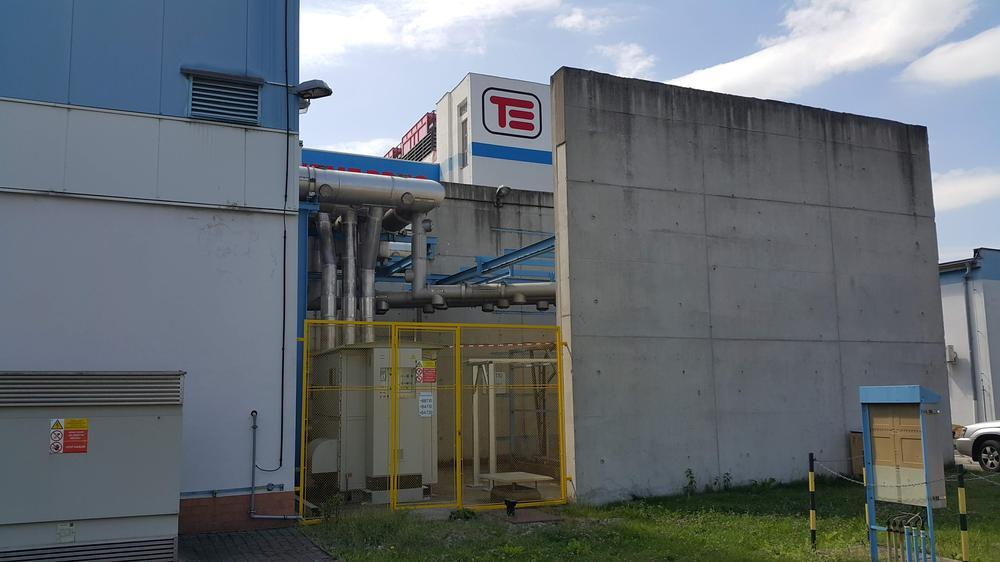

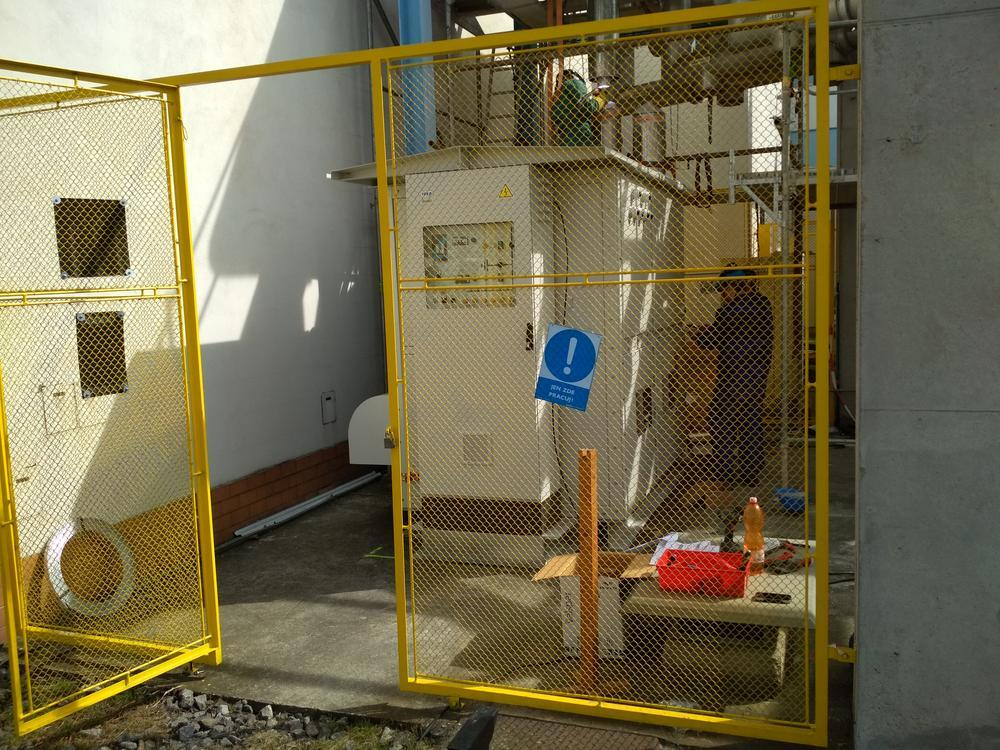

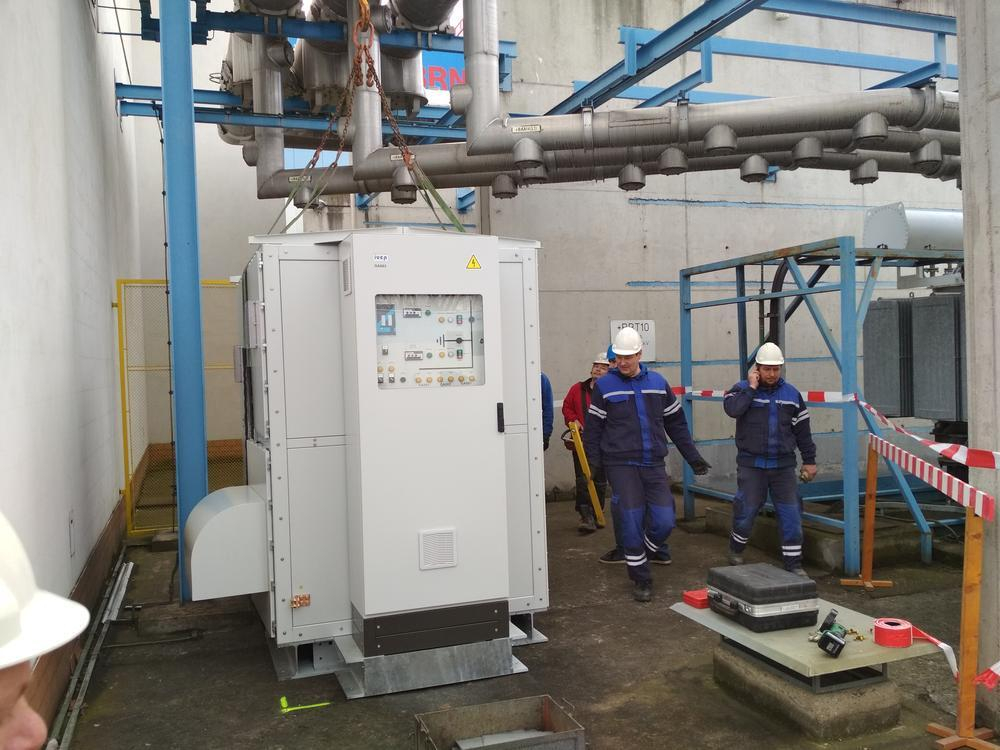

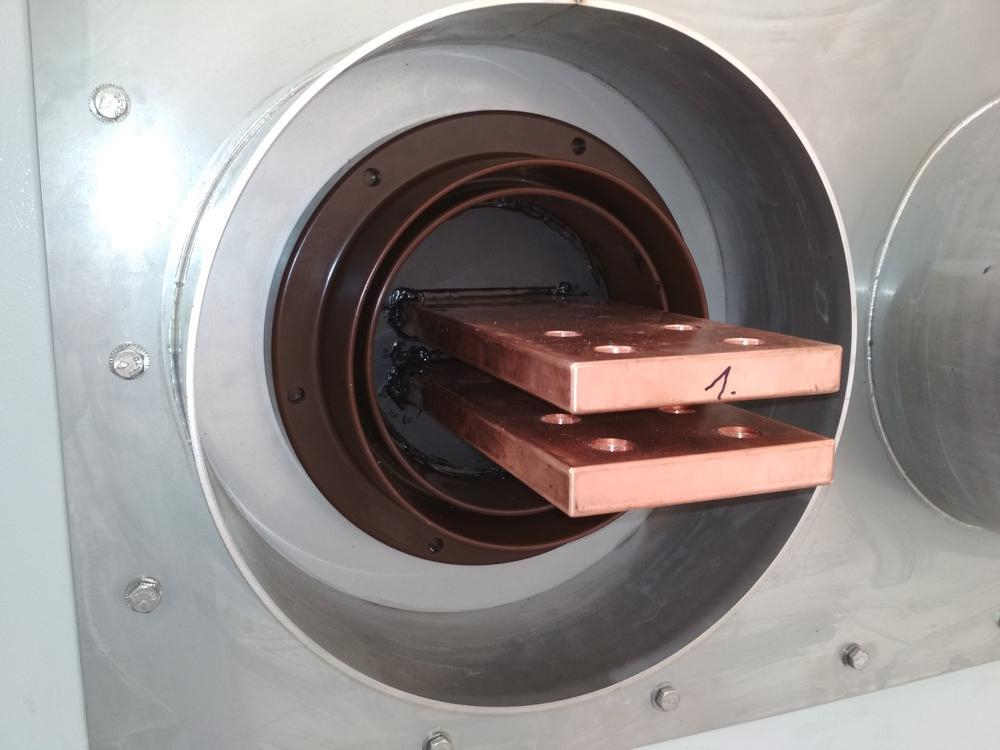

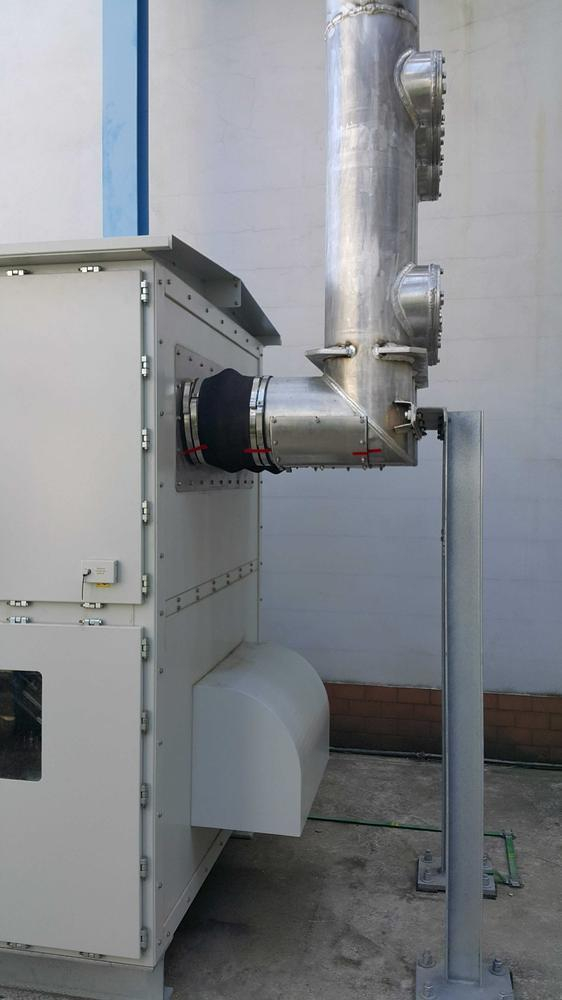

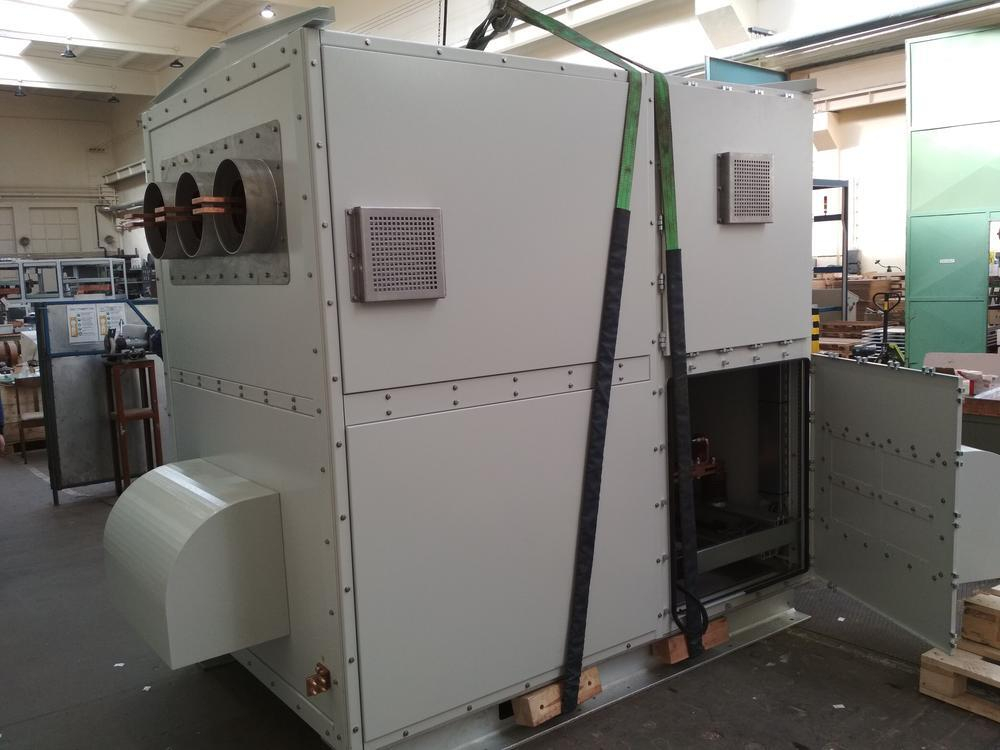

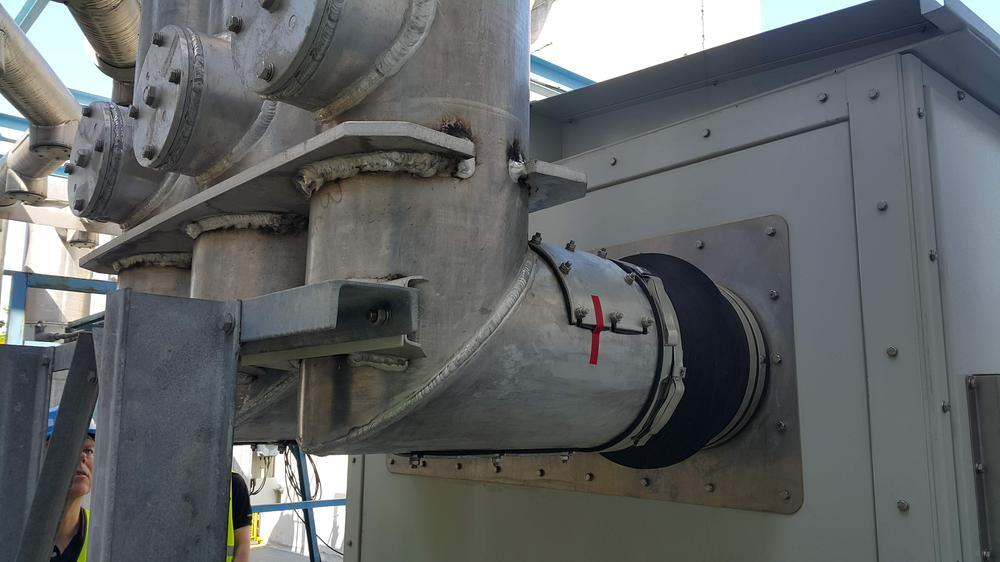

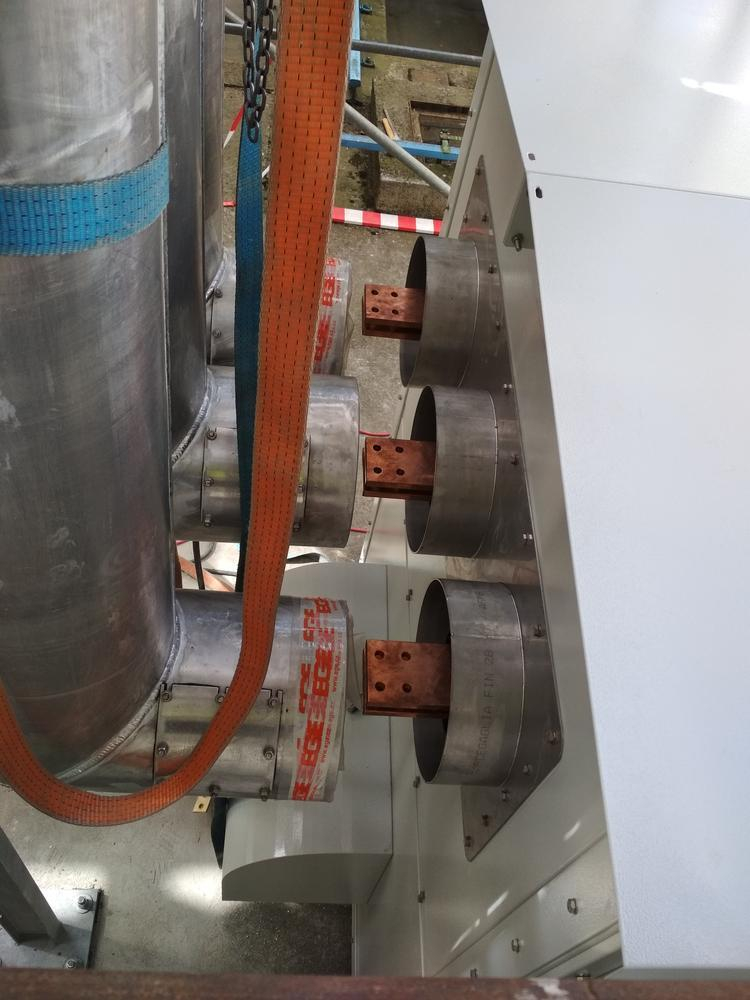

The GSO outdoor switchgear is placed in power output of the electric energy from the generator or the transformer in the primary distribution. High short-circuit resistance, variability and tailor-made design. Possibility to connect via busbar system, insulated busbars or cables. Outdoor design, complete stainless steel finish. Ideal choice for demanding climatic conditions or the chemical industry.

Request product
Download 3D model

    Technical information

  • Rated voltage
    3 – 36 kV
  • Rated current
    3.150 – 12.000 A
  • Rated shorttime current 1s (3s)
    50 – 150 kA
  • Rated dynamic current
    125 – 375 kA
  • Rated frequency
    50 Hz (16 Hz, 60 Hz
  • Minimum lifetime (years)
    40
  • Circuit-Breaker type
    Vacum
  • Control voltage
    12V DC, 24V DC, 48V DC, 60V DC, 110V DC, 220V DC, 230V AC, 400V AC
  • Insulators type
    Epoxy resin
  • Class
    LSC 1, LSC2, A, B
  • Covering
    IP54
  • Minimum ambient temperature
    up to - 40 °C
  • Maximum ambient temperature
    up to + 60 °C
