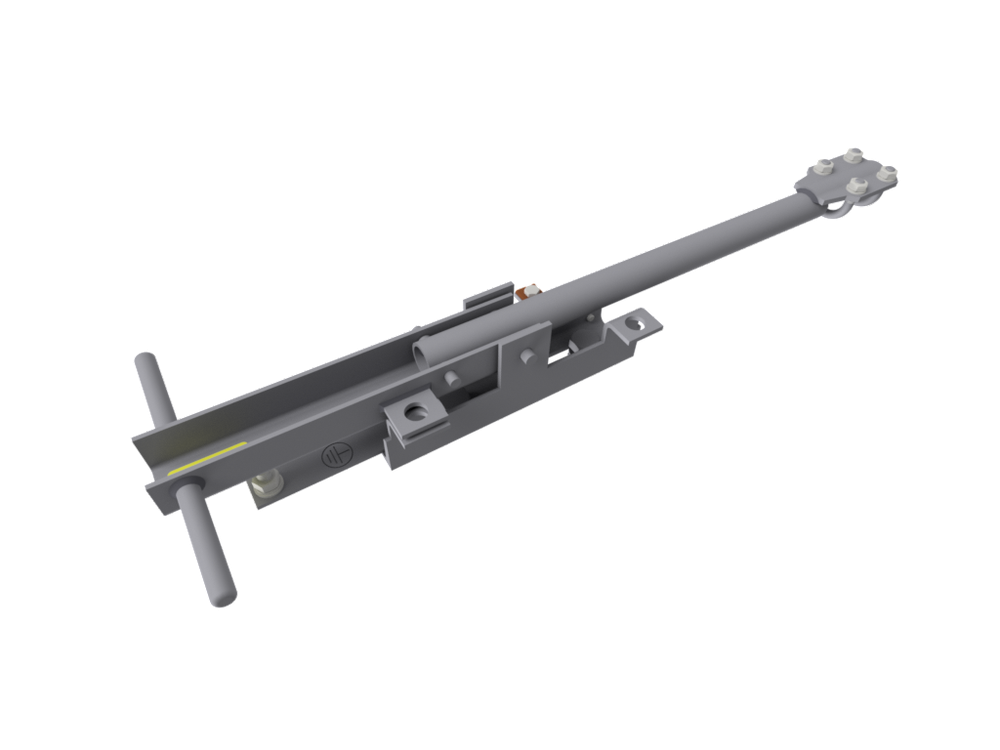

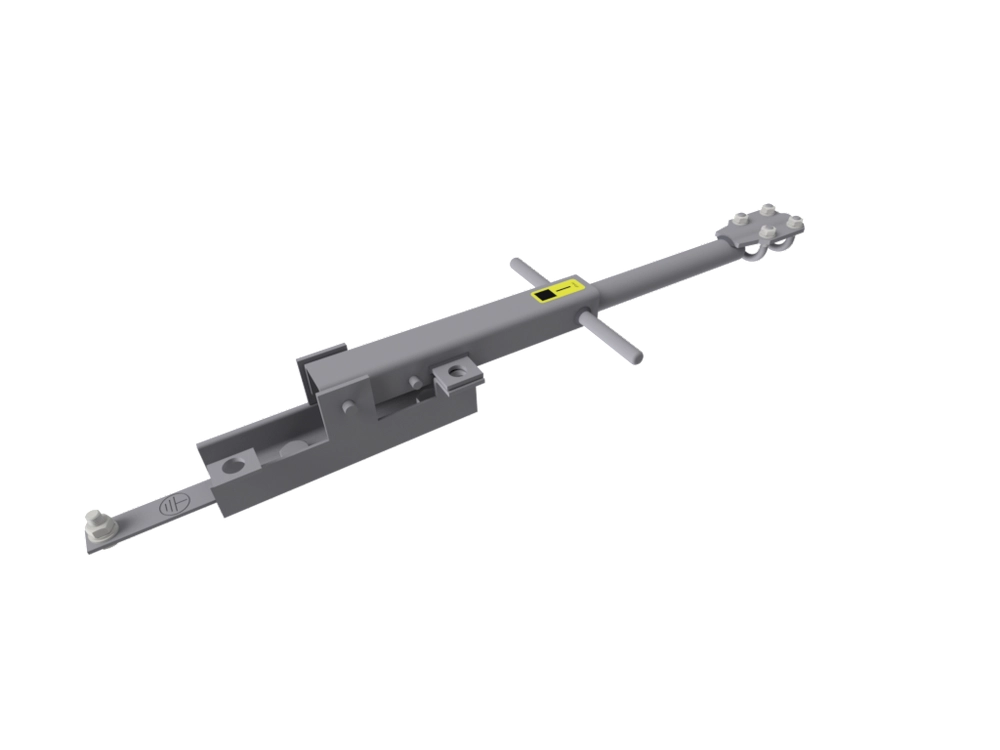

Hand outdoor drive type RPV

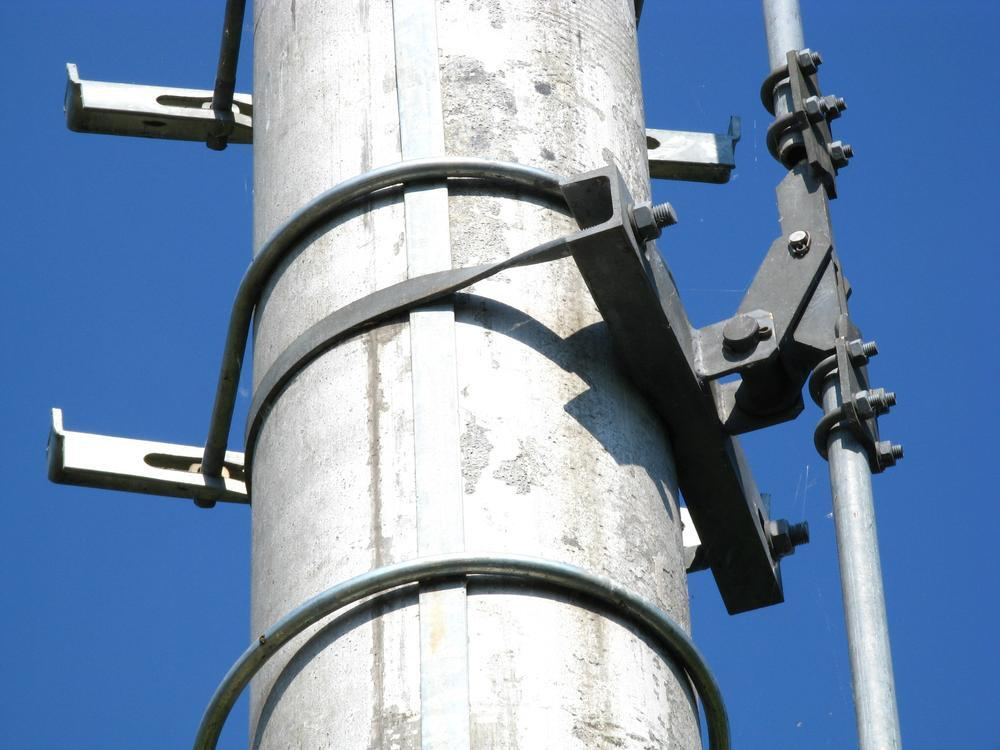

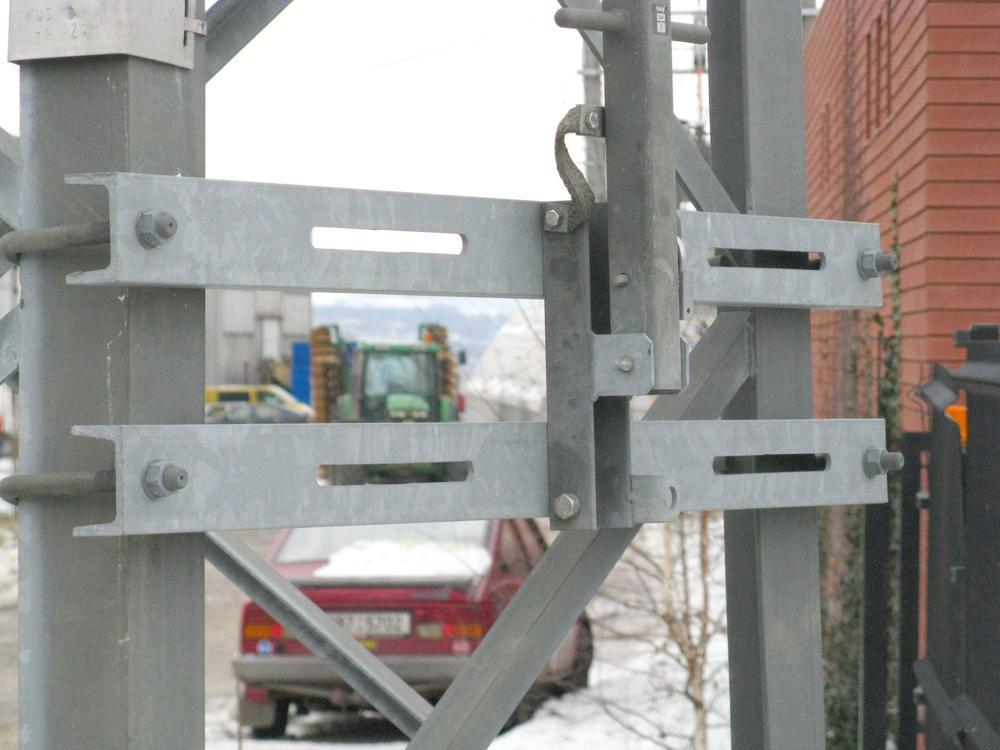

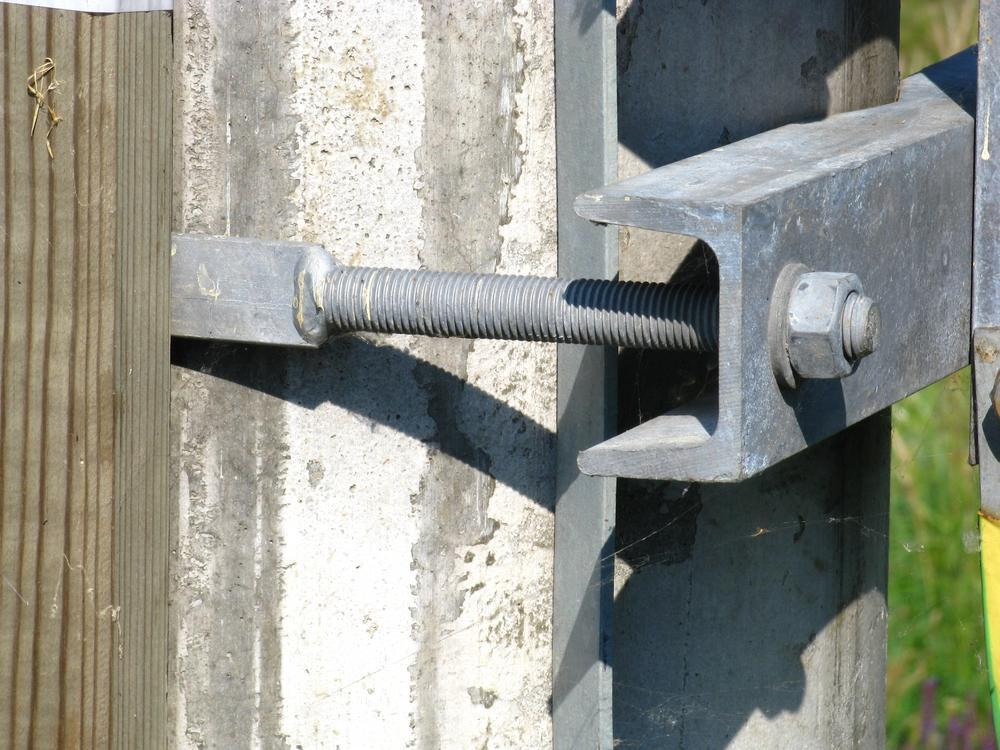

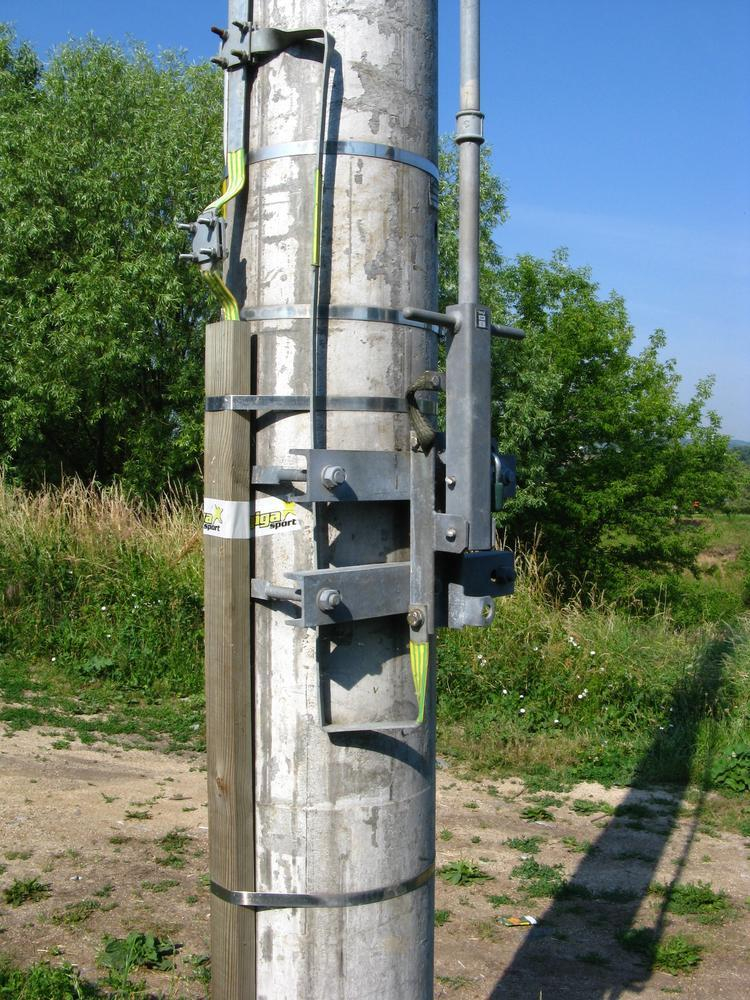

Manually operated drives are used for manual control of switching devices of outdoor design. The drive features a working stroke of 140 mm as a standard (can be modified). The end positions of its operating handle with a forward angle of 180° can be secured with a padlock. The drive mechanism is designed for to be mounted on wooden or concrete poles, or on lattice-type power transmission towers. The transmission of motion forces takes place via drawbars connected to a control lever mounted on a shaft which operates the switching device.
