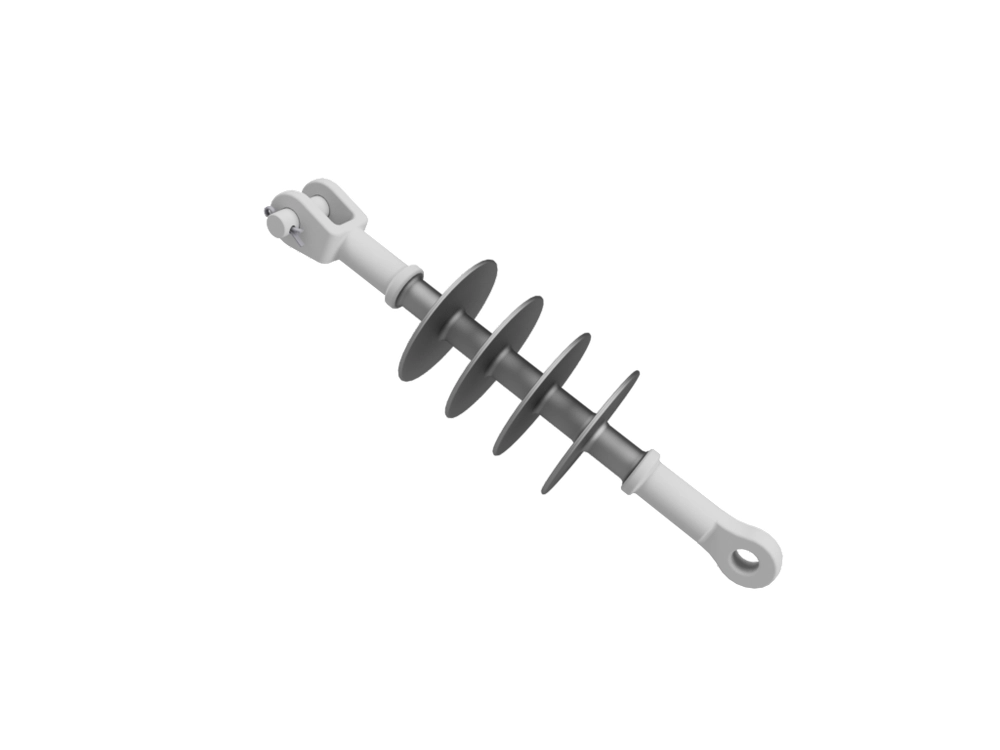

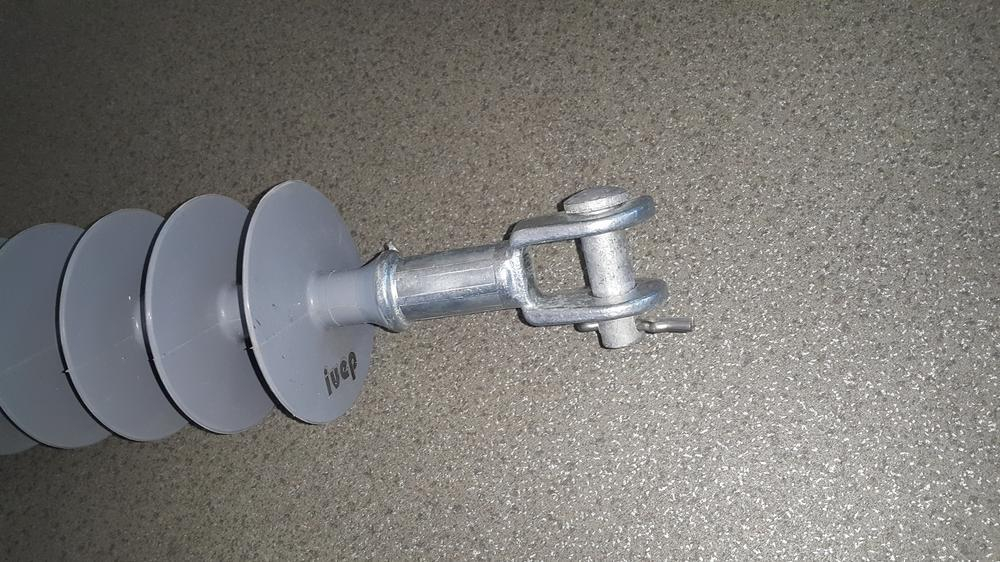

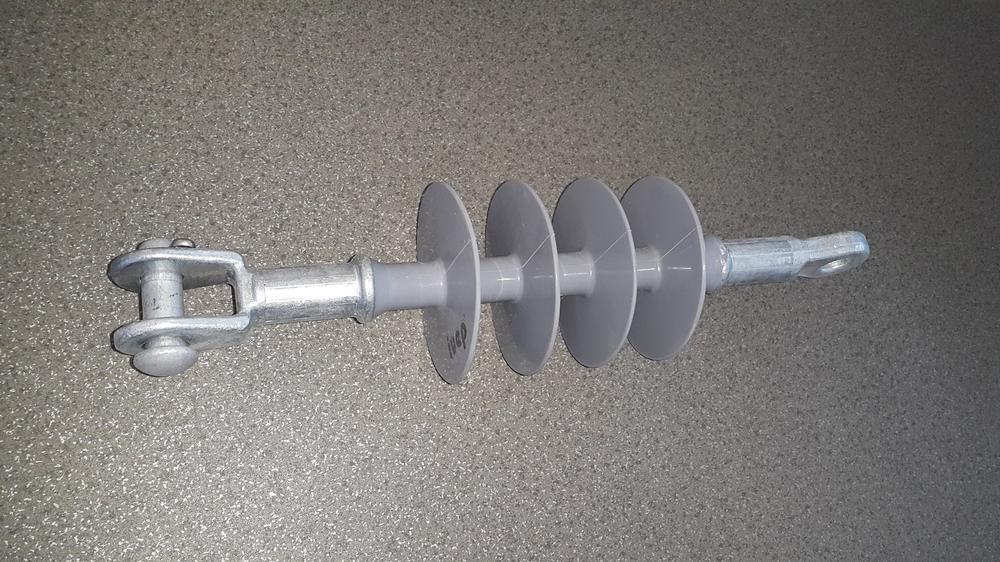

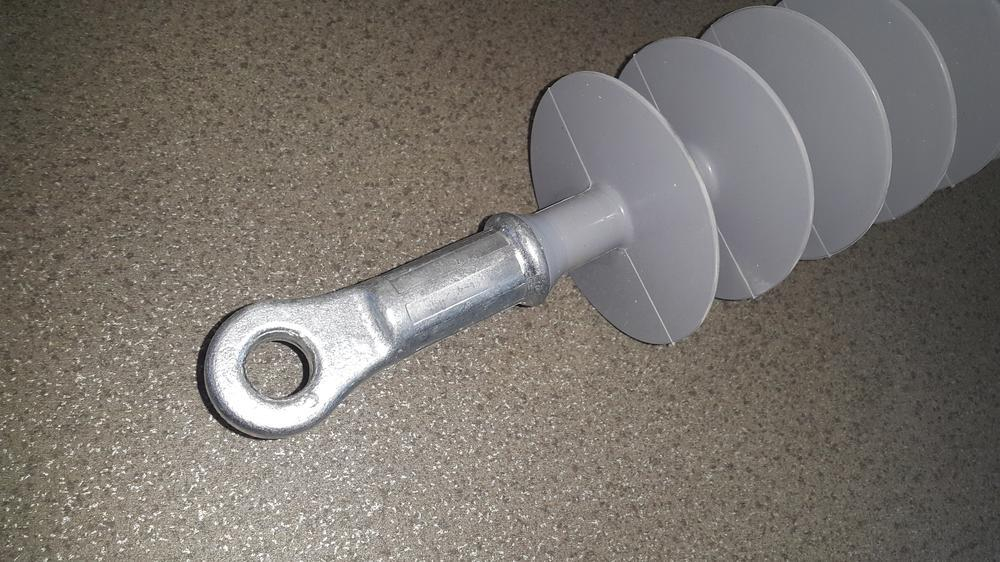

Line tensile composite insulator TENAX FXB-24/70-2

Insulator for outdoor use in AC overhead lines for voltage up to 25 kV. Main advantages are low weight, outstanding dielectric strength and extreme mechanical endurance.

The TENAX FXB tensile composite insulators are used for mechanical fastening and electrical isulation of MV conductors.

Request product

Download 3D model

Technical information

Type

TENAX FXB-24/70-2
Rated current

25 kV
Insulation material

silicone rubber
Color of insulator (upon request)

red/grey
Creepage distance

391 mm
Nominal tensile strength

70 kN
Nominal torsional strength

50 N/m
Rated lightning impulse withstand voltage 1,2/50 μs

126 kV
Rated 1 minute power-frequency withstand voltage in dry and wet conditions

57 kV
