Tension, post and supporting line insulators

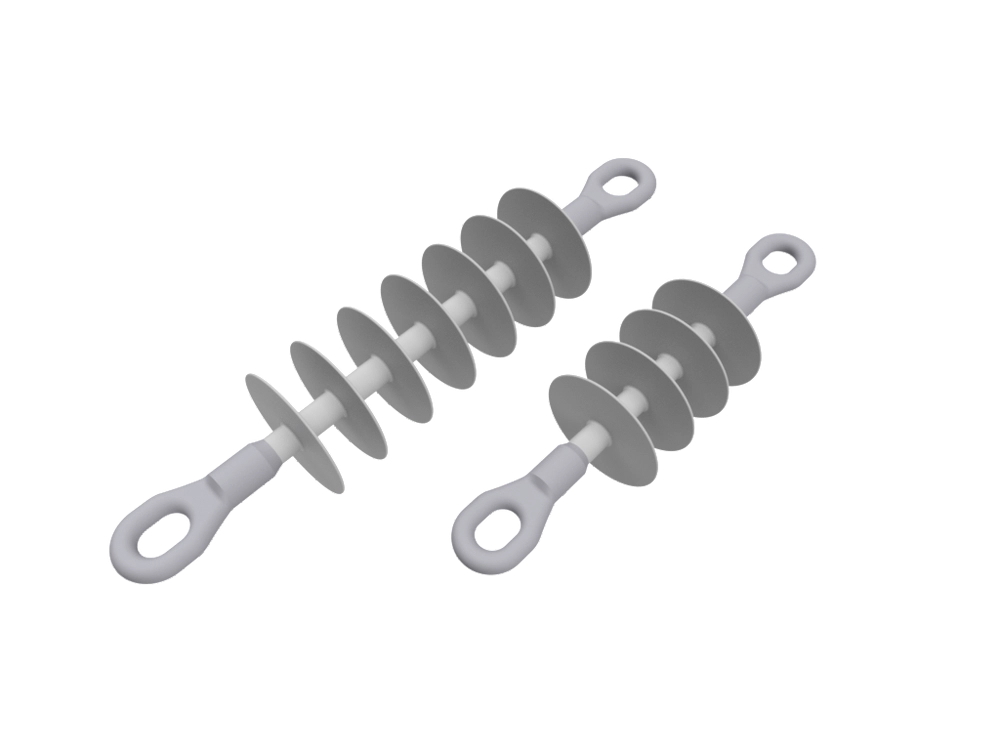

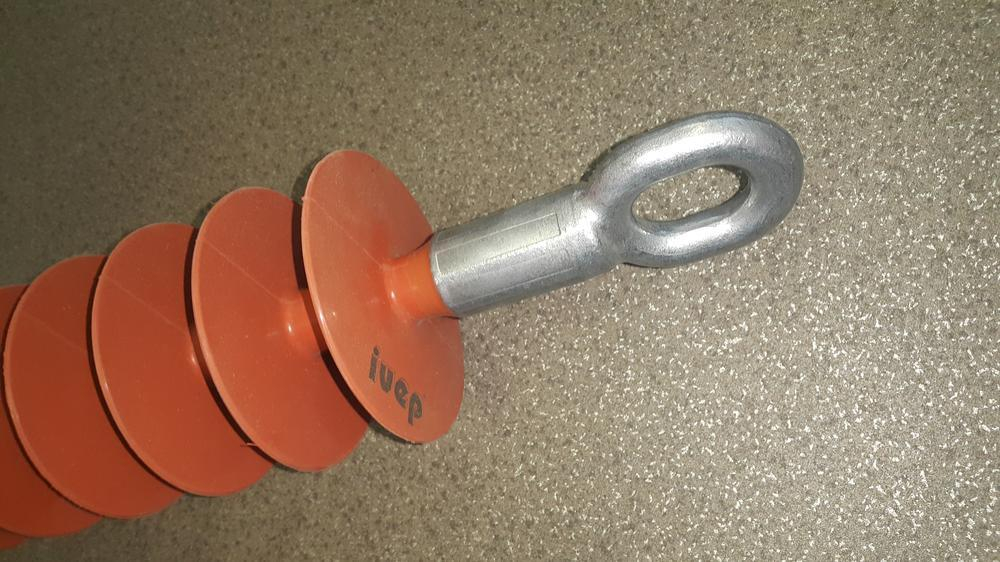

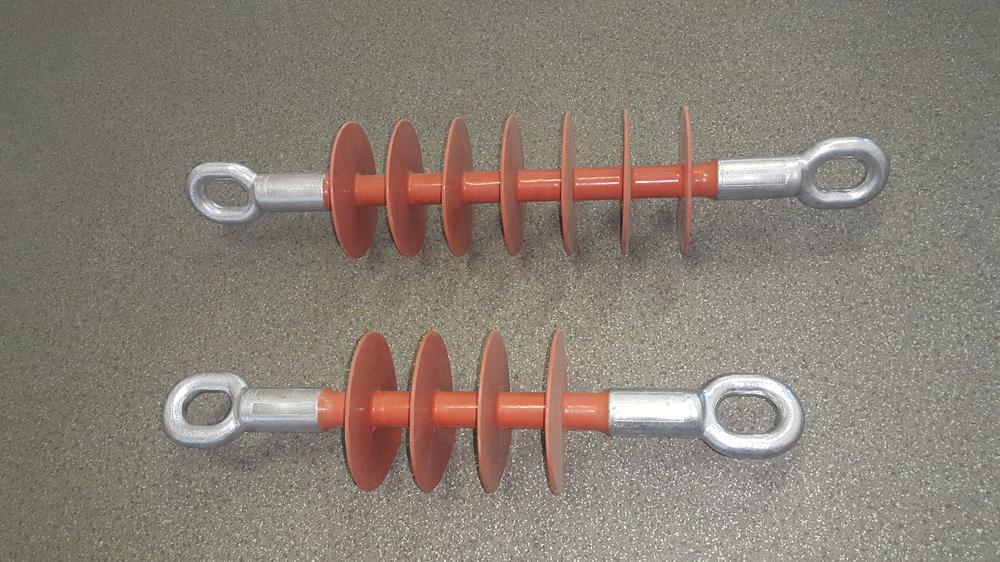

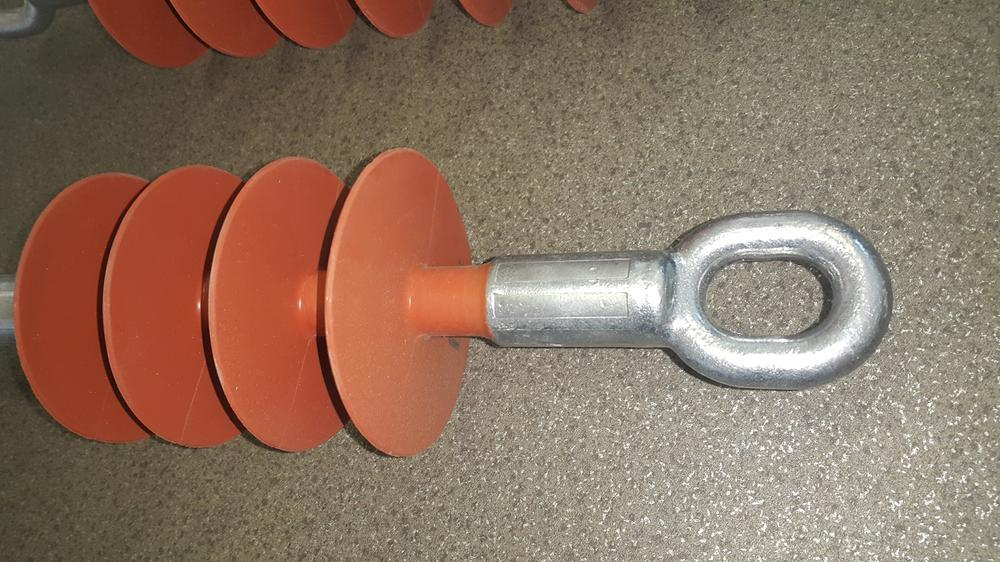

Line tensile composite insulator TENAX FXB-24/70-xxx

Insulator for outdoor use in AC overhead lines for voltage up to 25 kV. Main advantages are low weight, outstanding dielectric strength and extreme mechanical endurance.

The TENAX FXB tensile composite insulators are used for mechanical fastening and electrical isulation of MV conductors.

Request product
Download 3D model

    Technical information

  • Type
    TENAX FXB-24/70-xxx
  • Rated current
    25 kV
  • Insulation material
    silicone rubber
  • Color of insulator (upon request)
    red/grey
  • Creepage distance
    391, 613 mm, upon request
  • Nominal tensile strength
    70 kN
  • Nominal torsional strength
    50 N/m
  • Rated lightning impulse withstand voltage 1,2/50 μs
    126, 171 kV, upon request
  • Rated 1 minute power-frequency withstand voltage in dry and wet conditions
    57, 87 kV, upon request
