MV Switchgears, secondary distribution

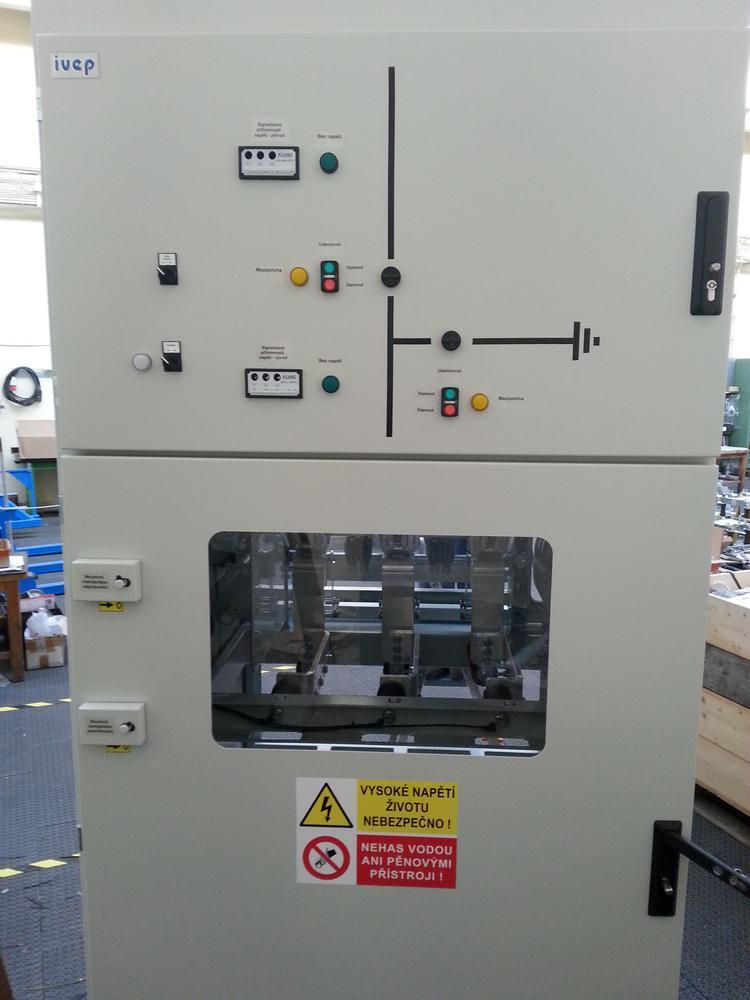

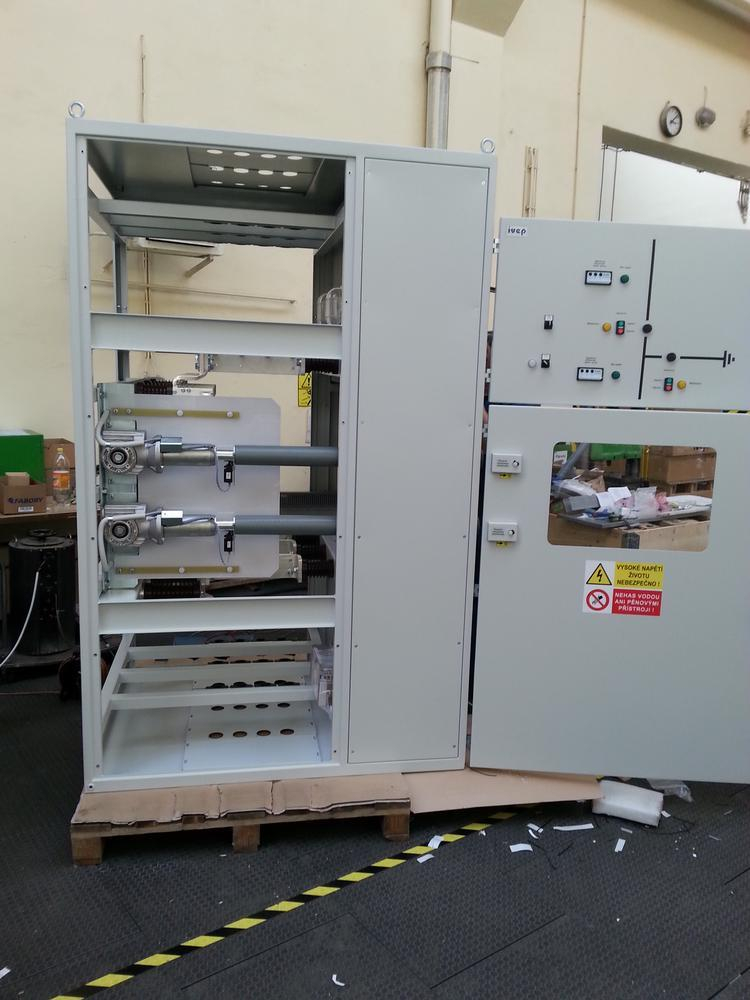

MV switchboards for secondary distribution can be produced in both indoor and outdoor design. Type MVSI and MVSO type are used for distribution of energy. Advantage is a technical solution tailored to your needs. Possibility to direct connect busbars, isolated busbars or cables.

Request product

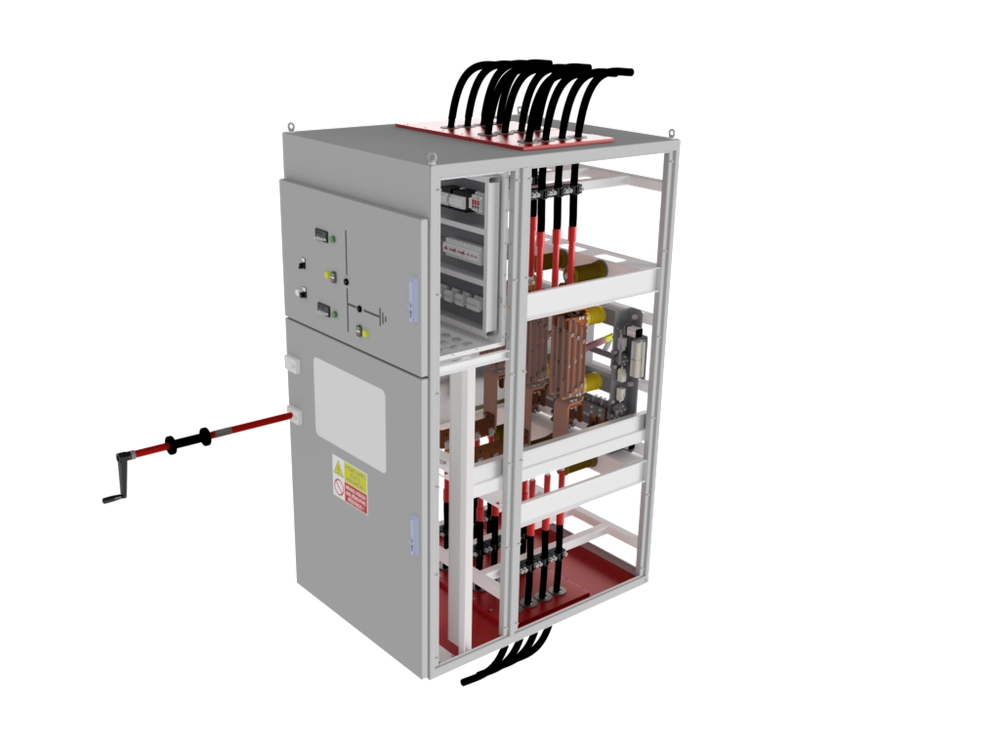

Download 3D model

    Technical information

  • Rated voltage
    3 – 36 kV
  • Rated current
    400 – 3150 A
  • Rated shorttime current 1s (3s)
    16 – 50 kA
  • Rated dynamic current
    40 – 125 kA
  • Rated frequency
    50 Hz (16 Hz, 60 Hz)
  • Minimum lifetime (years)
    40

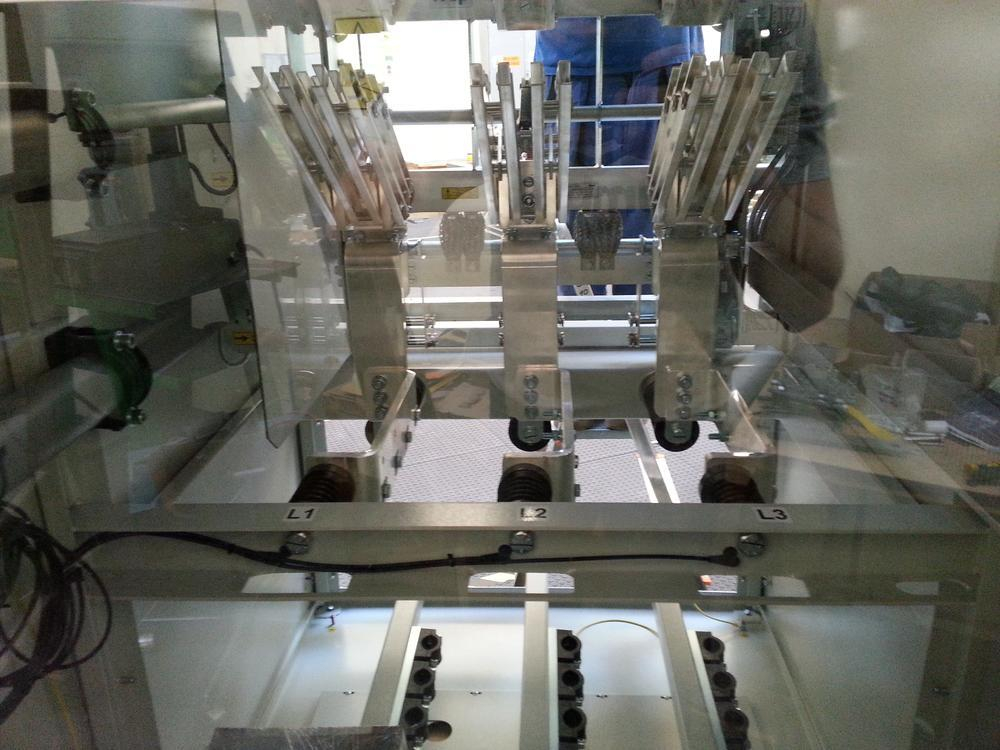

  • Circuit-Breaker type
    Vacum, or SF6

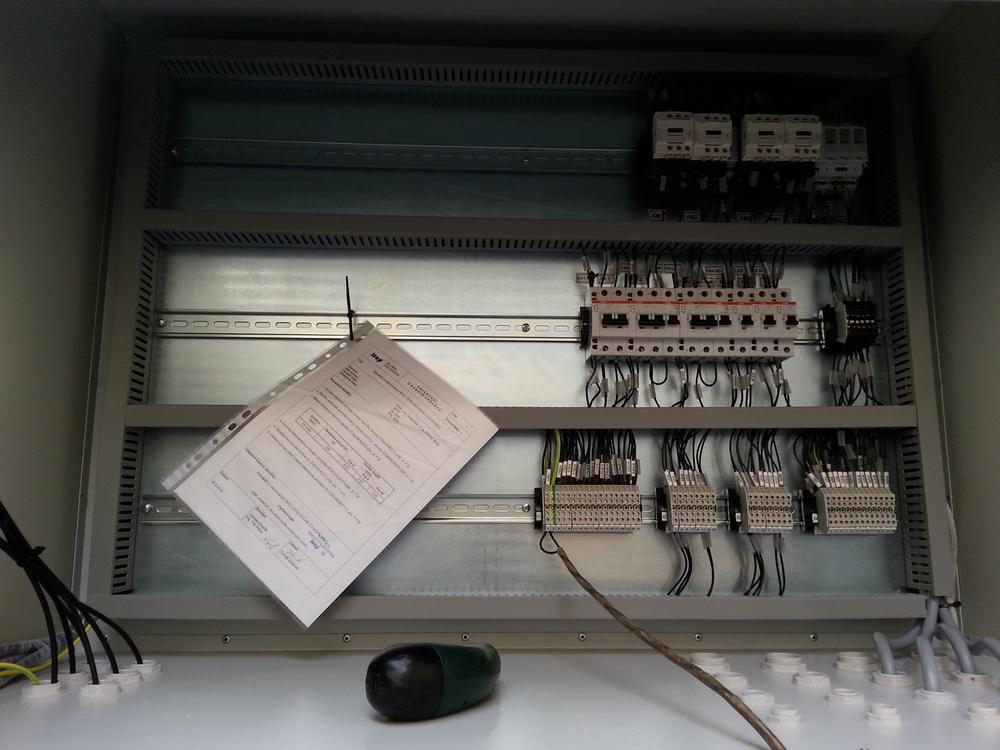

  • Control voltage
    12V DC, 24V DC, 48V DC, 60V DC, 110V DC, 220V DC, 230V AC, 400V AC

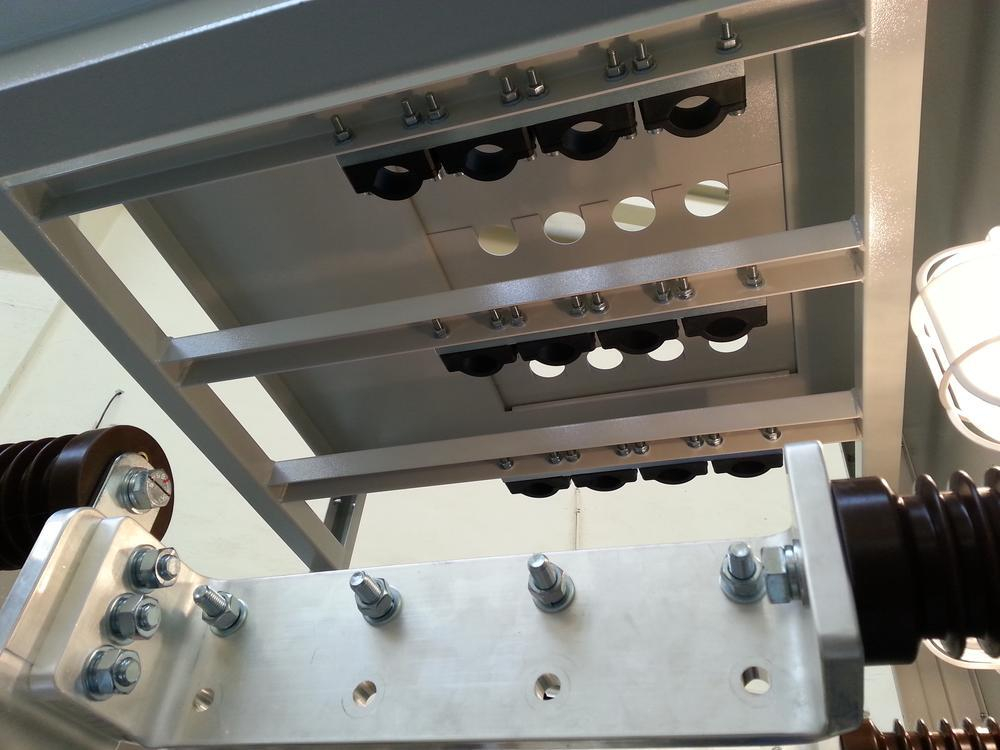

  • Insulators type
    Epoxy resin
  • Class
    LSC 1, LSC2, A, B
  • Covering
    IP4x, IP54 (outdoor design)
  • Minimum ambient temperature
    up to - 40 °C
  • Maximum ambient temperature
    up to + 60 °C
