Outdoor loadbreak switches and disconnectors

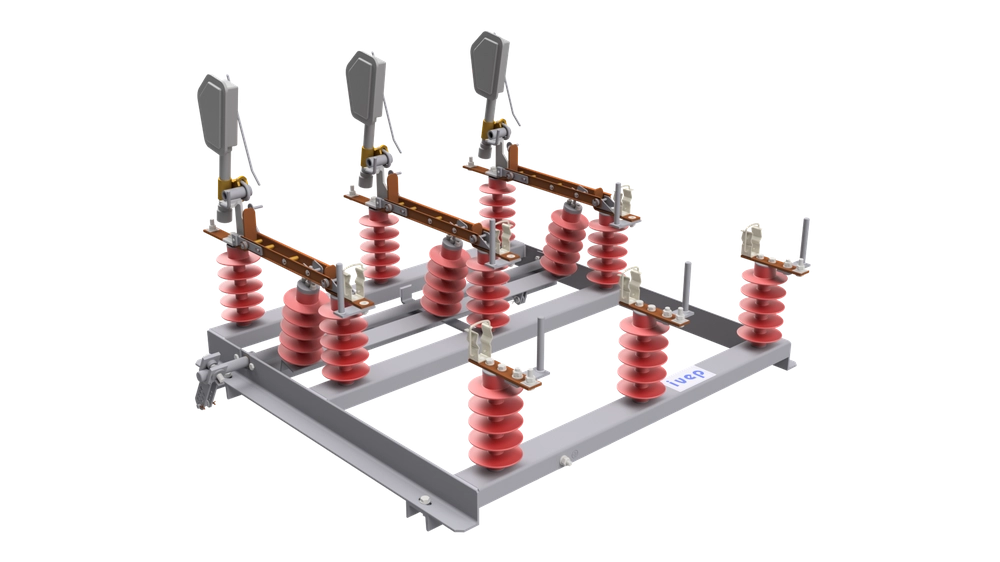

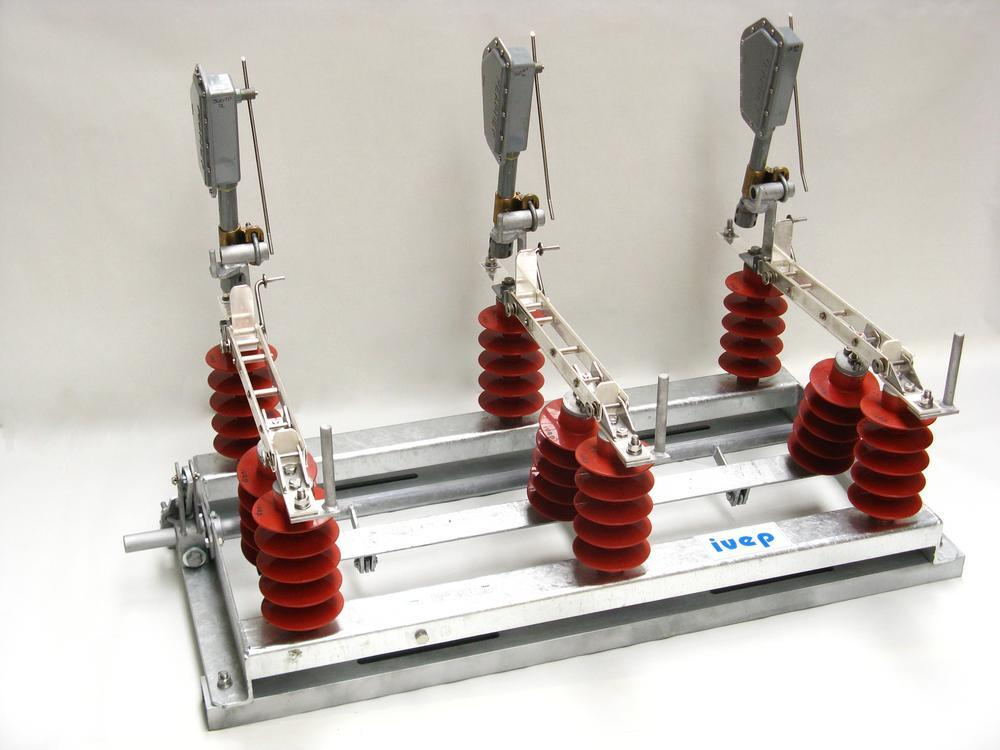

Outdoor load break switches CUB 3

The CUB  outdoor switch disconnectors are suitable for outdoor  25 kV and 38,5 kV distribution grids, to switch LV/MV distribution transformers and HV side lines of the outdoor distribution grid. The devices can be used for horizontal and vertical installation as well.

Standard warranty: 10 years

Request product
Download 3D model

    Technical information

  • Rated voltage
    25; 38,5 kV
  • Rated current
    400 - 630 A
  • Rated short-time withstand current
    20 kA /1s
  • Rated short-circuit making current
    11 kA
  • Rated mainly active load-breaking current
    400 (630) A
