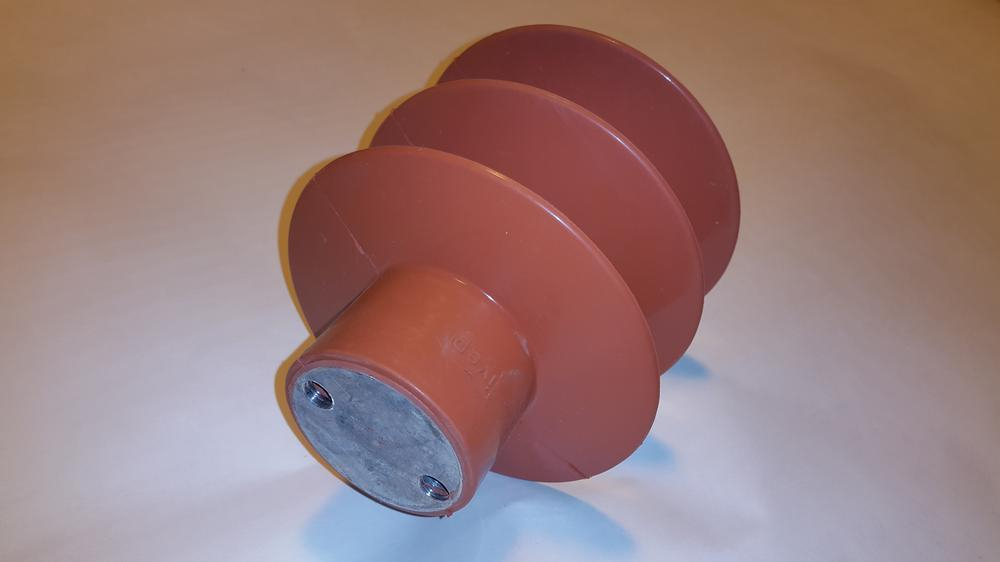

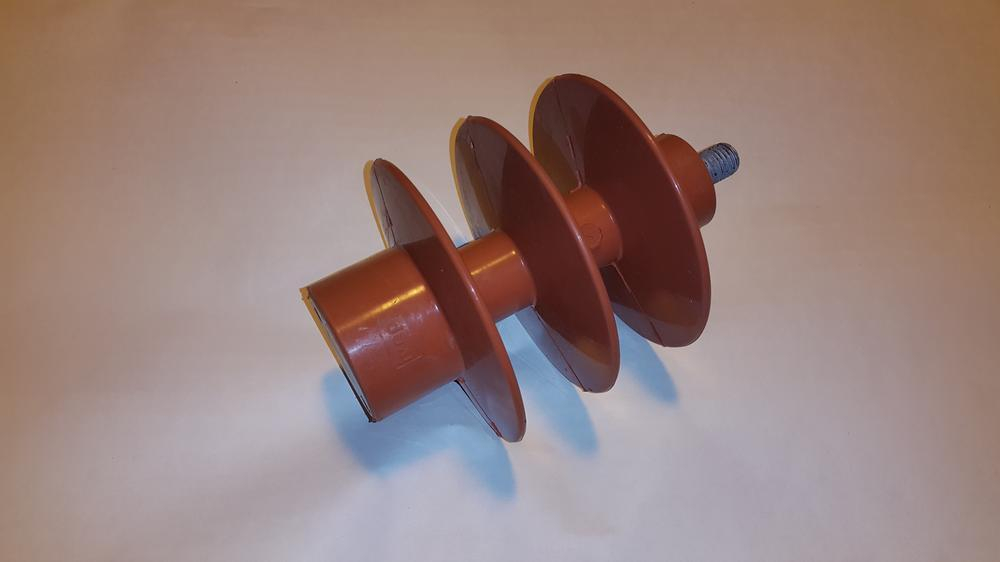

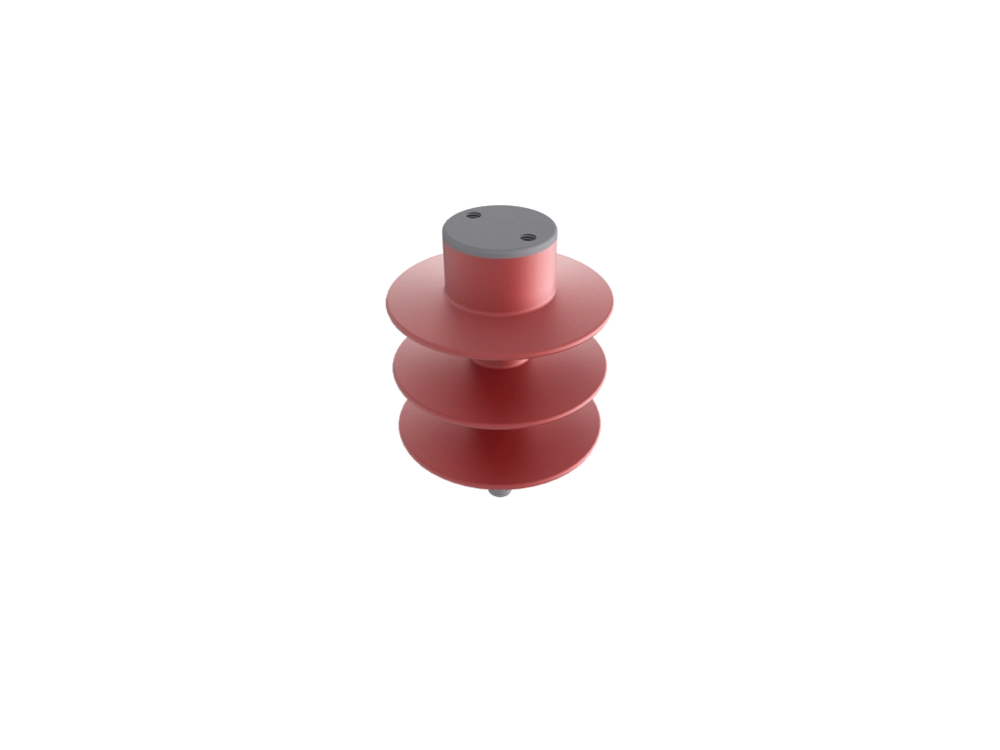

Post composite insulator 12kV - FAVEO FZY4-12/8

Insulator for outdoor use in AC switchgear with voltage up to 12 kV. Creepage distance is on the top, 31mm/kV for MV grids 12kV.

Request product
Download 3D model

    Technical information

  • Type
    FAVEO FZY4-12/8
  • Rated current
    12 kV
  • Insulation material
    silicone rubber
  • Color of insulator (upon request)
    red/grey
  • Creepage distance
    372 mm
  • Nominal tensile strength
    25 kN
  • Nominal torsional strength
    8 kN
  • Rated lightning impulse withstand voltage 1,2/50 μs
    90 kV
  • Rated 1 minute power-frequency withstand voltage in dry and wet conditions
    50 kV
