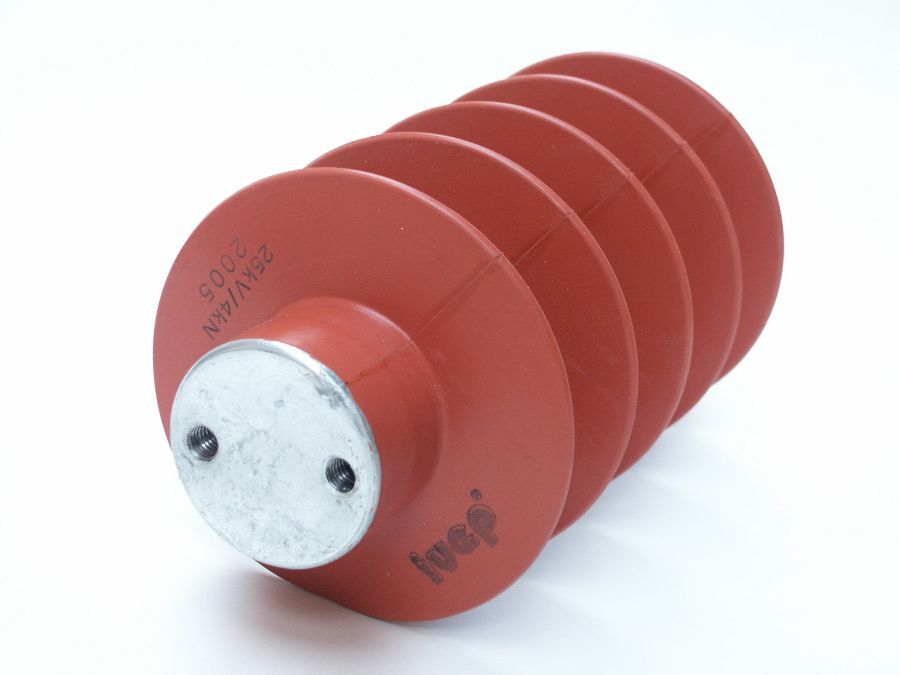

Post composite insulator 25kV - FAVEO CBSZ2-24-00

Insulator for outdoor use in AC switchgear with voltage up to 25 kV. Standard creepage distance 25mm/kV for MV grids 25kV.

Request product

Technical information

Type

FAVEO CBSZ2-24-00
Rated current

25 kV
Insulation material

silicone rubber
Color of insulator (upon request)

red/grey
Creepage distance

645 mm
Nominal tensile strength

25 kN
Nominal torsional strength

4 kN
Rated lightning impulse withstand voltage 1,2/50 μs

125 kV
Rated 1 minute power-frequency withstand voltage in dry and wet conditions

50 kV
