Tension, post and supporting line insulators

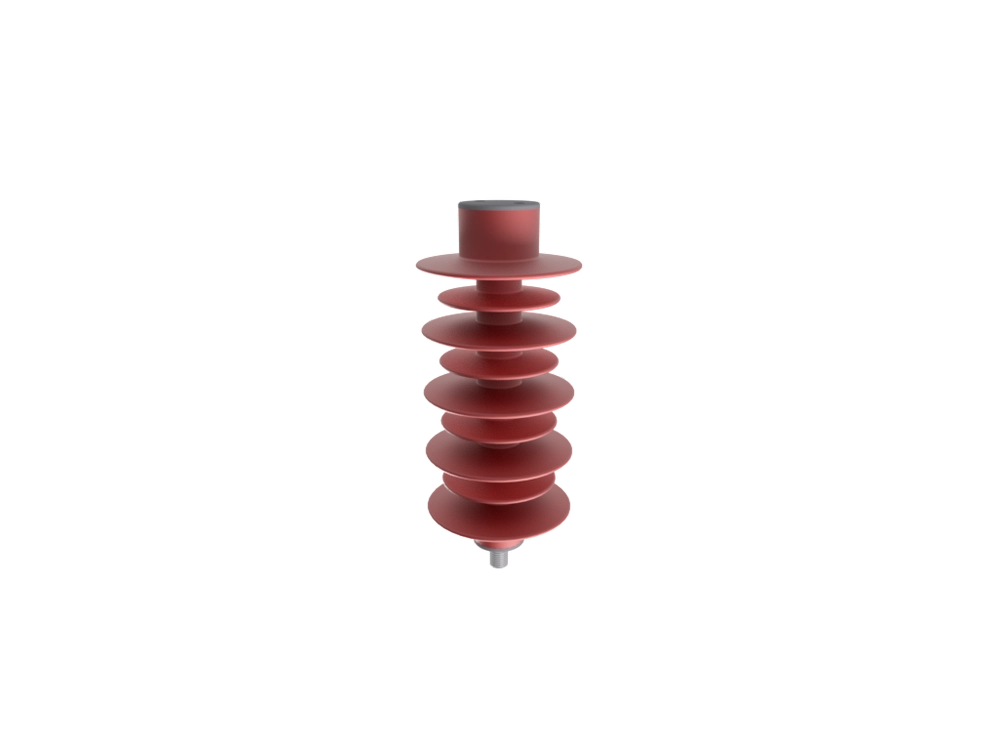

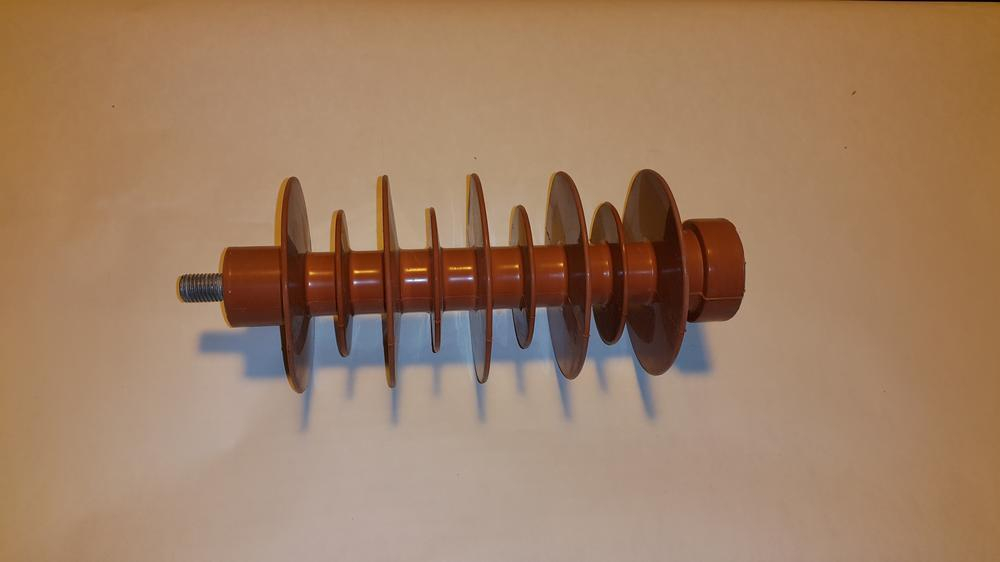

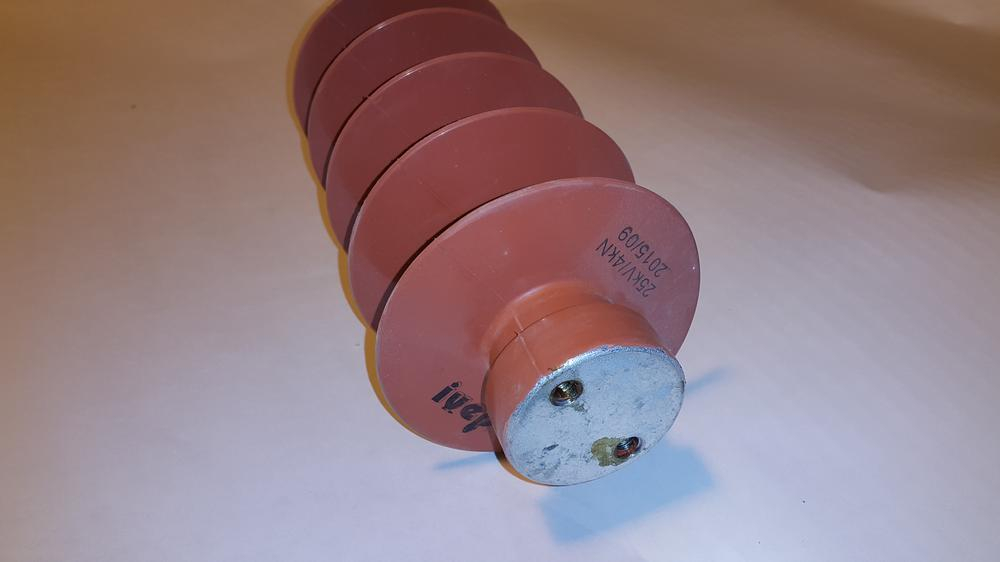

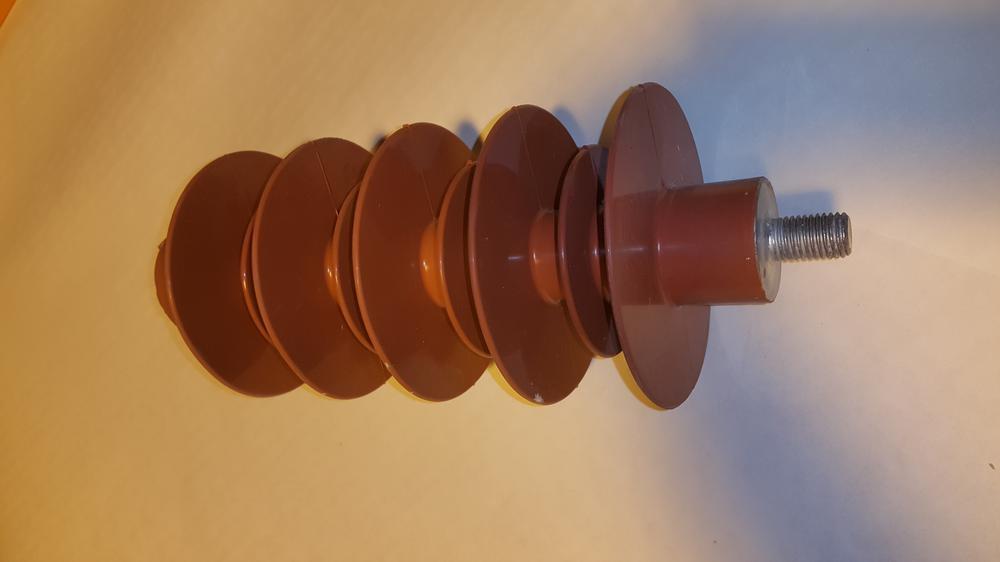

Post composite insulator 25kV - FAVEO FZY 3-25-4

Insulator for outdoor use in AC switchgear with voltage up to 25 kV. Extended creepage distance 31mm/kV for MV grids 25kV. Suitable for environment with high degree of pollution.

Request product
Download 3D model

    Technical information

  • Type
    FAVEO FZY 3-25-4
  • Rated current
    25 kV
  • Insulation material
    silicone rubber
  • Color of insulator (upon request)
    red/grey
  • Creepage distance
    775 mm
  • Nominal tensile strength
    25 kN
  • Nominal torsional strength
    4 kN
  • Rated lightning impulse withstand voltage 1,2/50 μs
    170 kV
  • Rated 1 minute power-frequency withstand voltage in dry and wet conditions
    90 kV
