Tension, post and supporting line insulators

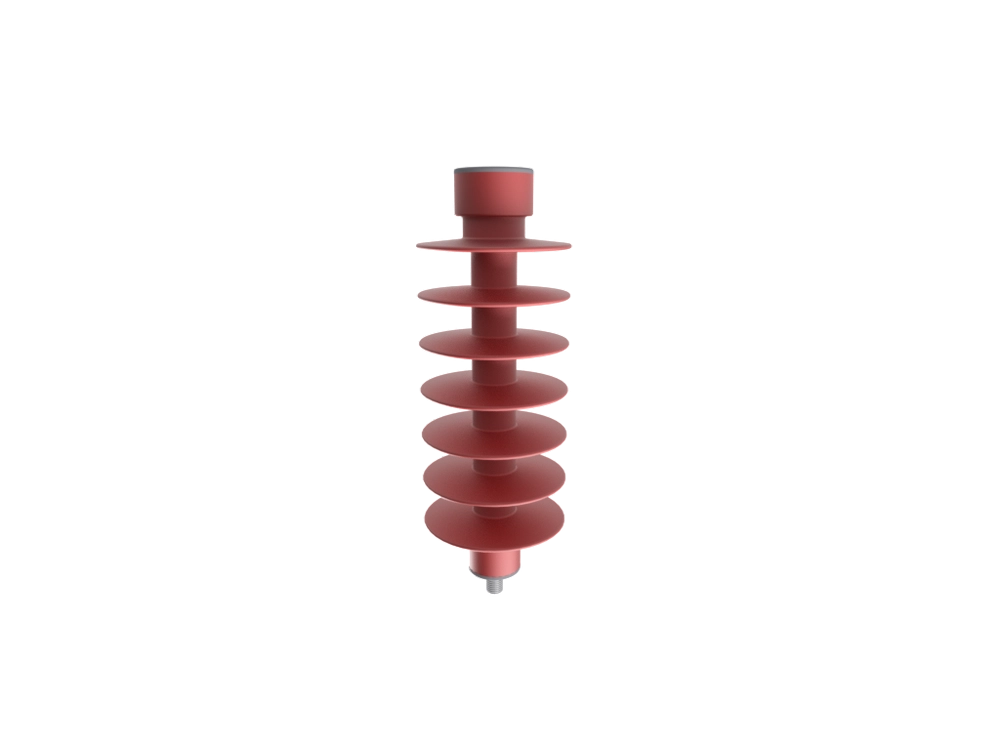

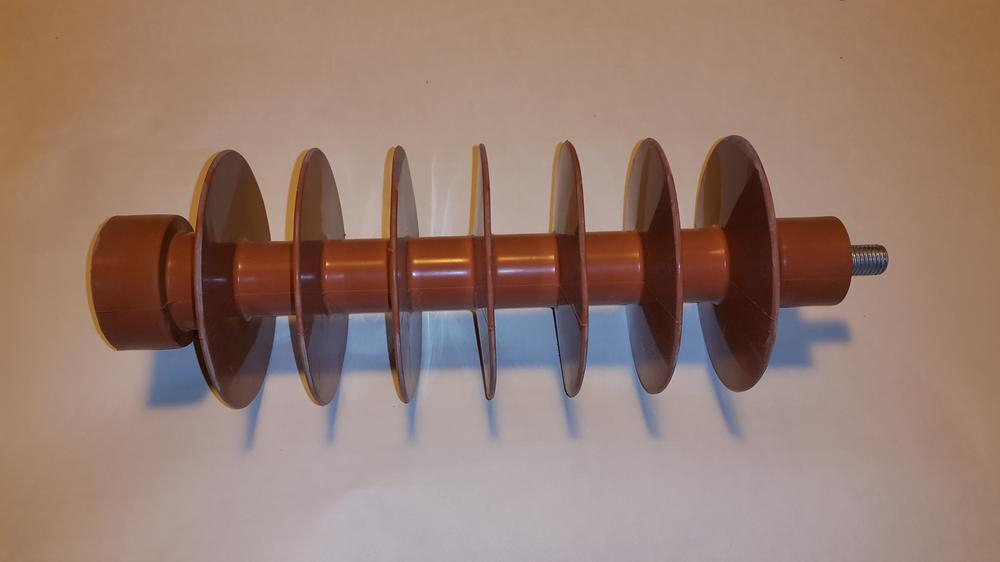

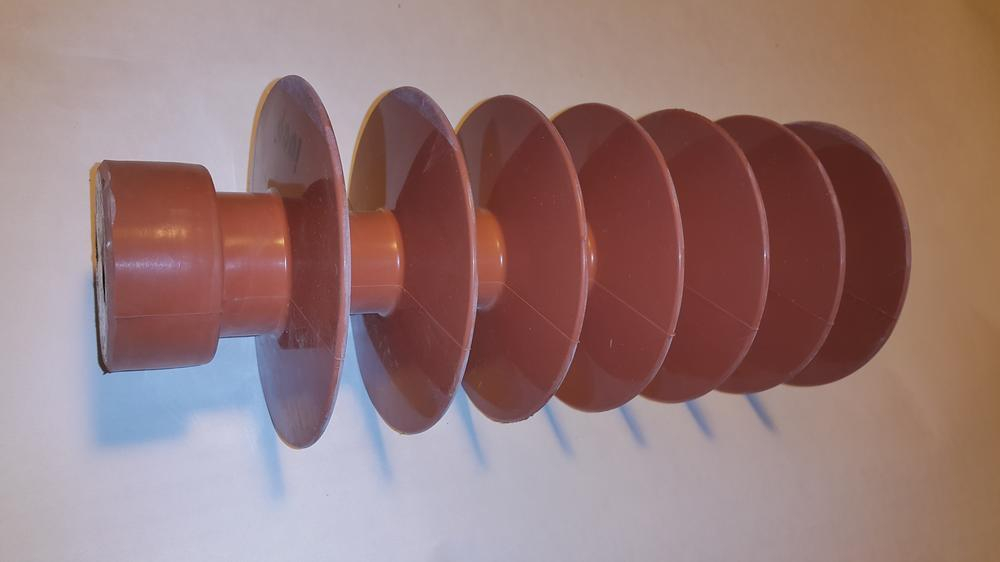

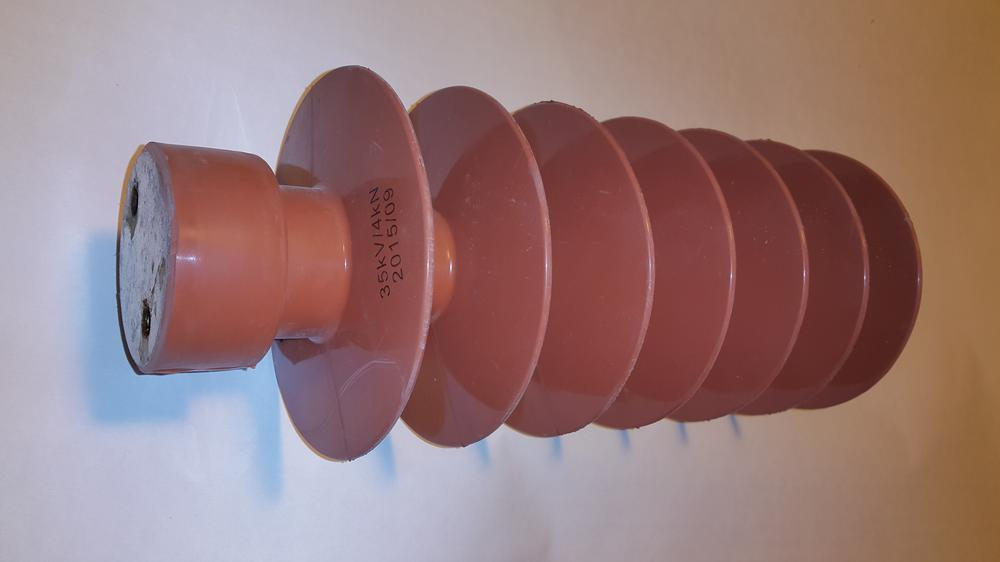

Post composite insulator 36kV - FAVEO FZY2-35/4

Insulator for outdoor use in AC switchgear with voltage up to 38,5 kV. Standard creepage distance 26mm/kV for MV grids 36kV.

Request product
Download 3D model

    Technical information

  • Type
    FAVEO FZY2-35/4
  • Rated current
    36 kV
  • Insulation material
    silicone rubber
  • Color of insulator (upon request)
    red/grey
  • Creepage distance
    950 mm
  • Nominal tensile strength
    25 kN
  • Nominal torsional strength
    4 kN
  • Rated lightning impulse withstand voltage 1,2/50 μs
    230 kV
  • Rated 1 minute power-frequency withstand voltage in dry and wet conditions
    95 kV
