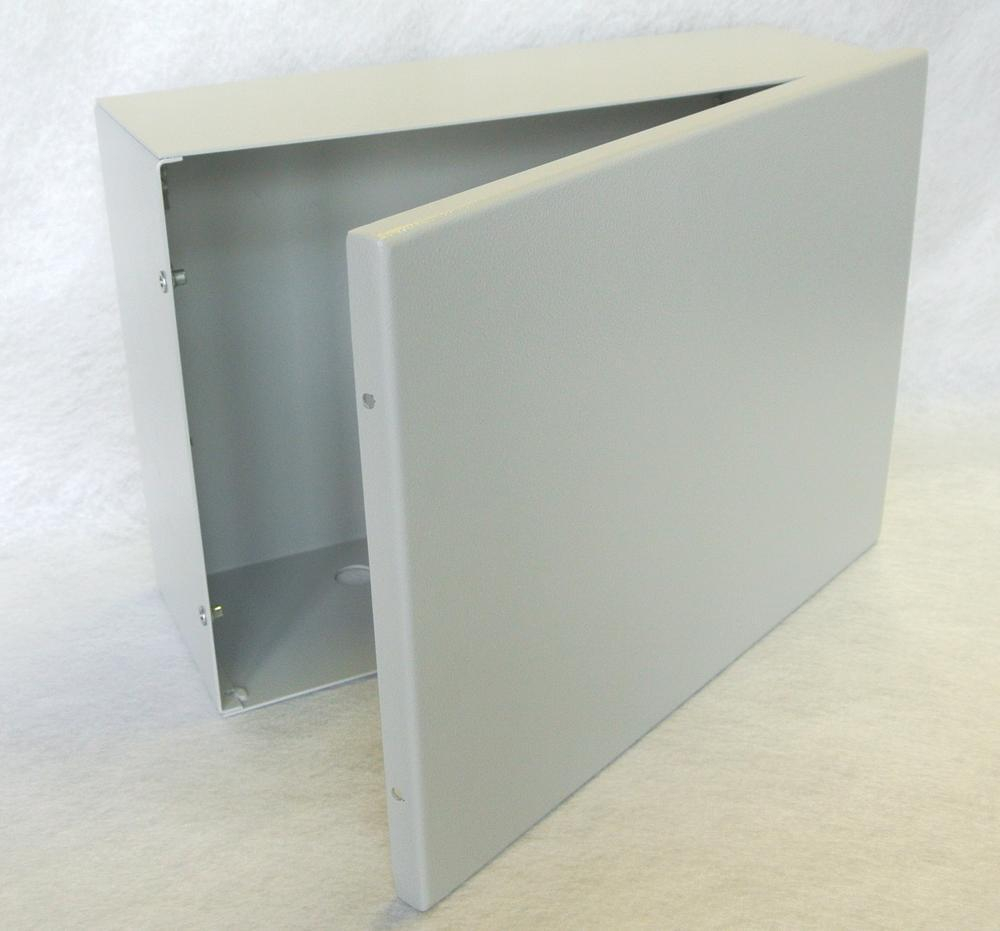

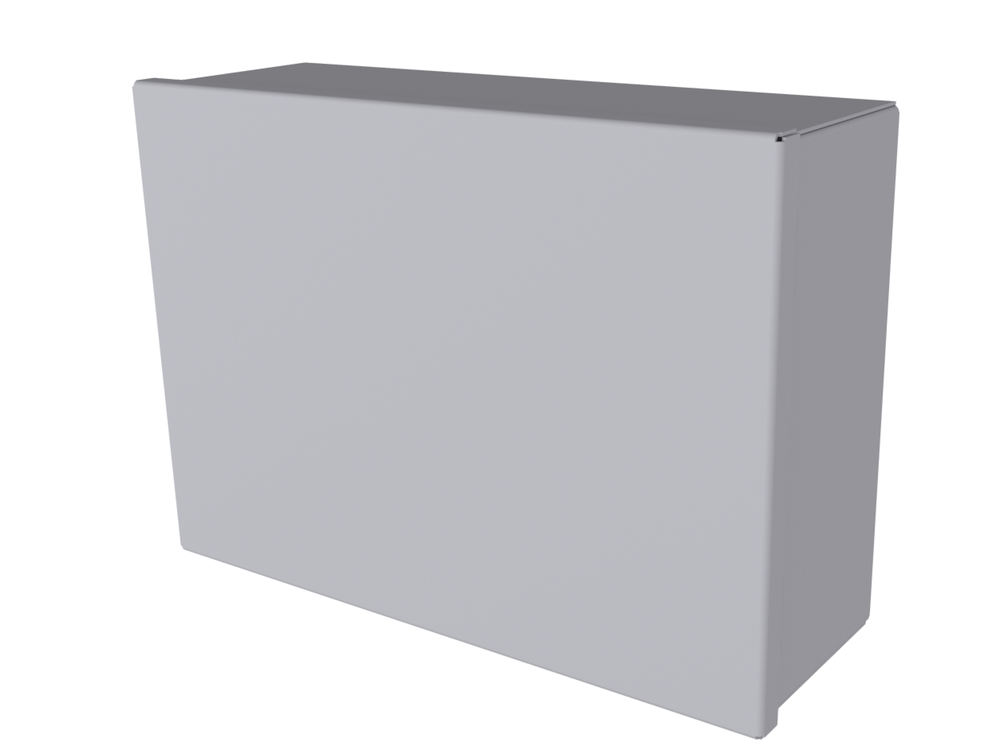

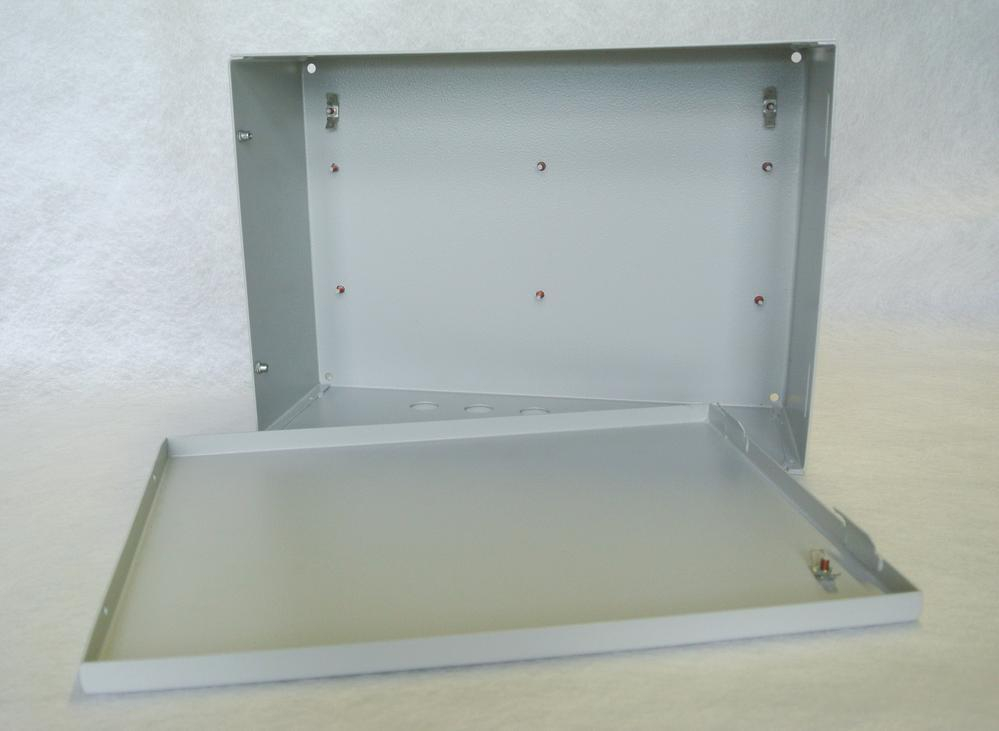

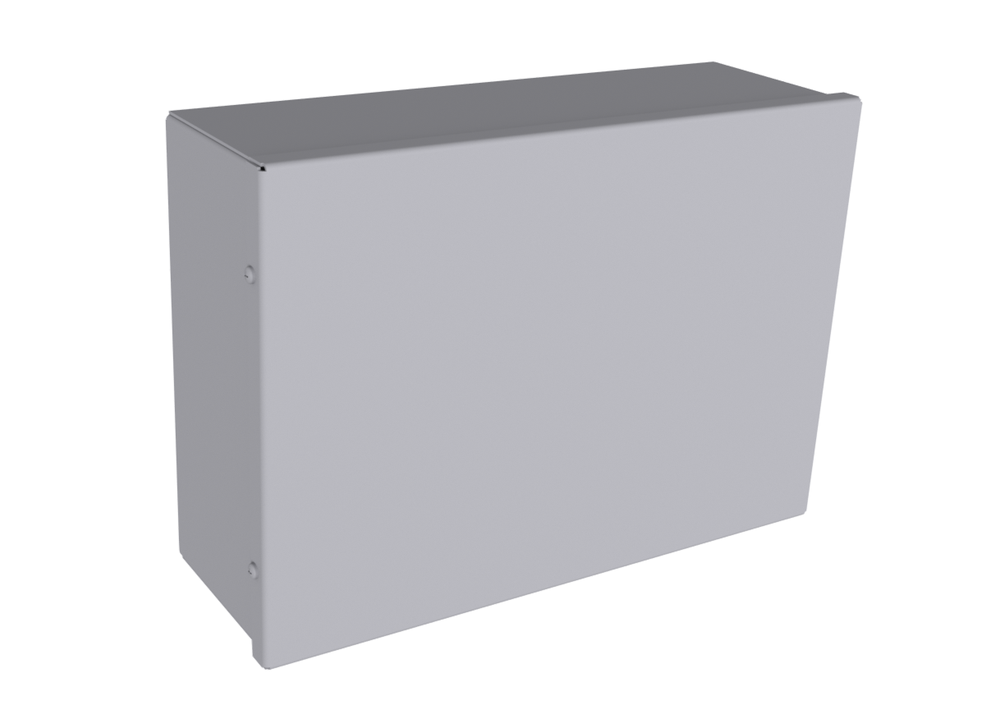

Steel-sheet cabinet for general indoor use

This steel-sheet cabinet (enclosure) for general use and indoor mounting is designed for mounting LV equipment and devices, communication and network-based equipment. Also for the installation of IT equipment, installation of structured cabling, installation of pneumatic and mechanical systems and for other applications where protection degree in excess of IP 30 is not required.

Request product
Download 3D model

    Technical information

  • Maximum ambient temperature
    up to + 60 °C
  • Material of the cabinet
    steel S235 JR (or upon request AISI 430, AISI 304)
  • Protection degree
    IP 30
  • Mechanical impact resistance
    IK 70
  • Sheet thickness
    1,5 mm
  • Surface finish
    powder coating - colour shade as per RAL colours (grey RAL7035 by default)
  • Doors
    door door suspension on sheet hinges, door locking using two M4 screws
