Air insulated LV, MV switchgears, Generator switchgears, Transient cabinets

Transient switchgears, interconnection cabinets

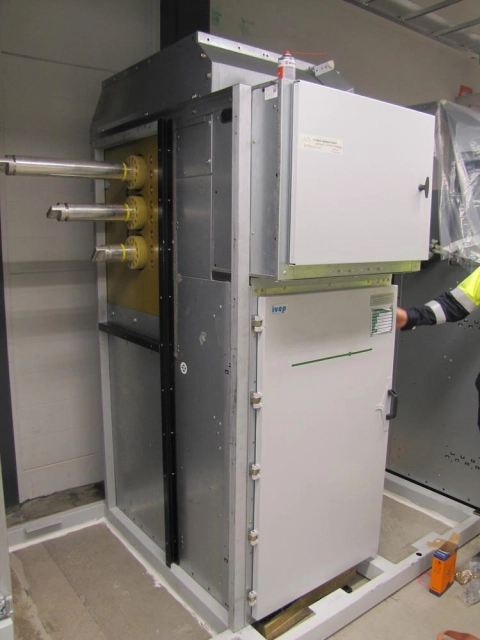

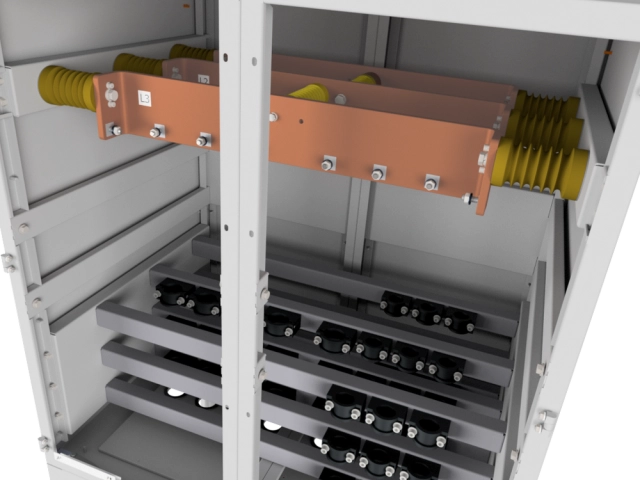

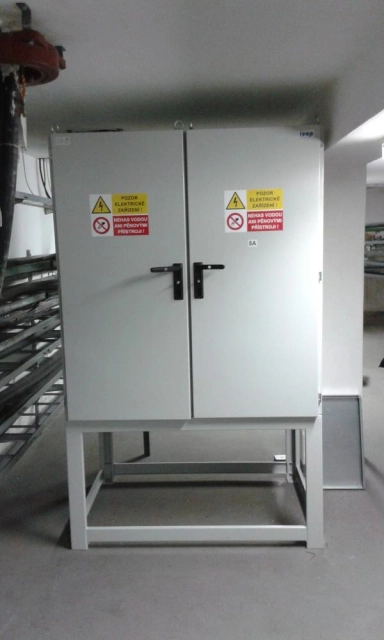

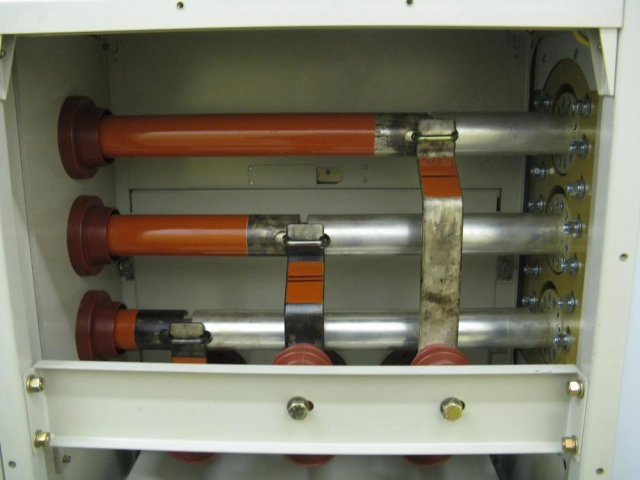

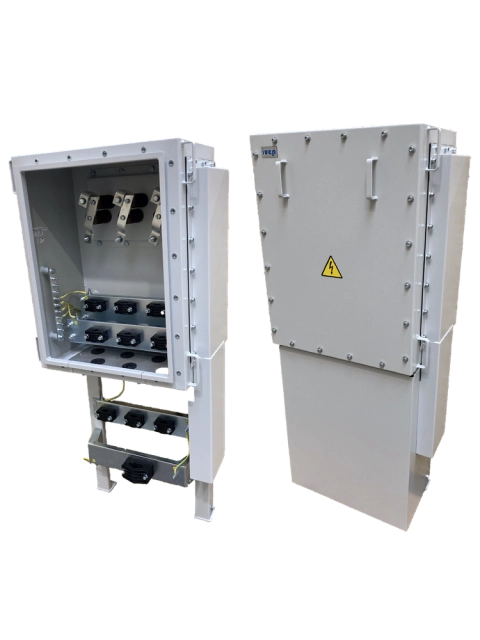

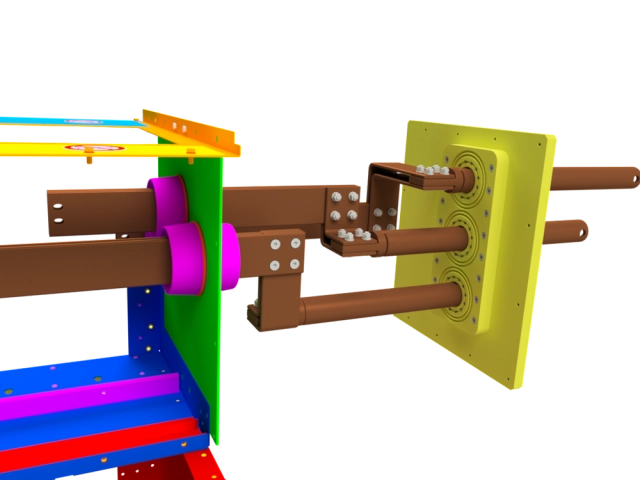

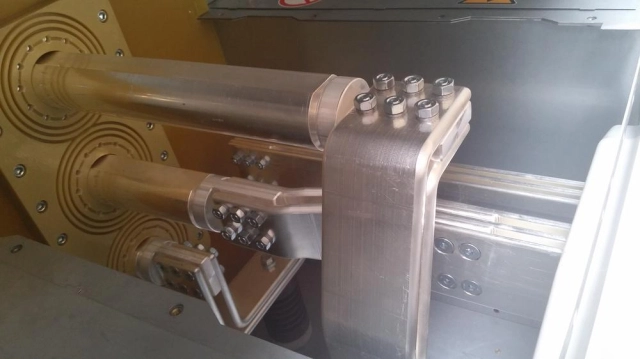

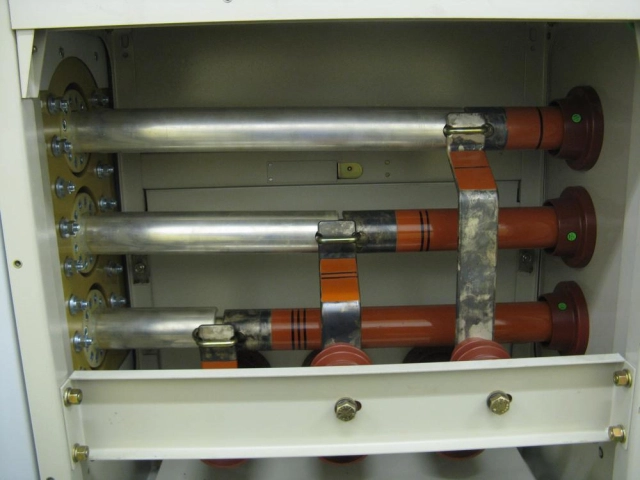

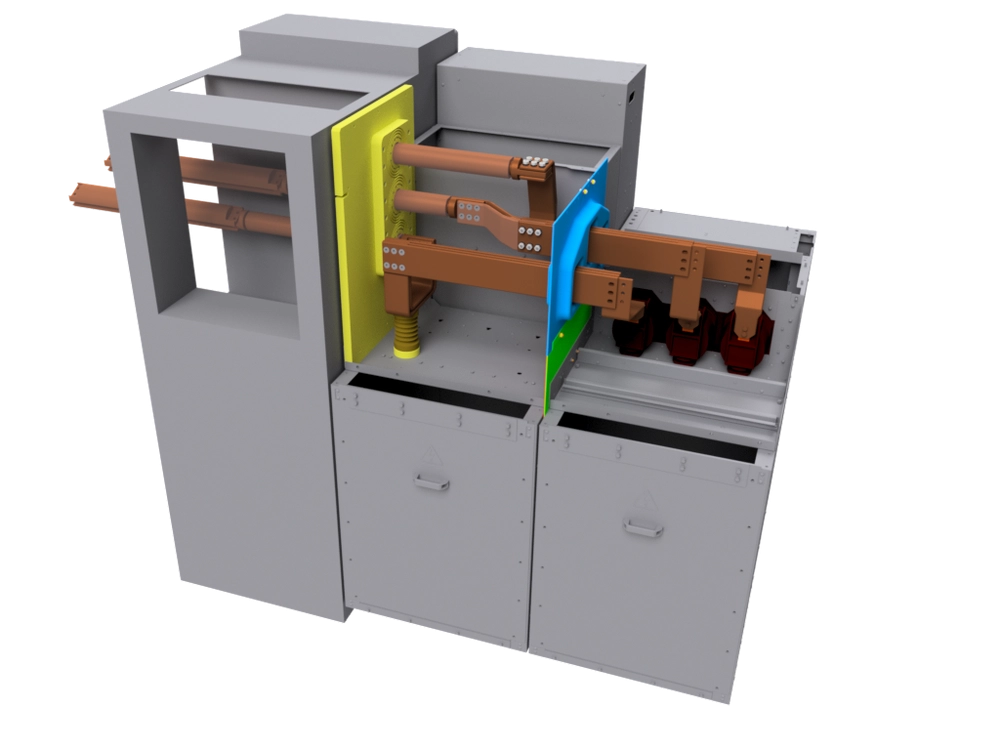

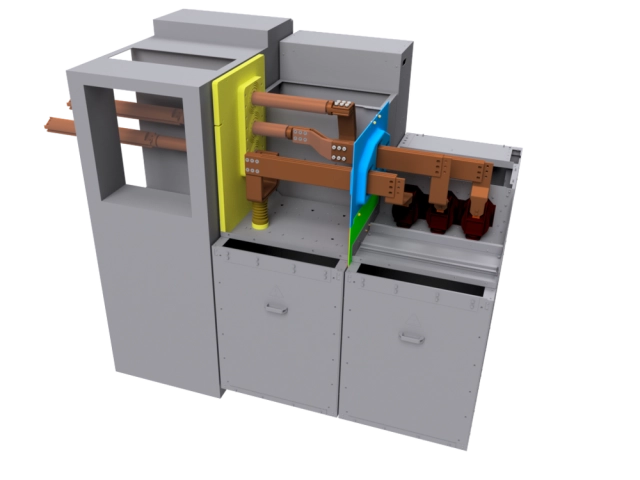

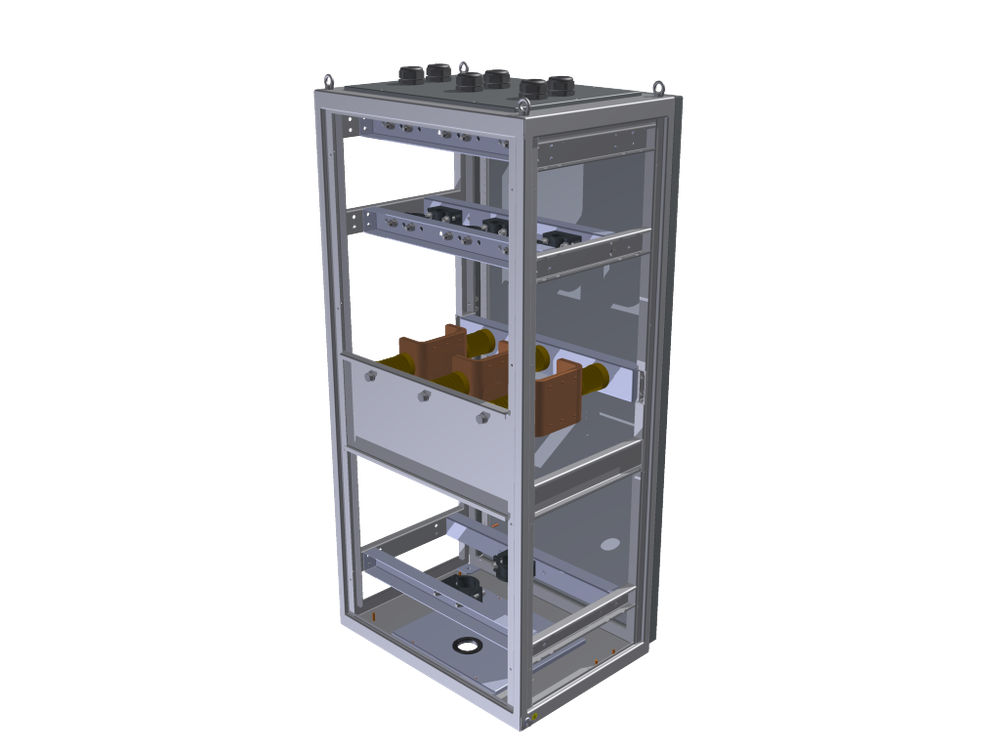

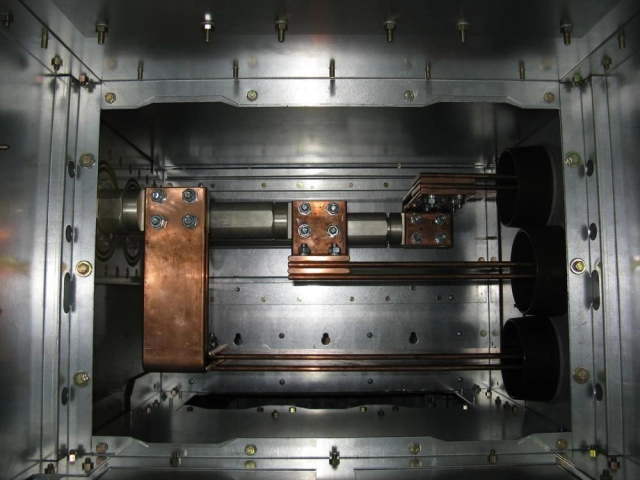

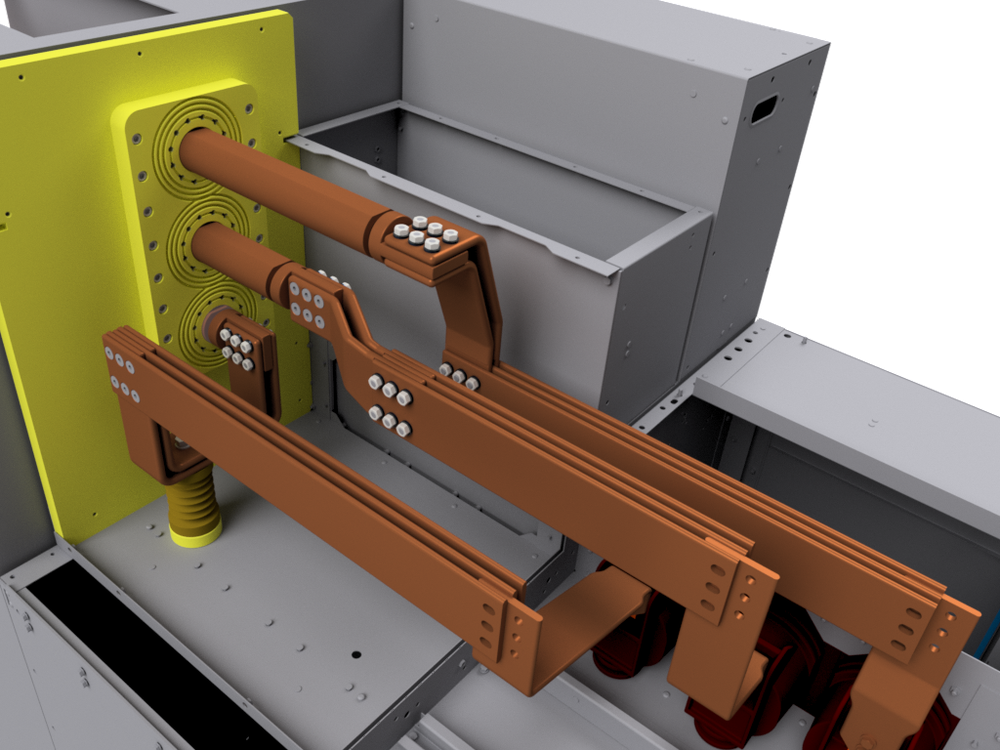

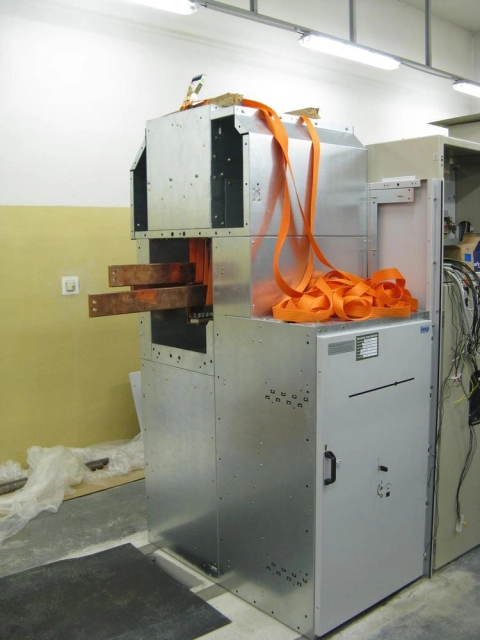

Transient cabinets are used wherever high-voltage lines, cables, or busbars are to be connected together. Everything is built into the enclosure with required cover and resistance.

Request product
Download 3D model

    Technical information

  • Rated voltage
    1 – 36 kV
  • Rated current
    630 – 8.000 A
  • Rated shorttime current 1s (3s)
    20 – 100 kA
  • Rated dynamic current
    50 – 250 kA
  • Rated frequency
    50 Hz (16 Hz, 60 Hz), DC
  • Minimum lifetime (years)
    40
  • Insulators type
    Epoxy resin, Fiberglass
  • Covering
    IP4x
  • Maximum ambient temperature
    up to + 60 °C
